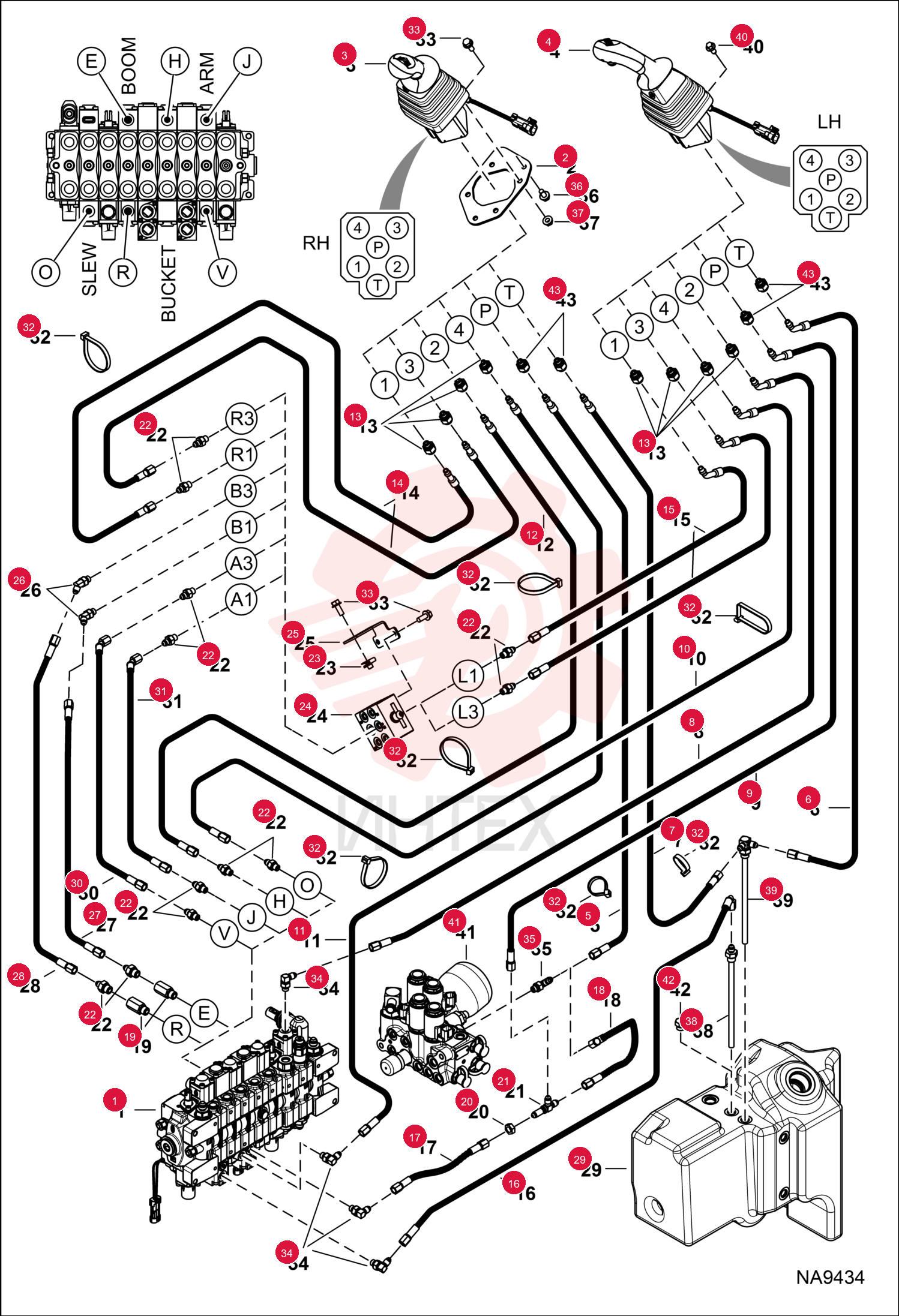

VALVE, CONTROL 7029611 (1)

VALVE, CONTROL 7029611 (1)

VALVE, CONTROL 7029611 (1)

1 7029611

  • 7029611 - VALVE
  • CONTROL

2 7218028

  • 7218028 - PLATE

3 7024441

  • 7024441 - JOYSTICK
  • RH ASSY
  • - EH controls

4 7024440

  • 7024440 - JOYSTICK
  • LH ASSY
  • - EH controls

5 7221986

  • 7221986 - HOSE
  • HYD

6 7221987

  • 7221987 - HOSE
  • HYD ASSY

7 7222467

  • 7222467 - HOSE
  • HYD ASSY

8 7222468

  • 7222468 - HOSE
  • HYD ASSY

9 7222469

  • 7222469 - HOSE
  • HYD ASSY

10 7222475

  • 7222475 - HOSE
  • HYD

11 7222476

  • 7222476 - HOSE
  • HYD

12 7222477

  • 7222477 - HOSE
  • HYD

13 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

14 78K4

  • 78K4 - O'RING

15 7011053

  • 7011053 - CLIP

16 7344615

  • 7344615 - CAP PLASTIC

17 7221982

  • 7221982 - HOSE
  • HYD

18 7221984

  • 7221984 - HOSE
  • HYD

19 7240017

  • 7240017 - HOSE
  • HYD ASSY
  • Use W/Ref. 38 - if equipped

20 7238571

  • 7238571 - HOSE
  • HYD ASSY

21 7238576

  • 7238576 - HOSE
  • HYD ASSY

22 7012494

  • 7012494 - ORIFICE

23 86F3

  • 86F3 - NUT 10

24 91K3

  • 91K3 - TEE

25 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR

26 6676169

  • 6676169 - NUT

27 7193055

  • 7193055 - VALVE
  • JPS

28 7238401

  • 7238401 - BRACKET

29 18KB0404

  • 18KB0404 - FITTING
  • HYD ELBOW

30 7222473

  • 7222473 - HOSE
  • HYD

31 7222471

  • 7222471 - HOSE
  • HYD

32 7221862

  • 7221862 - TANK
  • HYD

33 7222472

  • 7222472 - HOSE
  • HYD

34 7222474

  • 7222474 - HOSE
  • HYD

35 6624289

  • 6624289 - STRAP
  • TIE

36 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

37 17KB0404

  • 17KB0404 - FTG HYD ELBOW 90

38 21KB0404

  • 21KB0404 - FITTING
  • HYD TEE

39 29CM816

  • 29CM816 - SCREW FLGD HEX CAP

40 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

41 7223890

  • 7223890 - FITTING
  • HYD CONNECTOR
  • Use W/Ref. 16 (7240017 hose) - if equipped

42 7240072

  • 7240072 - FITTING
  • CROSS

43 26GM8020

  • 26GM8020 - SCREW SELF TAPPING

44 7222969

  • 7222969 - MANIFOLD
  • HYD ASSY

45 24K5

  • 24K5 - PLUG
  • if equipped

46 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

47 78K4

  • 78K4 - O'RING

48 7011053

  • 7011053 - CLIP

49 7344615

  • 7344615 - CAP PLASTIC

50 7319693

  • 7319693 - FITTING HYDRAULIC STRAIGHT
  • EMEA only
