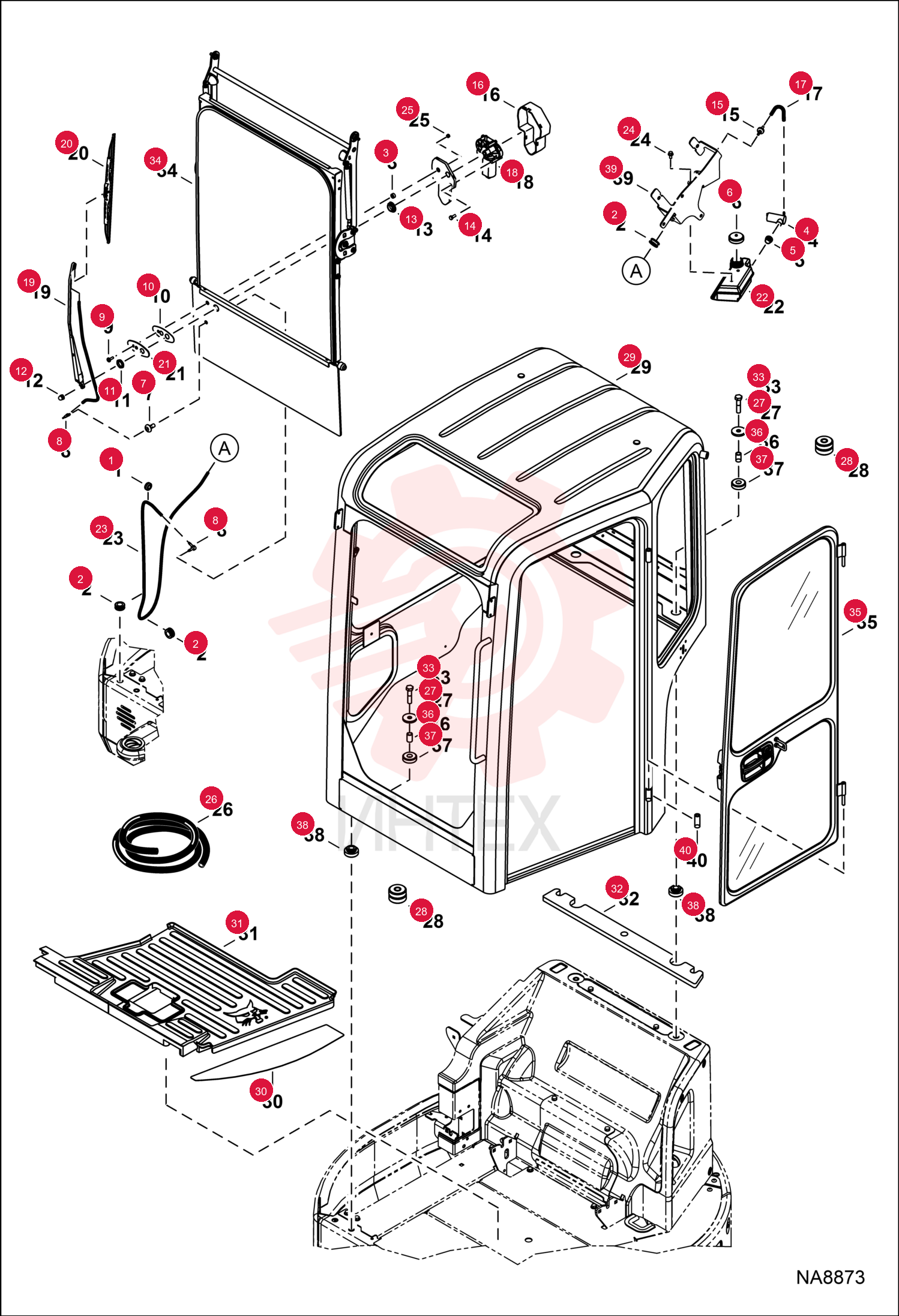

GROMMET 515069 (3)

GROMMET 515069 (3)

GROMMET 515069 (3)

1 515069

  • 515069 - GROMMET

2 6587887

  • 6587887 - GROMMET

3 6664085

  • 6664085 - BUSHING NYLON

4 6664554

  • 6664554 - PUMP
  • WIPER WASHER

5 6666766

  • 6666766 - GROMMET

6 6674993

  • 6674993 - CAP

7 6676499

  • 6676499 - GROMMET WIPER

8 6676917

  • 6676917 - ELBOW INTERIOR

9 6677837

  • 6677837 - BOLT

10 6677839

  • 6677839 - GASKET

11 6677842

  • 6677842 - NUT

12 6677843

  • 6677843 - NUT

13 6677847

  • 6677847 - GROMMET

14 6681911

  • 6681911 - SCREW

15 6682462

  • 6682462 - VALVE
  • CHECK

16 6685140

  • 6685140 - COVER

17 7008934

  • 7008934 - MOTOR
  • WIPER

18 7008936

  • 7008936 - ARM
  • WIPER

19 7008937

  • 7008937 - BLADE
  • WIPER WINDOW

20 7009047

  • 7009047 - PLATE

21 7133211

  • 7133211 - TANK
  • WASHER

22 35C408

  • 35C408 - BOLT

23 4DM5

  • 4DM5 - NUT HEXAGON M5

24 6708310

  • 6708310 - HOSE
  • BULK/FT 100
  • clear - 0.154" ID - sold per foot

25 6805244

  • 6805244 - WASHER

26 7174043

  • 7174043 - MOUNT
  • LOAD ISOLATOR ASSY
  • Ref. 36-38 - includes 1 assy

27 7241172

  • 7241172 - CAB
  • W/A

28 7194930

  • 7194930 - TREAD
  • SAFETY

29 7232439

  • 7232439 - MAT
  • FLOOR
  • cab

30 7202690

  • 7202690 - SEAL
  • FOAM

31 7CM1460

  • 7CM1460 - SCREW

32 7157151

  • 7157151 - DOOR
  • CAB ASSY

33 6719341

  • 6719341 - TUBE
  • HINGE
