Bobcat
/
E25
/

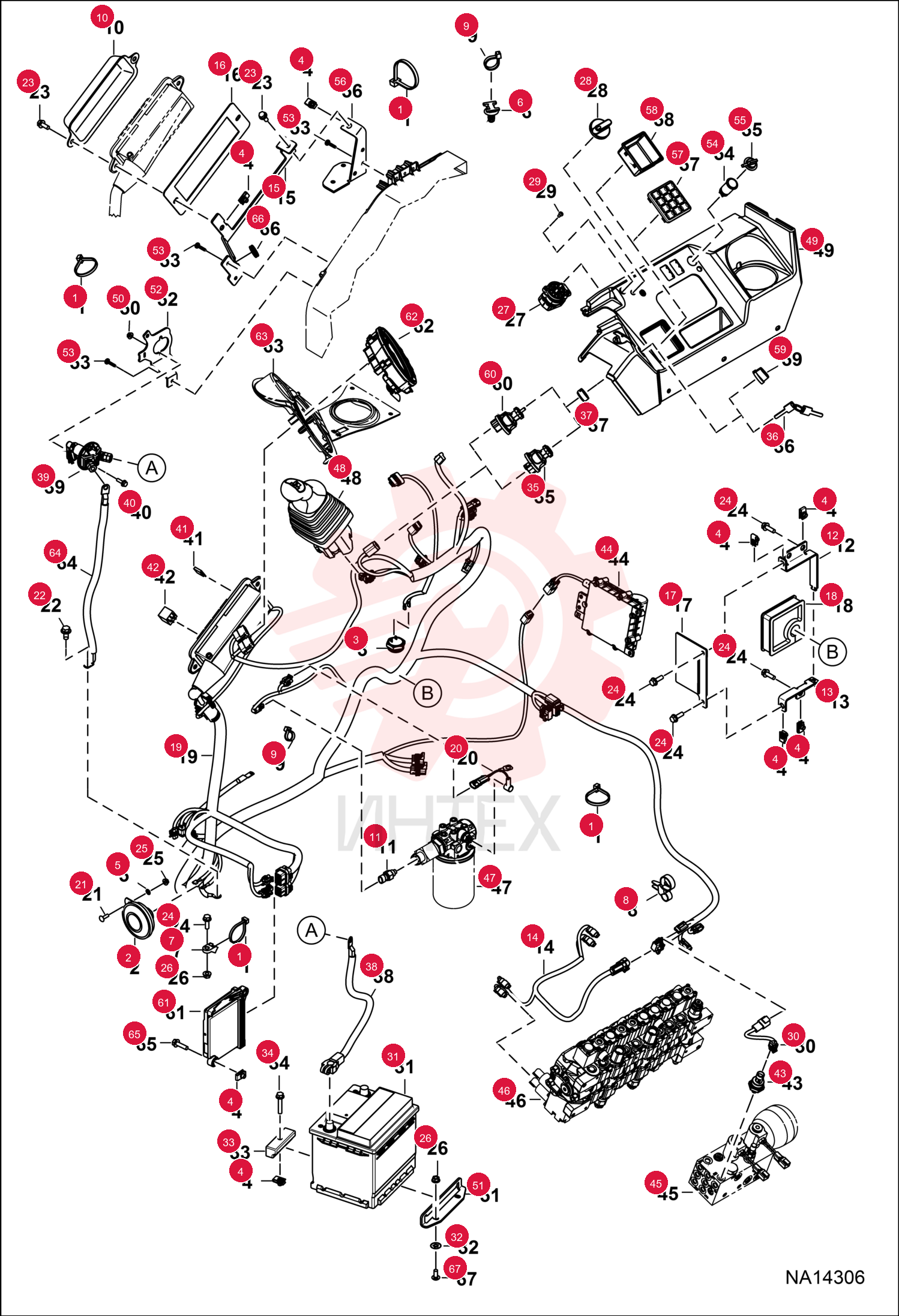

STRAP, TIE 6624289 (7)

STRAP, TIE 6624289 (7)

STRAP, TIE 6624289 (7)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6671106

  • 6671106 - ALARM

3 6675705

  • 6675705 - ALARM

4 6676169

  • 6676169 - NUT

5 6675212

  • 6675212 - RETAINER BOLT

6 7015668

  • 7015668 - MOUNT
  • STRAP TIE

7 6678667

  • 6678667 - MOUNT

8 6678668

  • 6678668 - STRAP

9 6682345

  • 6682345 - STRAP
  • TIE 8

10 6716621

  • 6716621 - COVER
  • FUSE

11 6727869

  • 6727869 - SENDER
  • HYD TEMP

12 7178918

  • 7178918 - BRACKET

13 7178919

  • 7178919 - BRACKET

14 7234504

  • 7234504 - HARNESS
  • VALVE

15 7242829

  • 7242829 - BRACKET
  • BLOCK FUSE

16 7187704

  • 7187704 - PLATE
  • SUPPORT

17 7192356

  • 7192356 - COVER
  • PLATE

18 7192357

  • 7192357 - GROMMET

19 7325028

  • 7325028 - HARNESS FRAME

20 7327783

  • 7327783 - HARNESS FRAME
  • W/RFID connector

21 7198838

  • 7198838 - HARNESS
  • SWITCH

22 28CM620

  • 28CM620 - BOLT CARRIAGE 8.8

23 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

24 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

25 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

26 43DM6

  • 43DM6 - NUT FLANGED HEX

27 43DM8

  • 43DM8 - NUT FLANGED HEX

28 7281258

  • 7281258 - CONTROL THROTTLE

29 7022367

  • 7022367 - KNOB

30 7135909

  • 7135909 - SCREW

31 7192507

  • 7192507 - HARNESS
  • JUMPER

32 7322546

  • 7322546 - HARNESS JUMPER

33 7269858

  • 7269858 - BATTERY WET 540 CCA

34 6675859

  • 6675859 - RETAINER

35 7120672

  • 7120672 - TIE DOWN

36 29CM845

  • 29CM845 - SCREW HEX FLANGE

37 6693245

  • 6693245 - SWITCH
  • IGN

38 6693241

  • 6693241 - KEY (2)

39 7000328

  • 7000328 - ADAPTER SWITCH

40 6807431

  • 6807431 - CABLE
  • NEGATIVE

41 7204459

  • 7204459 - SWITCH
  • DISCONNECT

42 7301068

  • 7301068 - HANDLE
  • SWITCH
  • W/chain

43 29CM620

  • 29CM620 - SCREW FLGD HEX CAP

44 6702444

  • 6702444 - FUSE 25A 5

45 6654806

  • 6654806 - FUSE
  • 15A

46 6625575

  • 6625575 - FUSE
  • 20A

47 6663289

  • 6663289 - FUSE
  • 5A

48 6654805

  • 6654805 - FUSE 10A

49 6679820

  • 6679820 - SWITCH
  • RELAY MAGNETIC

50 7311544

  • 7311544 - SENSOR PRESSURE

51 7307186

  • 7307186 - ACTUATOR THROTTLE

52 7204476

  • 7204476 - MANIFOLD
  • HYD ASSY

53 7188867

  • 7188867 - VALVE
  • CONTROL

54 7188836

  • 7188836 - FILTER
  • OIL HYD ASSY

55 7024441

  • 7024441 - JOYSTICK
  • RH ASSY

56 7241307

  • 7241307 - CONSOLE
  • RH

57 51DM6

  • 51DM6 - NUT HX THDLK PREAPPL

58 7274498

  • 7274498 - CLAMP BATTERY

59 7242821

  • 7242821 - BRACKET
  • DISCONNECT

60 7223129

  • 7223129 - SCREW

61 6664223

  • 6664223 - OUTLET ELECTRICAL

62 6664224

  • 6664224 - CAP

63 7242830

  • 7242830 - BRACKET
  • WASHER BOTTLE

64 6693712

  • 6693712 - KEYPAD
  • PANEL

65 7211550

  • 7211550 - CONTAINER
  • STORAGE

66 7023588

  • 7023588 - KNOB

67 7023022

  • 7023022 - SWITCH ROTARY

68 7260940

  • 7260940 - CONTROLLER GATEWAY

69 7023784

  • 7023784 - DISPLAY
  • STD

70 7167082

  • 7167082 - CABLE
  • NEGATIVE

71 29CM830

  • 29CM830 - SCREW HEX

72 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8
