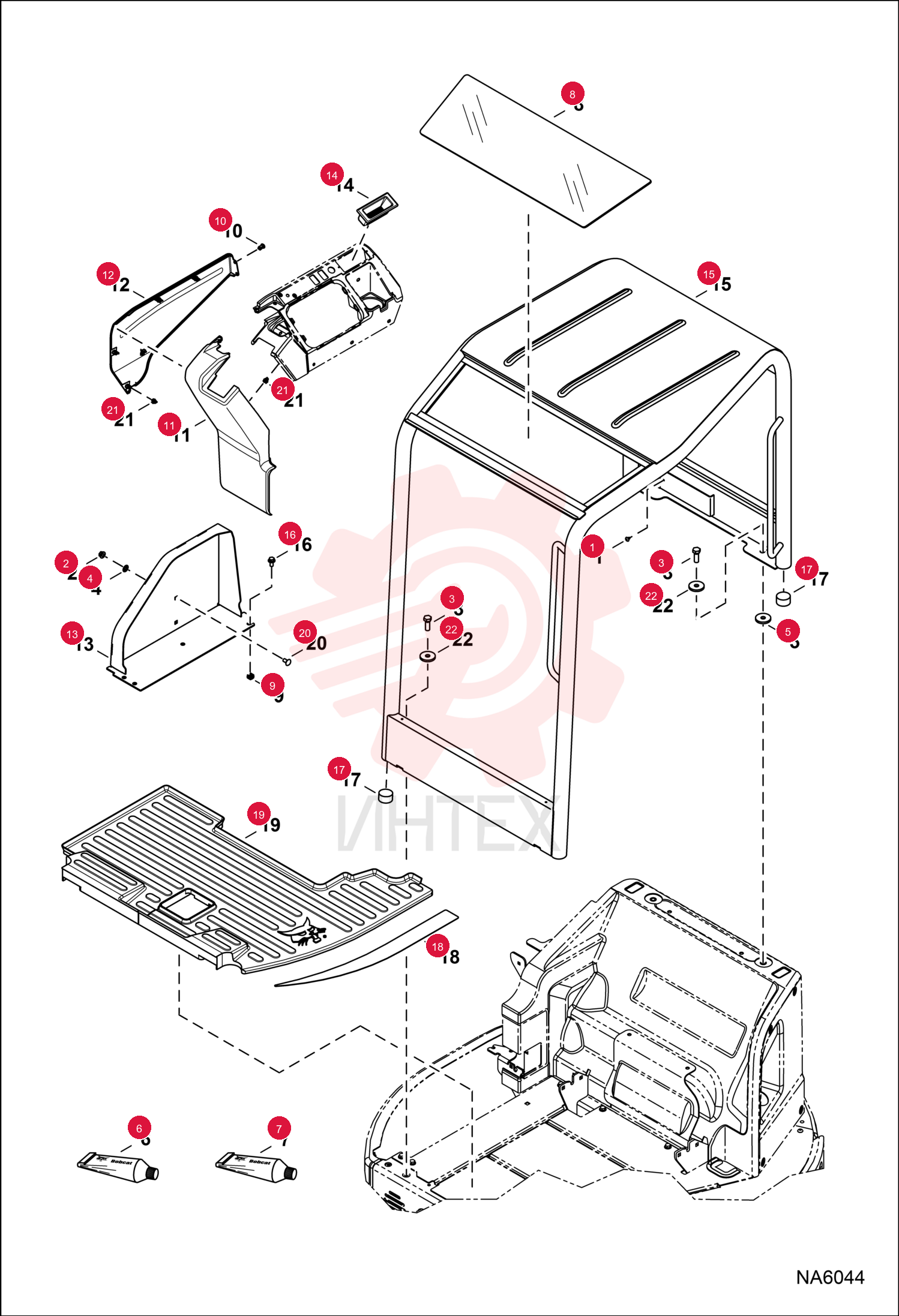

SCREW 6589675

SCREW 6589675

SCREW 6589675

1 6589675

  • 6589675 - SCREW

2 43DM10

  • 43DM10 - NUT FLANGED HEX

3 7CM1440

  • 7CM1440 - BOLT

4 6674264

  • 6674264 - RETAINER BOLT

5 6805244

  • 6805244 - WASHER

6 7230824

  • 7230824 - ADHESIVE
  • NON-PRIMER
  • 0
  • 31 L (10.5 oz) - Was 6808882

7 7230824

  • 7230824 - ADHESIVE
  • NON-PRIMER

8 7143481

  • 7143481 - WINDOW
  • CANOPY TOP

9 7155411

  • 7155411 - NUT

10 7160383

  • 7160383 - RIVET
  • BIRD CAGE

11 7165566

  • 7165566 - COVER
  • RH

12 7165567

  • 7165567 - COVER
  • RH

13 7170762

  • 7170762 - PANEL
  • RH

14 7171397

  • 7171397 - CONTAINER
  • STORAGE

15 7173146

  • 7173146 - CANOPY
  • W/A

16 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

17 7187736

  • 7187736 - INSULATION

18 7195050

  • 7195050 - TREAD
  • SAFETY

19 7199174

  • 7199174 - MAT
  • FLOOR CANOPY

20 28CM1020

  • 28CM1020 - BOLT CARRIAGE 8.8

21 7165333

  • 7165333 - CLIP

22 7187755

  • 7187755 - WASHER
