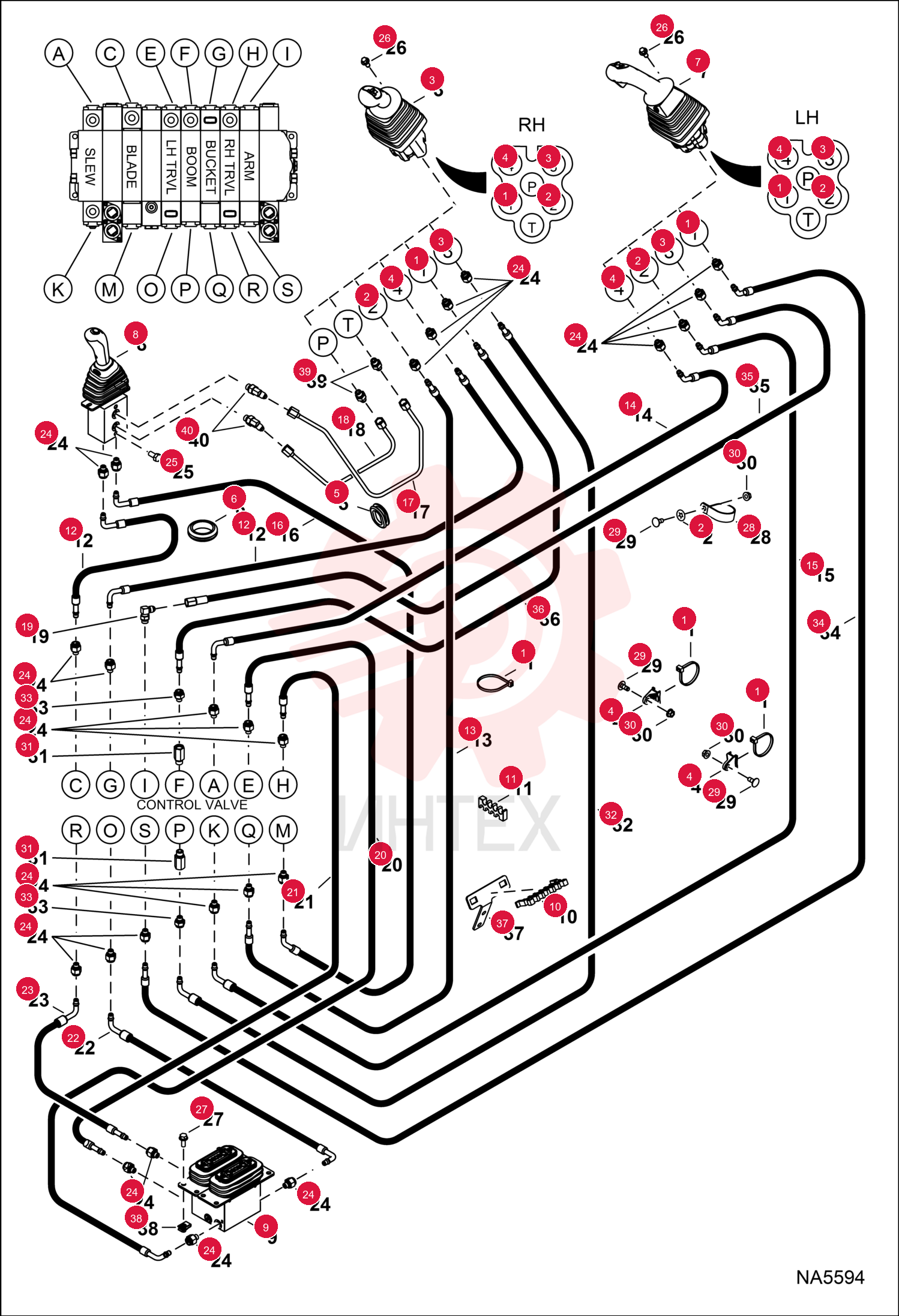

STRAP, TIE 6624289 (2)

STRAP, TIE 6624289 (2)

STRAP, TIE 6624289 (2)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6675859

  • 6675859 - RETAINER

3 7024441

  • 7024441 - JOYSTICK
  • RH ASSY

4 7220732

  • 7220732 - JOYSTICK
  • RH
  • RH

5 6678818

  • 6678818 - MOUNT

6 6681886

  • 6681886 - GROMMET

7 6806443

  • 6806443 - GROMMET

8 7220733

  • 7220733 - JOYSTICK
  • LH
  • LH

9 7024440

  • 7024440 - JOYSTICK
  • LH ASSY

10 7180565

  • 7180565 - VALVE
  • PEDAL DUAL

11 7188861

  • 7188861 - CLIP
  • HOSE

12 7188862

  • 7188862 - CLIP
  • HOSE

13 7196565

  • 7196565 - HOSE
  • HYD
  • 1510 mm (59.45") long

14 7196565

  • 7196565 - HOSE
  • HYD
  • 1559 mm (61.41") long

15 7196568

  • 7196568 - HOSE
  • HYD

16 7196574

  • 7196574 - HOSE
  • HYD

17 7196578

  • 7196578 - HOSE
  • HYD

18 7196583

  • 7196583 - HOSE
  • HYD

19 7196585

  • 7196585 - HOSE
  • HYD

20 7191229

  • 7191229 - TUBELINE
  • HYD

21 7196586

  • 7196586 - HOSE
  • HYD

22 7191228

  • 7191228 - TUBELINE
  • HYD

23 17KB0404

  • 17KB0404 - FTG HYD ELBOW 90

24 79K4

  • 79K4 - O RING 10

25 7202312

  • 7202312 - HOSE
  • HYD

26 7202313

  • 7202313 - HOSE
  • HYD

27 7202314

  • 7202314 - HOSE
  • HYD

28 7202315

  • 7202315 - HOSE
  • HYD

29 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

30 78K4

  • 78K4 - O'RING

31 7011053

  • 7011053 - CLIP

32 7344615

  • 7344615 - CAP PLASTIC

33 4CM816

  • 4CM816 - SCREW HEX HD 8.8
  • Was 1CM816

34 26GM8020

  • 26GM8020 - SCREW SELF TAPPING

35 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

36 30H85

  • 30H85 - CLAMP

37 33CM820

  • 33CM820 - BOLT

38 43DM8

  • 43DM8 - NUT FLANGED HEX

39 79K6

  • 79K6 - O RING 10

40 7012494

  • 7012494 - ORIFICE

41 7204093

  • 7204093 - HOSE
  • HYD

42 10L0606

  • 10L0606 - FITTING
  • HYD CONNECTOR

43 78K6

  • 78K6 - O'RING

44 7011053

  • 7011053 - CLIP

45 7196575

  • 7196575 - HOSE
  • HYD

46 7198629

  • 7198629 - HOSE
  • HYD

47 7204089

  • 7204089 - HOSE
  • HYD

48 7192355

  • 7192355 - HOLDER

49 6676169

  • 6676169 - NUT

50 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

51 78K4

  • 78K4 - O'RING

52 7011053

  • 7011053 - CLIP

53 7344615

  • 7344615 - CAP PLASTIC

54 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR

55 10L0604

  • 10L0604 - FITTING
  • HYD CONNECTOR

56 78K4

  • 78K4 - O'RING

57 7344615

  • 7344615 - CAP PLASTIC

58 18KB0404

  • 18KB0404 - FITTING
  • HYD ELBOW

59 7011053

  • 7011053 - CLIP
