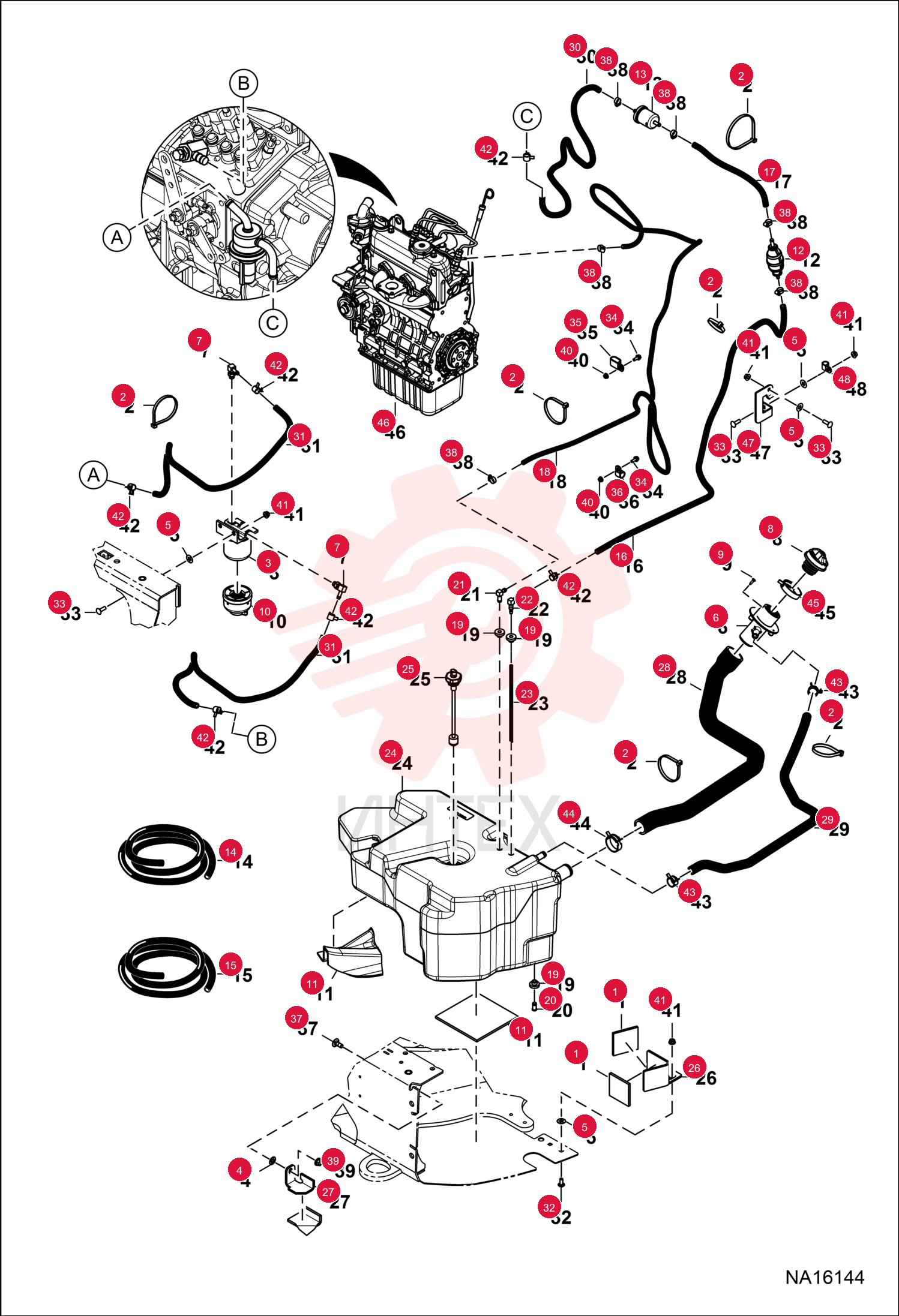

BUMP.PAD 6578278 (4)

BUMP.PAD 6578278 (4)

BUMP.PAD 6578278 (4)

1 6578278

  • 6578278 - BUMP.PAD

2 6624289

  • 6624289 - STRAP
  • TIE

3 6667352

  • 6667352 - FILTER
  • FUEL W/SEPARATOR 12

4 6667353

  • 6667353 - FILTER
  • FUEL ASSY

5 6674264

  • 6674264 - RETAINER BOLT

6 6675859

  • 6675859 - RETAINER

7 6701449

  • 6701449 - FLR.TUBE

8 6715183

  • 6715183 - ELBOW 90 STRTHD TUBE

9 7023550

  • 7023550 - CAP
  • DIESEL LOCKING

10 7106279

  • 7106279 - SCREW

11 7167163

  • 7167163 - BOWL
  • FUEL

12 7177212

  • 7177212 - GASKET

13 7187758

  • 7187758 - BUMPER
  • RUBBER

14 7219755

  • 7219755 - PUMP
  • PRIMER HAND

15 6683101

  • 6683101 - ASSEMBLY FILTER FUEL

16 6577822

  • 6577822 - HOSE BULK

17 6578169

  • 6578169 - HOSE BULK

18 6553411

  • 6553411 - BUSHING
  • PRESS FIT 5

19 6599645

  • 6599645 - PLUG
  • STEEL

20 6630041

  • 6630041 - ELBOW 90 BARBED

21 6666302

  • 6666302 - ELBOW BARBED

22 7223217

  • 7223217 - TUBE
  • FUEL LINE ASSY

23 7301914

  • 7301914 - TANK FUEL

24 7326908

  • 7326908 - SENSOR FUEL

25 7303384

  • 7303384 - BRACKET TANK FUEL

26 7303385

  • 7303385 - BRACKET TANK FUEL

27 7305743

  • 7305743 - HOSE FUEL FILL

28 7305745

  • 7305745 - HOSE BREATHER

29 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

30 28CM825

  • 28CM825 - BOLT CARRIAGE 8.8

31 29CM616

  • 29CM616 - SCREW FLGD HEX CAP

32 30H37

  • 30H37 - CLIP INSULATED

33 31H31

  • 31H31 - CLIP

34 33CM1025

  • 33CM1025 - BOLT

35 42HS04

  • 42HS04 - CLAMP HOSE TYPE M

36 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

37 51DM6

  • 51DM6 - NUT HX THDLK PREAPPL

38 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

39 5HM14

  • 5HM14 - HOSE CLMP CONST TENS

40 5HM23

  • 5HM23 - HOSE CLMP CONST TENS

41 5HM42

  • 5HM42 - HOSE CLAMP

42 5HM55

  • 5HM55 - CLAMP

43 7314112

  • 7314112 - ENGINE D1105 20.9 HP EPA T4 / EU STG V

44 7356247

  • 7356247 - BRACKET FUEL

45 30H34

  • 30H34 - CLAMP

46 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP
