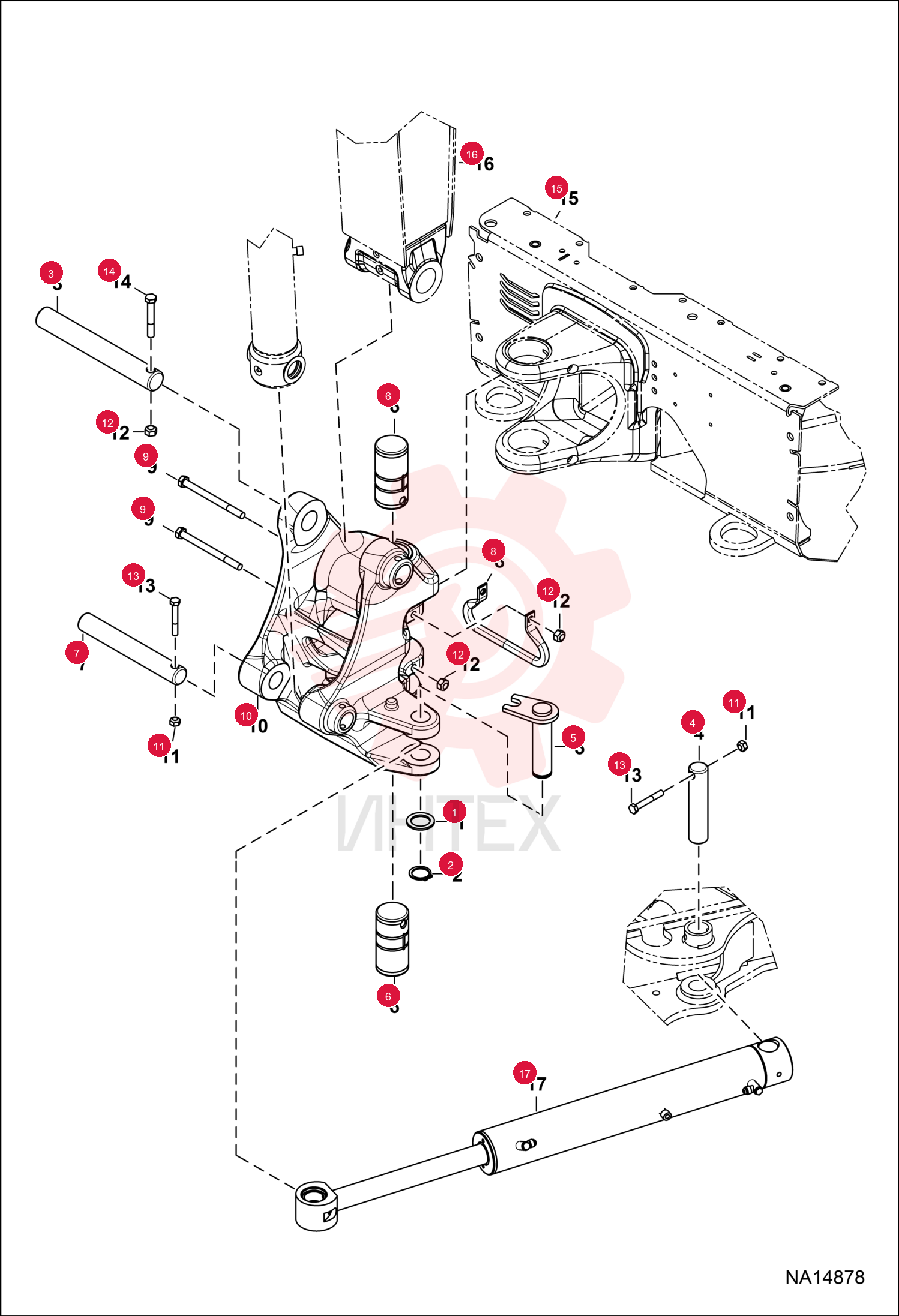

WASHER, 5 6534111 (3)

WASHER, 5 6534111 (3)

WASHER, 5 6534111 (3)

1 6534111

  • 6534111 - WASHER
  • 5

2 6534154

  • 6534154 - RING
  • RETAINER

3 7157647

  • 7157647 - PIN
  • PIVOT

4 7159423

  • 7159423 - PIN
  • PIVOT

5 7183443

  • 7183443 - PIN
  • PIVOT

6 7284795

  • 7284795 - PIN KINGPIN

7 7304186

  • 7304186 - PIN BOOM

8 7305737

  • 7305737 - SUPPORT HOSE

9 7324555

  • 7324555 - SCREW HEX

10 7324970

  • 7324970 - SWING ASSEMBLY

11 16DM10

  • 16DM10 - NUT

12 16DM12

  • 16DM12 - NUT

13 1CM1070

  • 1CM1070 - BOLT

14 1CM1280

  • 1CM1280 - BOLT

15 7302317

  • 7302317 - CYLINDER HYDRAULIC
  • swing
