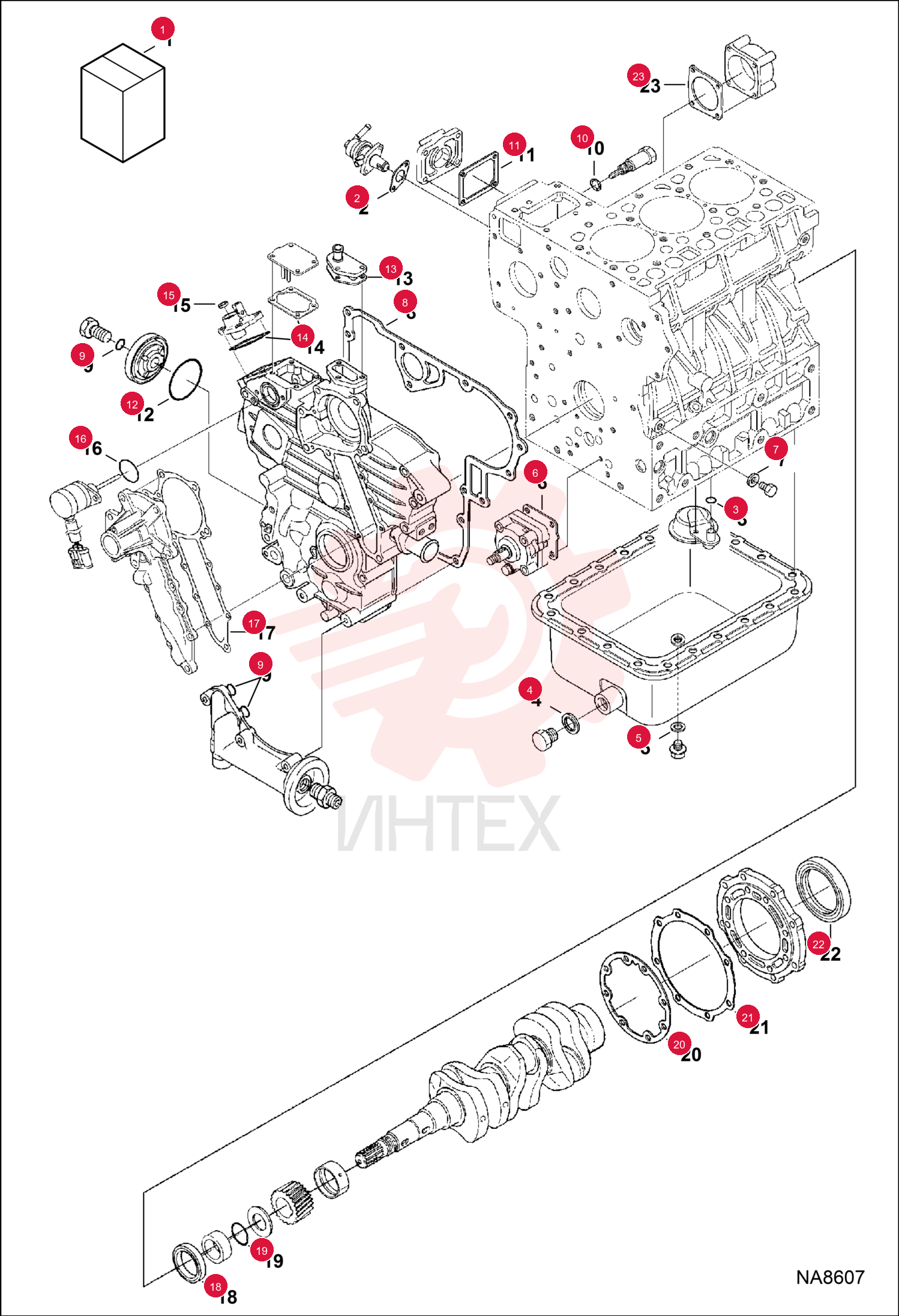

GASKET 6686037 (1)

GASKET 6686037 (1)

GASKET 6686037 (1)

1 6686037

  • 6686037 - GASKET
  • - fuel pump

2 6684754

  • 6684754 - O-RING
  • - oil screen

3 6631046

  • 6631046 - GASKET
  • - drain plug

4 6680484

  • 6680484 - GASKET
  • - drain plug

5 6666782

  • 6666782 - GASKET
  • - oil pump

6 3974095

  • 3974095 - GASKET
  • METAL

7 7010599

  • 7010599 - GASKET
  • GEARCASE

8 6685466

  • 6685466 - O-RING
  • - gear case

9 6684818

  • 6684818 - SEAL
  • - idle adj. bolt

10 6666783

  • 6666783 - GASKET
  • - oil filter

11 6684769

  • 6684769 - O-RING
  • - cover

12 6666803

  • 6666803 - GASKET
  • - water return flange

13 6684841

  • 6684841 - GASKET
  • - plate

14 6685476

  • 6685476 - SEAL
  • - oil

15 6685465

  • 6685465 - O-RING
  • - stop solenoid

16 6684870

  • 6684870 - GASKET
  • - water pump

17 7024826

  • 7024826 - SEAL
  • OIL
  • - front oil - oil frt main

18 3974577

  • 3974577 - O-RING
  • - crankshaft frt

19 6684788

  • 6684788 - GASKET
  • - bearing case

20 6666814

  • 6666814 - GASKET
  • - case cover

21 6684789

  • 6684789 - SEAL
  • OIL
  • - rear oil

22 6692386

  • 6692386 - GASKET
  • - cover
