E32
/

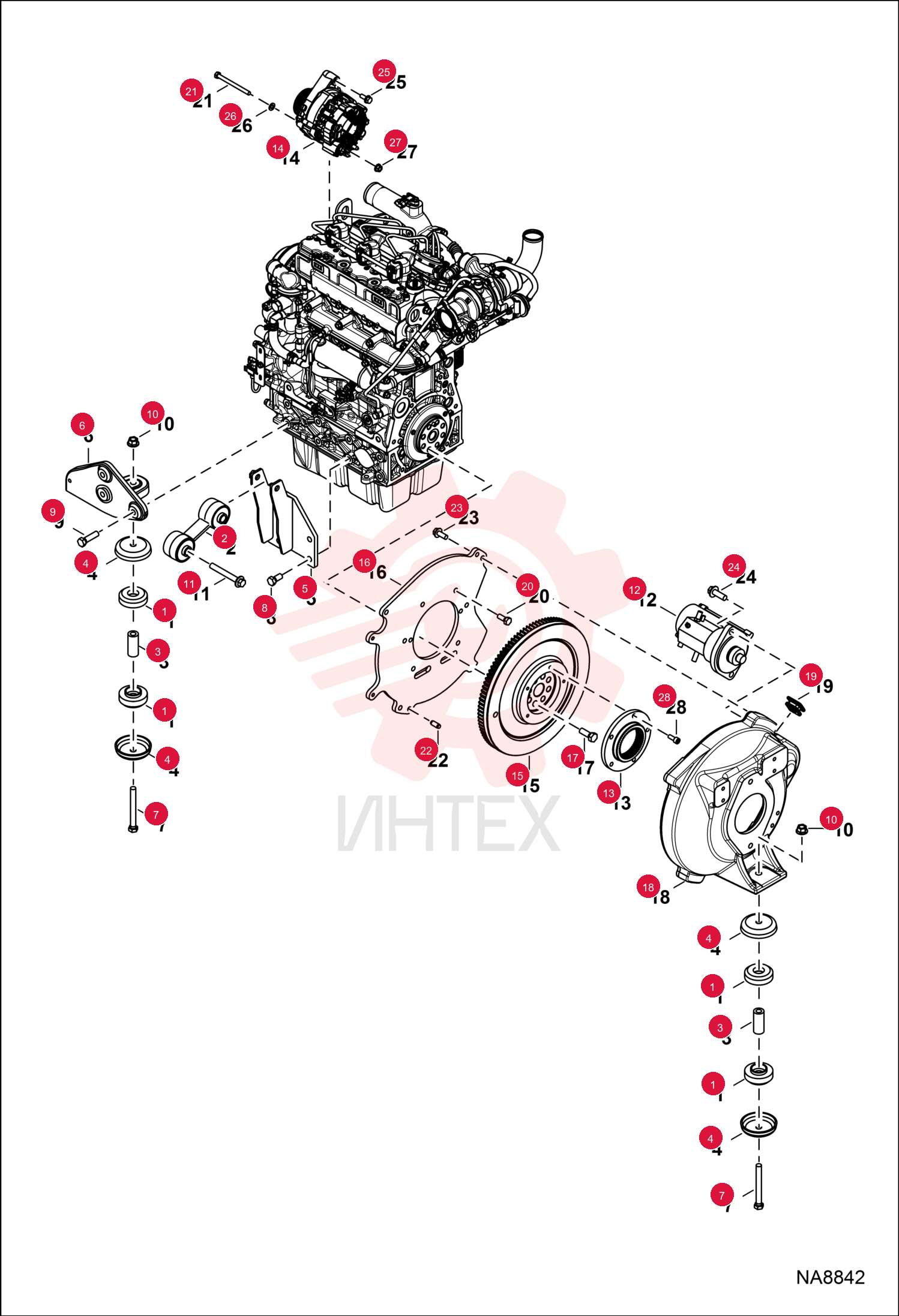

MOUNT 6688994

MOUNT 6688994

MOUNT 6688994

1 6688994

  • 6688994 - MOUNT

2 7021924

  • 7021924 - MOUNT
  • ENG

3 7116850

  • 7116850 - SPACER

4 7116851

  • 7116851 - CUP

5 7198134

  • 7198134 - MOUNT
  • ENG

6 7233867

  • 7233867 - MOUNT
  • ENG

7 10CM12110

  • 10CM12110 - BOLT

8 1CM1225

  • 1CM1225 - BOLT

9 4CM1245

  • 4CM1245 - SCREW
  • Was 1CM1245

10 47DM12

  • 47DM12 - NUT HEX FLNG MPT

11 60CM1290

  • 60CM1290 - BOLT

12 7253205

  • 7253205 - STARTER
  • Was 6670727

13 6670757

  • 6670757 - COUPLER
  • FLANGE

14 7015581

  • 7015581 - ALTERNATOR
  • 90 AMP

15 6510470

  • 6510470 - ВЕНЕЦ МАХОВИКА
  • BOBCAT

16 RG60000

  • RG60000 - ВЕНЕЦ МАХОВИКА
  • AUTOWELT

17 7217123

  • 7217123 - FLYWHEEL ENGINE ASSEMBLY

18 7308159

  • 7308159 - PLATE FLYWHEEL
  • Was 7177625

19 7030270

  • 7030270 - BOLT

20 7339791

  • 7339791 - MOUNT ENGINE
  • Was 7215417

21 7237917

  • 7237917 - PLUG

22 1CM1025

  • 1CM1025 - BOLT

23 1CM8100

  • 1CM8100 - SCREW HEX CAP

24 23JM1024

  • 23JM1024 - PIN HARDENED PARALLE

25 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

26 29CM1235

  • 29CM1235 - BOLT

27 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

28 29E5

  • 29E5 - WASHER

29 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

30 9GM820

  • 9GM820 - SCREW SKTHD CAP
