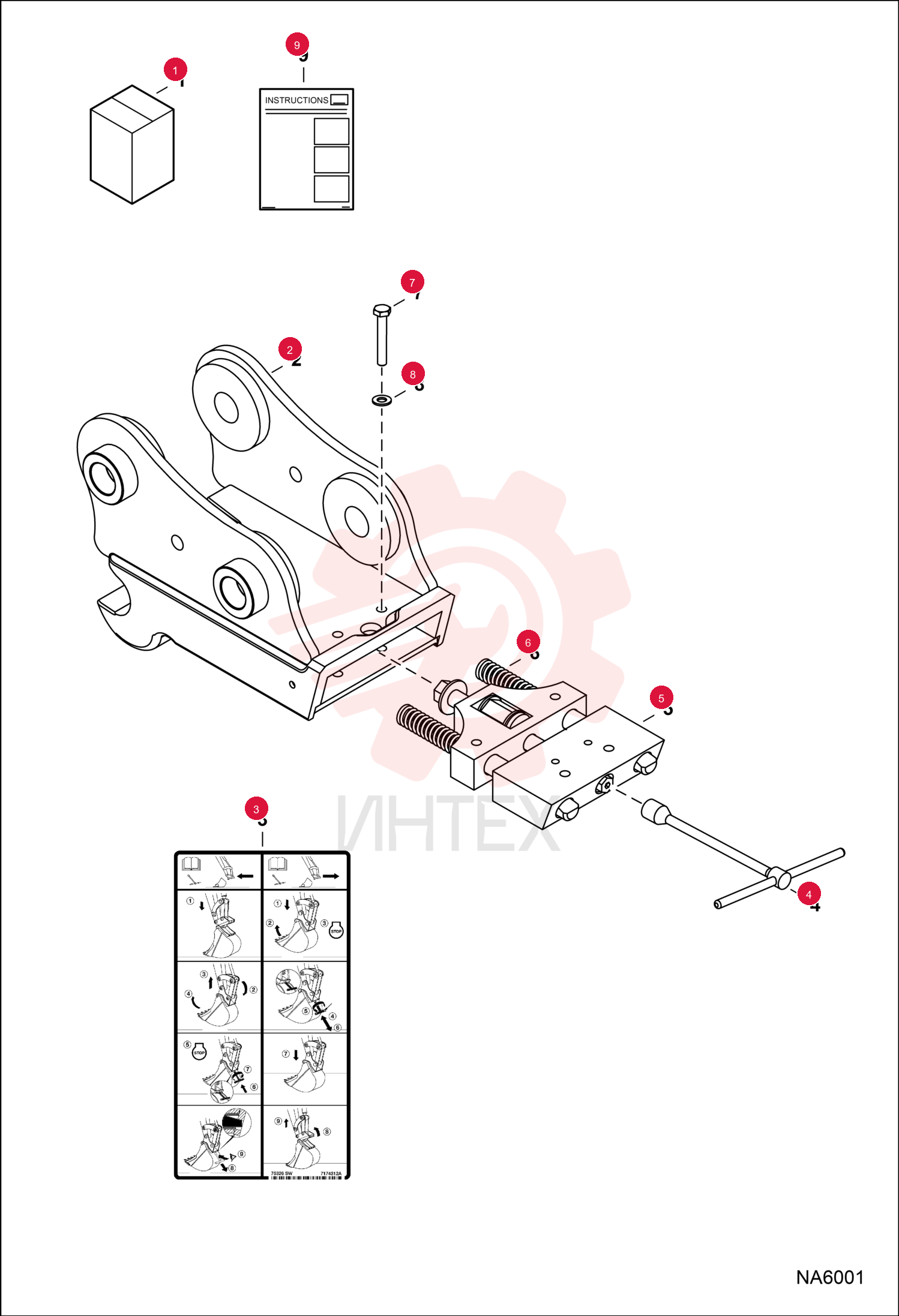

LOCK ASSEMBLY 6690915 (2)

LOCK ASSEMBLY 6690915 (2)

LOCK ASSEMBLY 6690915 (2)

1 6690915

  • 6690915 - LOCK ASSEMBLY
  • W/Ref. 4

2 6690928

  • 6690928 - SPRING
  • PRESSURE

3 6690916

  • 6690916 - BOLT

4 6690917

  • 6690917 - WASHER
  • LOCK

5 6690918

  • 6690918 - WRENCH
  • SOCKET M19

6 7174312

  • 7174312 - DECAL
  • OPERATION

7 7329650ENUS

  • 7329650ENUS - INSTRUCTIONS
  • Was 6987333ENUS
