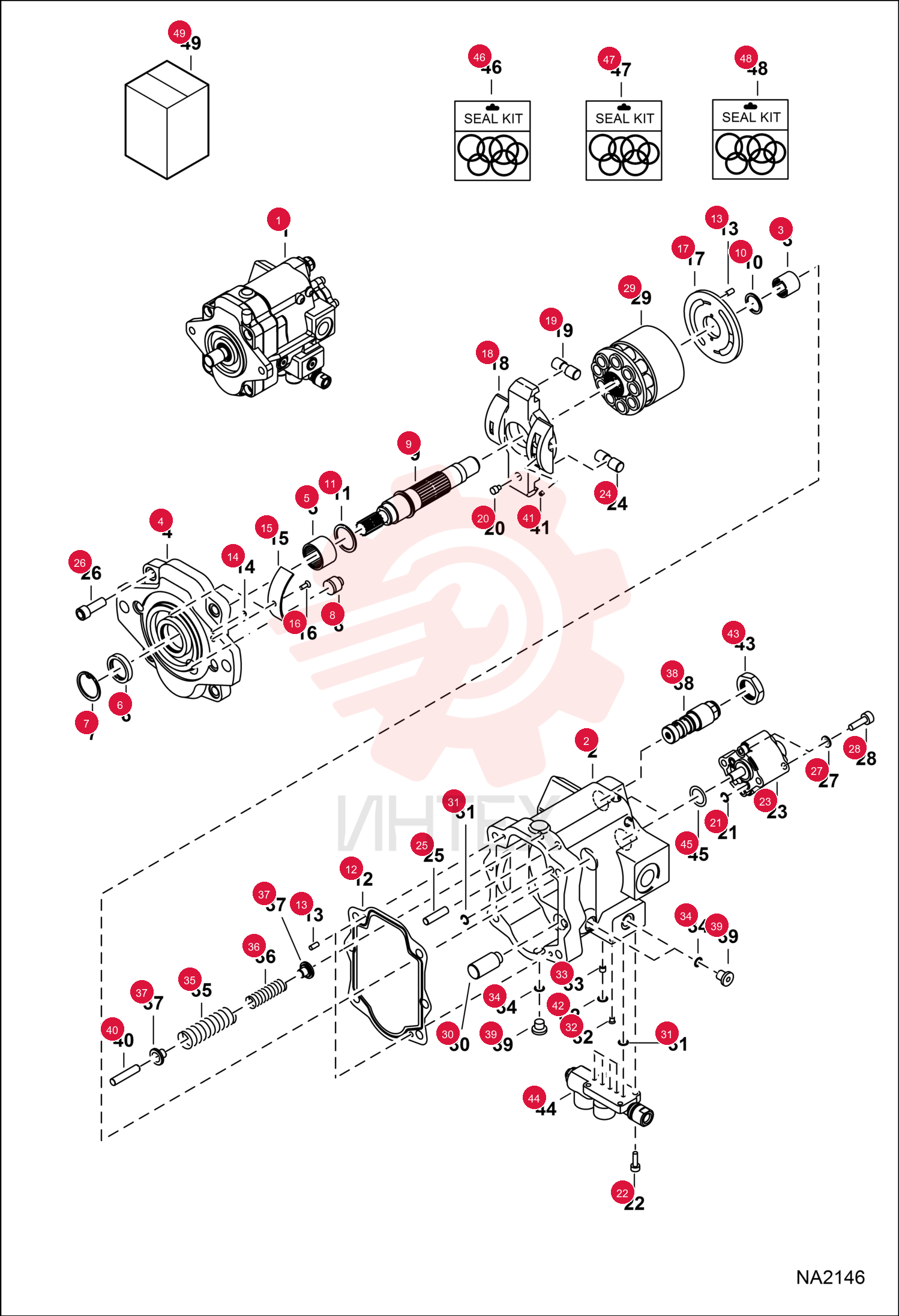

PUMP, HYD PISTON 7025227 (2)
1 7025227
- 7025227 - PUMP
- HYD PISTON
- Ref. 2-45
2 7009604
- 7009604 - BEARING NEEDLE
3 7009605
- 7009605 - BEARING
- NEEDLE
4 7009606
- 7009606 - SEAL
- OIL
5 7009607
- 7009607 - RING
- SNAP
6 7246695
- 7246695 - STOP
7 7009609
- 7009609 - SHAFT
8 7009610
- 7009610 - WASHER
- THRUST
9 7009611
- 7009611 - WASHER
- THRUST
10 7009612
- 7009612 - GASKET
11 6653019
- 6653019 - PIN
12 7009613
- 7009613 - O-RING
13 7010672
- 7010672 - BUSHING
14 7009615
- 7009615 - SCREW
15 7009616
- 7009616 - PLATE
- VALVE
16 7009617
- 7009617 - STOP
17 7009643
- 7009643 - O-RING
18 7009641
- 7009641 - BOLT
19 7009628
- 7009628 - PUMP
- GEAR
20 7009642
- 7009642 - PIN
21 7009632
- 7009632 - BOLT
22 7009630
- 7009630 - WASHER
23 7009629
- 7009629 - BOLT
24 7010271
- 7010271 - CYLINDER ASSEMBLY
25 7009619
- 7009619 - PIN
26 7009618
- 7009618 - O-RING
27 7009620
- 7009620 - PLUG
28 7009621
- 7009621 - ORIFICE
29 7009180
- 7009180 - O-RING
30 7246700
- 7246700 - SPRING
31 7246701
- 7246701 - SPRING
32 7009624
- 7009624 - SEAT
- SPRING
33 7370602
- 7370602 - LIMITER TORQUE
- Was 7009625
34 7009179
- 7009179 - PLUG
35 7009647
- 7009647 - PIN
36 7009646
- 7009646 - O-RING
37 7009627
- 7009627 - NUT
38 7010270
- 7010270 - VALVE ASSY
39 7009645
- 7009645 - O-RING
40 7010234
- 7010234 - KIT
- SEAL
- Ref. 31
- 34
41 7009966
- 7009966 - KIT
- SEAL
- Ref. 21
- 23
- 24
- 31
- 34
- 42
- & 45
42 7010272
- 7010272 - KIT
- SWASH PLATE
- Ref. 18
- 19
- 24
- 32 & 41
43 7009968
- 7009968 - KIT
- SEAL
- Ref. 6
- 12 & 31
