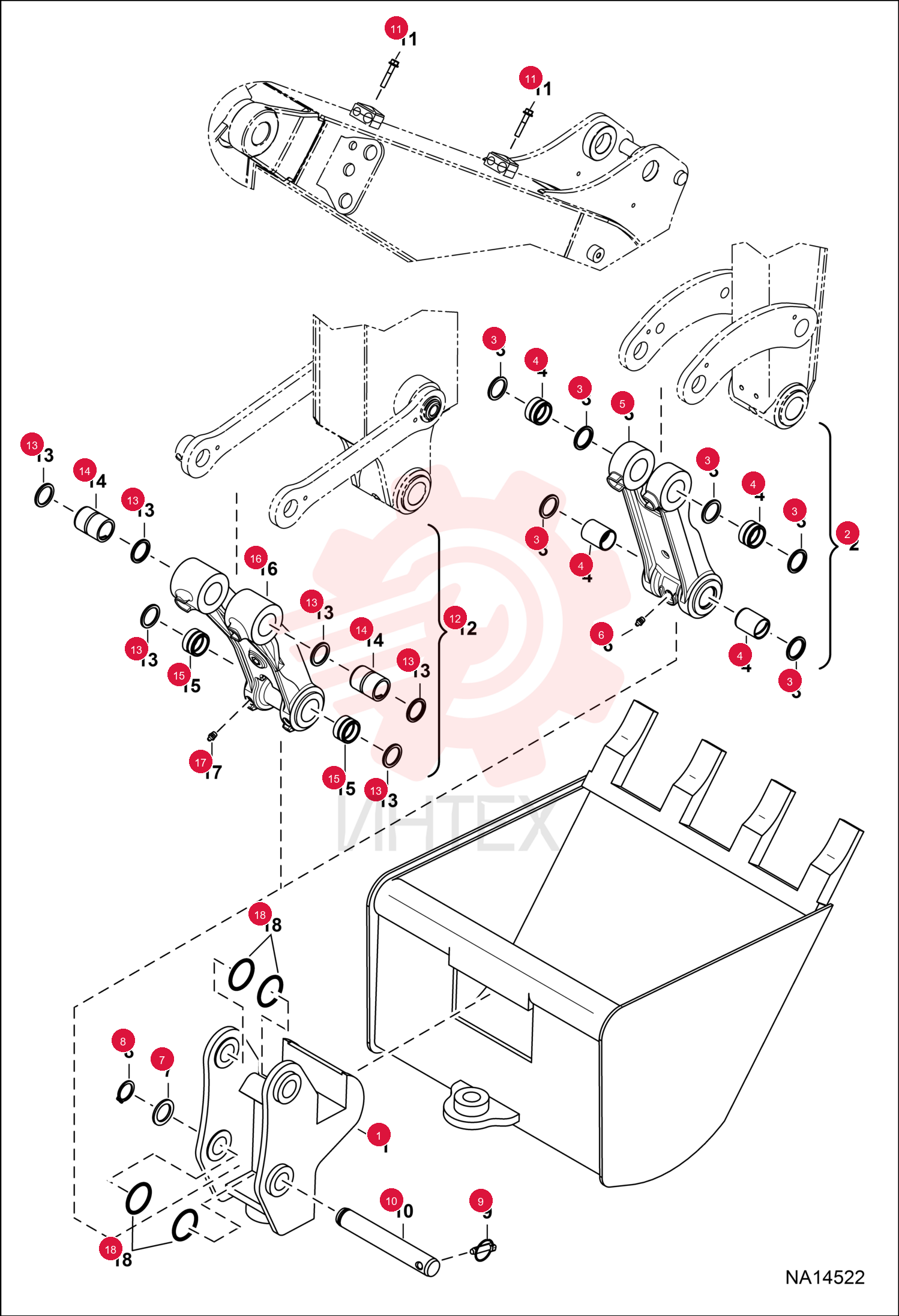

COUPLER 6698279

COUPLER 6698279

COUPLER 6698279

1 6698279

  • 6698279 - COUPLER

2 7236896

  • 7236896 - LINK
  • PIN-ON
  • Ref. 3-6

3 6652915

  • 6652915 - SEAL
  • OIL

4 6803309

  • 6803309 - BUSHING
  • PRESS FIT

5 10H25

  • 10H25 - FTG GREASE STRAIGHT

6 6534111

  • 6534111 - WASHER
  • 5

7 6534154

  • 6534154 - RING
  • RETAINER

8 6560382

  • 6560382 - PIN
  • LOCK

9 7128920

  • 7128920 - PIN

10 59CM845

  • 59CM845 - BOLT
  • FLANGE

11 7194410

  • 7194410 - LINK ASSEMBLY
  • Ref. 13-17

12 6652915

  • 6652915 - SEAL
  • OIL

13 6803309

  • 6803309 - BUSHING
  • PRESS FIT

14 7196810

  • 7196810 - BUSHING
  • WEAR

15 10H25

  • 10H25 - FTG GREASE STRAIGHT

16 6811260

  • 6811260 - O-RING
