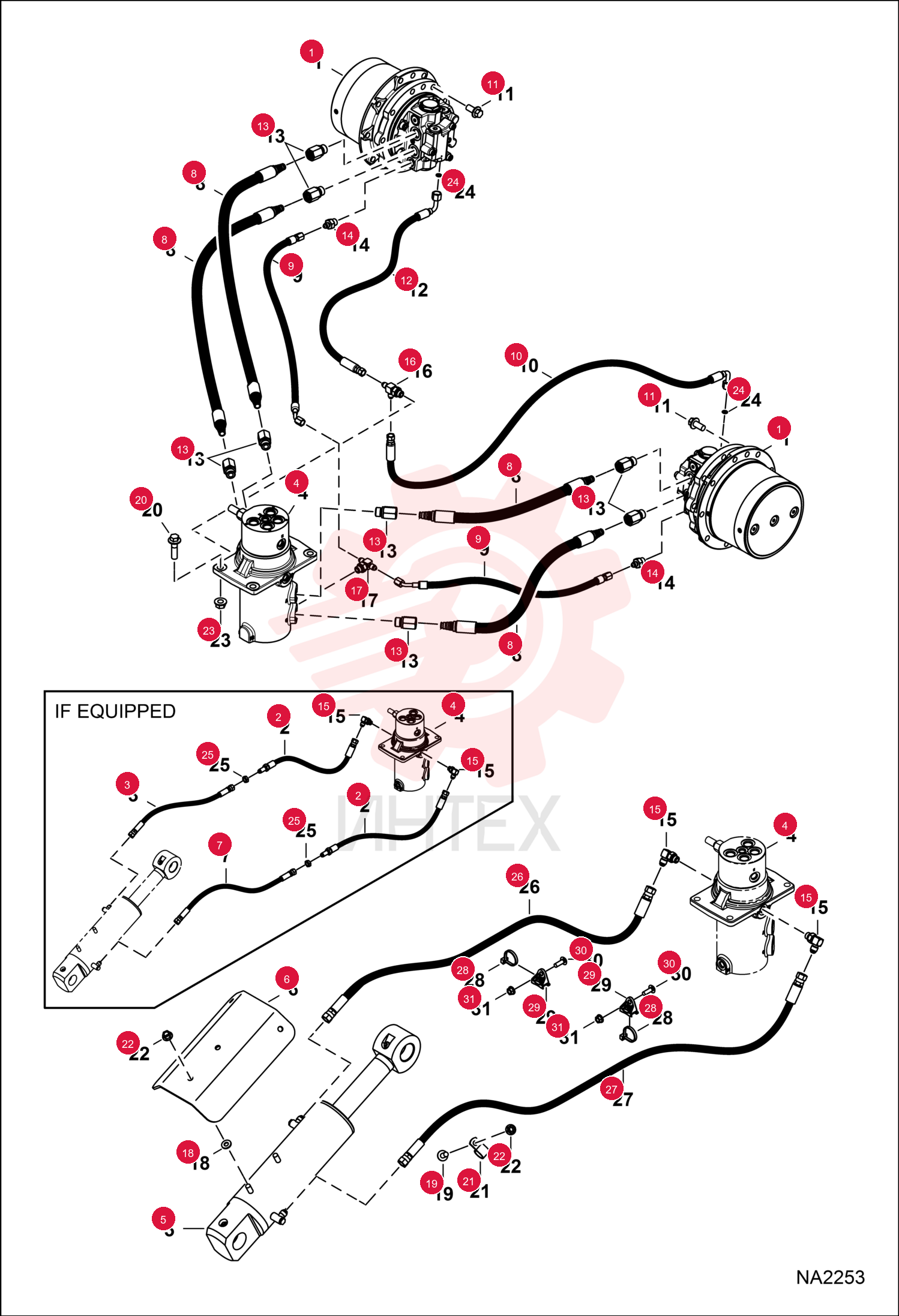

MOTOR, TRAVEL HYD 6698127 (4)

MOTOR, TRAVEL HYD 6698127 (4)

MOTOR, TRAVEL HYD 6698127 (4)

1 6698127

  • 6698127 - MOTOR
  • TRAVEL HYD

2 7143712

  • 7143712 - HOSE
  • HYD ASSY
  • if equipped

3 7181886

  • 7181886 - HOSE
  • HYD
  • if equipped - Was 7143713

4 7301184

  • 7301184 - SHIELD

5 7181887

  • 7181887 - HOSE
  • HYD
  • if equipped - Was 7156295

6 7156353

  • 7156353 - HOSE
  • HYD ASSY
  • Also Order Ref. 13

7 7156354

  • 7156354 - HOSE
  • HYD ASSY

8 7156359

  • 7156359 - HOSE
  • HYD ASSY
  • 1207 mm (47.5") long

9 7162236

  • 7162236 - SCREW

10 7175301

  • 7175301 - HOSE
  • HYD ASSY

11 78K8

  • 78K8 - O RING

12 15HB0808

  • 15HB0808 - FITTING
  • Also Order hose

13 15KB0406

  • 15KB0406 - FITTING
  • HYD CONNECTOR

14 79K6

  • 79K6 - O RING 10

15 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW

16 79K6

  • 79K6 - O RING 10

17 19KB0406

  • 19KB0406 - FITTING
  • HYD TEE

18 79K6

  • 79K6 - O RING 10

19 21KB0406

  • 21KB0406 - FITTING
  • HYD TEE

20 79K6

  • 79K6 - O RING 10

21 25E17

  • 25E17 - WASHER FLAT PLAIN

22 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

23 29CM1250

  • 29CM1250 - BOLT
  • Was 29CM1245

24 30H46

  • 30H46 - CLIP

25 43DM10

  • 43DM10 - NUT FLANGED HEX

26 51DM12

  • 51DM12 - NUT

27 58K11

  • 58K11 - O RING 10

28 86F5

  • 86F5 - NUT
  • if equipped

29 7236874

  • 7236874 - HOSE
  • HYD ASSY

30 7236878

  • 7236878 - HOSE
  • HYD ASSY

31 6624289

  • 6624289 - STRAP
  • TIE

32 6678818

  • 6678818 - MOUNT

33 28CM825

  • 28CM825 - BOLT CARRIAGE 8.8

34 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL
