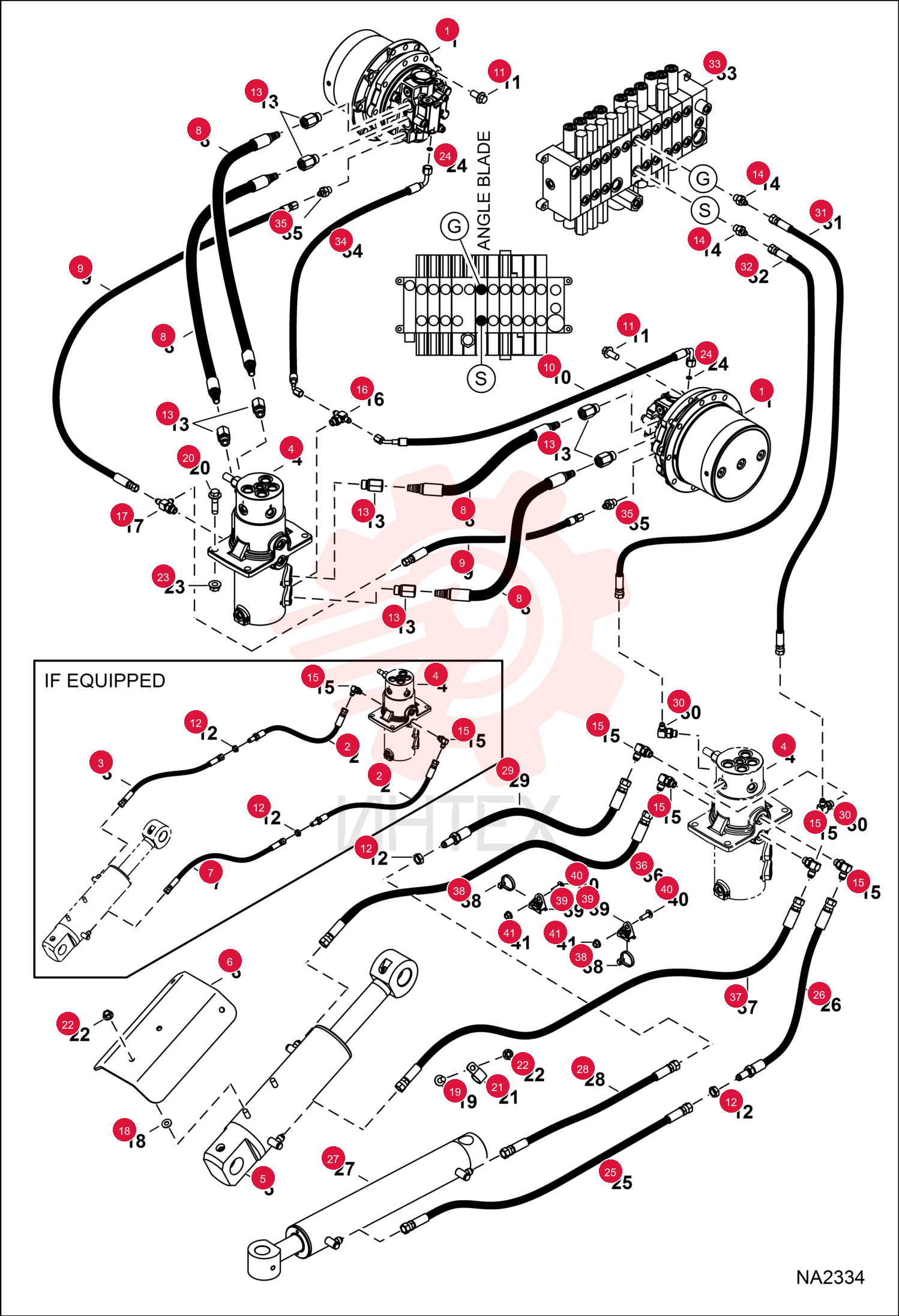

MOTOR, TRAVEL HYD 6698127 (2)

MOTOR, TRAVEL HYD 6698127 (2)

MOTOR, TRAVEL HYD 6698127 (2)

1 6698127

  • 6698127 - MOTOR
  • TRAVEL HYD

2 7143712

  • 7143712 - HOSE
  • HYD ASSY
  • if equipped

3 7181886

  • 7181886 - HOSE
  • HYD
  • if equipped - Was 7143713

4 7301184

  • 7301184 - SHIELD

5 7181887

  • 7181887 - HOSE
  • HYD
  • if equipped - Was 7156295

6 7143709

  • 7143709 - HOSE
  • HYD ASSY
  • Also Order Ref. 13

7 7143711

  • 7143711 - HOSE
  • HYD ASSY

8 7143710

  • 7143710 - HOSE
  • HYD ASSY
  • 1321 mm (52") long

9 7162236

  • 7162236 - SCREW

10 86F5

  • 86F5 - NUT
  • if equipped

11 78K8

  • 78K8 - O RING

12 15HB0808

  • 15HB0808 - FITTING
  • Also Order hose

13 79K6

  • 79K6 - O RING 10

14 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR

15 15KB0406

  • 15KB0406 - FITTING
  • HYD CONNECTOR

16 79K6

  • 79K6 - O RING 10

17 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW

18 79K6

  • 79K6 - O RING 10

19 19KB0406

  • 19KB0406 - FITTING
  • HYD TEE

20 79K6

  • 79K6 - O RING 10

21 21KB0406

  • 21KB0406 - FITTING
  • HYD TEE

22 25E17

  • 25E17 - WASHER FLAT PLAIN

23 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

24 29CM1250

  • 29CM1250 - BOLT
  • Was 29CM1245

25 30H46

  • 30H46 - CLIP

26 43DM10

  • 43DM10 - NUT FLANGED HEX

27 51DM12

  • 51DM12 - NUT

28 58K11

  • 58K11 - O RING 10

29 7188997

  • 7188997 - HOSE
  • HYD
  • Was 7181908

30 7143740

  • 7143740 - HOSE
  • HYD ASSY

31 7181908

  • 7181908 - HOSE
  • HYD
  • Was 7188997

32 7174627

  • 7174627 - HOSE
  • HYD ASSY

33 79K6

  • 79K6 - O RING 10

34 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW

35 17KB0406

  • 17KB0406 - FITTING
  • HYD ELBOW

36 7181905

  • 7181905 - HOSE
  • HYD
  • .563" thread female ends

37 7164941

  • 7164941 - HOSE
  • HYD ASSY
  • .438" thread female ends

38 7181906

  • 7181906 - HOSE
  • HYD
  • .563" thread female ends

39 7164942

  • 7164942 - HOSE
  • HYD ASSY
  • .438" thread female ends

40 7156359

  • 7156359 - HOSE
  • HYD ASSY
  • 1207 mm (47.5") long

41 7143710

  • 7143710 - HOSE
  • HYD ASSY
  • 1321 mm (52") long

42 79K6

  • 79K6 - O RING 10

43 15KB0406

  • 15KB0406 - FITTING
  • HYD CONNECTOR

44 7236874

  • 7236874 - HOSE
  • HYD ASSY

45 7236878

  • 7236878 - HOSE
  • HYD ASSY

46 6624289

  • 6624289 - STRAP
  • TIE

47 6678818

  • 6678818 - MOUNT

48 28CM825

  • 28CM825 - BOLT CARRIAGE 8.8

49 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL
