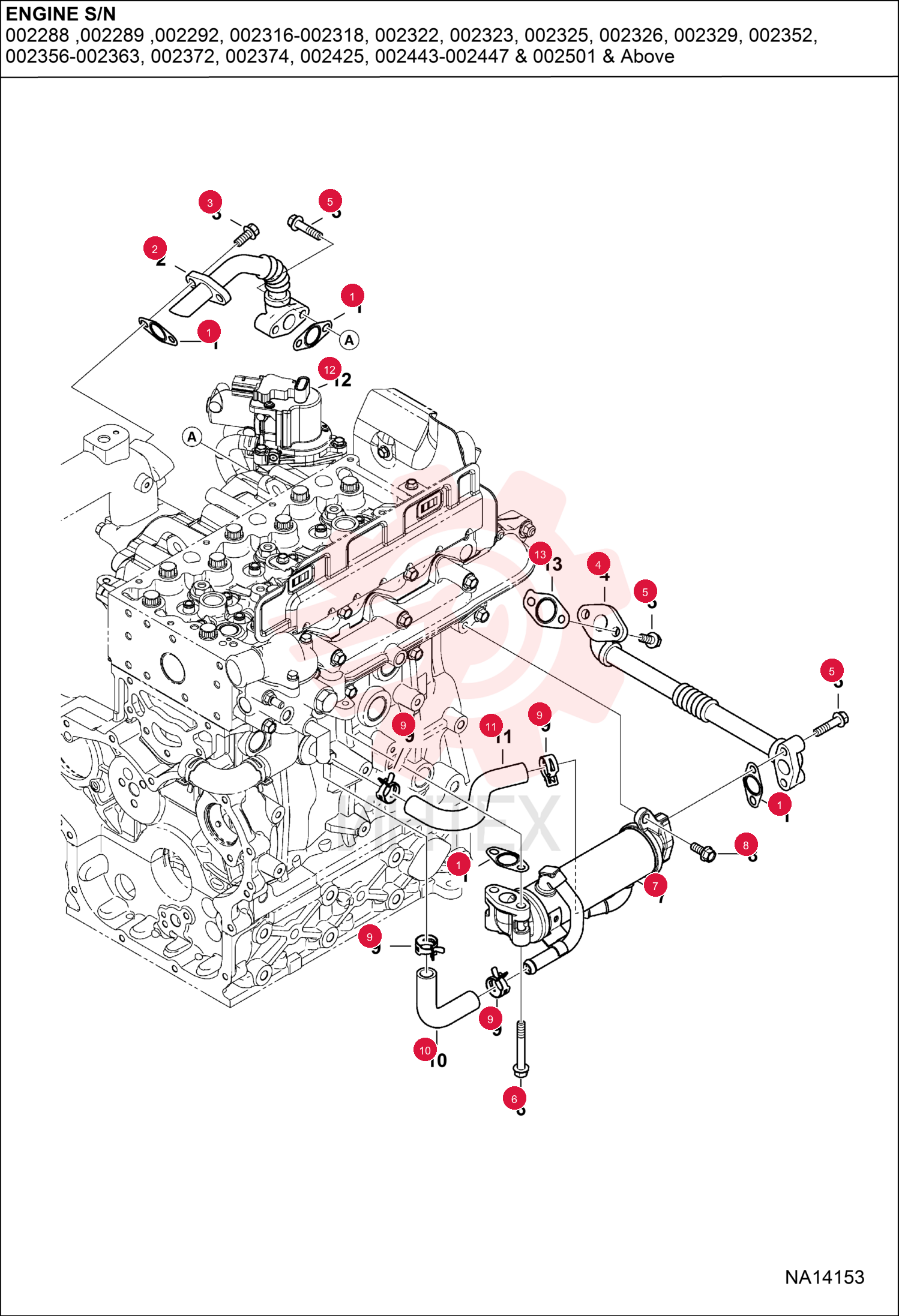

GASKET 7030331 (2)

GASKET 7030331 (2)

GASKET 7030331 (2)

1 7030331

  • 7030331 - GASKET

2 7329719

  • 7329719 - PIPE EGR

3 7030272

  • 7030272 - BOLT

4 7329720

  • 7329720 - PIPE EGR

5 7030268

  • 7030268 - BOLT

6 7030284

  • 7030284 - BOLT

7 7249386

  • 7249386 - COOLER
  • EGR

8 7030280

  • 7030280 - BOLT

9 7030307

  • 7030307 - CLAMP
  • HOSE

10 7249390

  • 7249390 - HOSE
  • RUBBER

11 7360533

  • 7360533 - HOSE FORMED

12 7249389

  • 7249389 - TUBE
  • COOLING

13 7256778

  • 7256778 - GASKET
