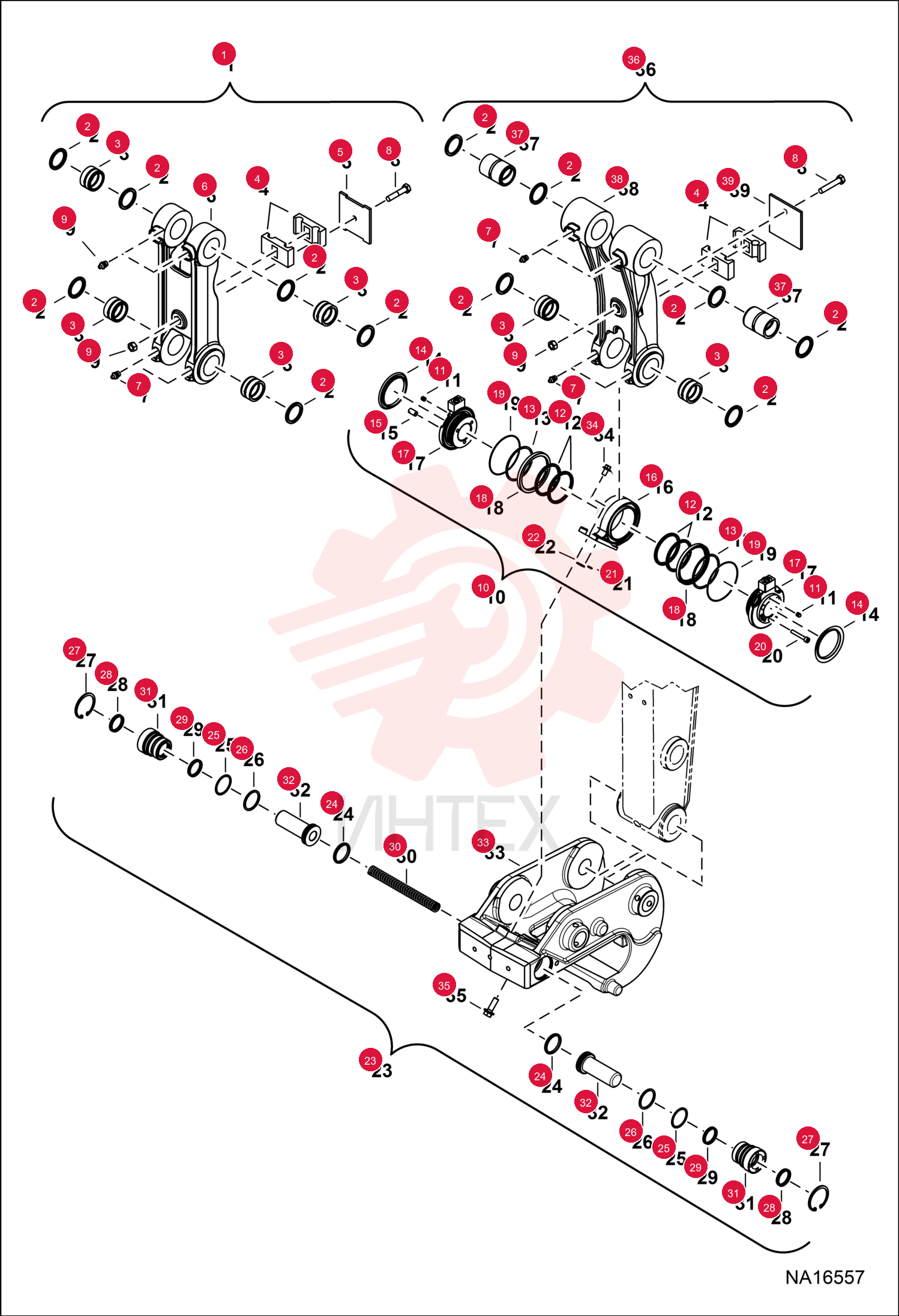

LINK, HYD X-CHANGE 7154148 (6)

LINK, HYD X-CHANGE 7154148 (6)

LINK, HYD X-CHANGE 7154148 (6)

1 7154148

  • 7154148 - LINK
  • HYD X-CHANGE
  • Ref. 2-9 - Use W/O extendable arm

2 6652915

  • 6652915 - SEAL
  • OIL

3 6803309

  • 6803309 - BUSHING
  • PRESS FIT
  • for Ref. 36

4 6803309

  • 6803309 - BUSHING
  • PRESS FIT
  • for Ref. 1

5 7115813

  • 7115813 - BLOCK RUBBER

6 7226711

  • 7226711 - COVER
  • HOSE
  • Also Order Ref. 8 (59CM1060 screw)

7 10H25

  • 10H25 - FTG GREASE STRAIGHT

8 59CM860

  • 59CM860 - SCREW
  • HEX FLANGE
  • Use W/ 7236895 link assy

9 59CM1060

  • 59CM1060 - SCREW
  • Use W/ 7194411 link assy

10 4DM8

  • 4DM8 - NUT HEX
  • Use W/ 7236895 link assy

11 4DM10

  • 4DM10 - NUT HEX
  • Use W/ 7194411 link assy

12 7115437

  • 7115437 - SWIVEL ASSEMBLY
  • Ref. 11-22

13 6686678

  • 6686678 - PLUG

14 6689035

  • 6689035 - SEAL

15 6689036

  • 6689036 - RING WEAR

16 6689622

  • 6689622 - SEAL DUST

17 6816599

  • 6816599 - NUT

18 7115434

  • 7115434 - BASE HYD

19 7115436

  • 7115436 - SWIVEL HYD
  • Also order Ref. 11

20 7135580

  • 7135580 - O-RING

21 7135631

  • 7135631 - SEAL DUST

22 3GM640

  • 3GM640 - SCREW

23 58K10

  • 58K10 - O RING 10

24 58K015

  • 58K015 - O-RING 10

25 7368558

  • 7368558 - X-CHANGE HYDRAULIC
  • Ref. 10 & 24-35 - Was 7344287

26 6680402

  • 6680402 - SEAL

27 6680998

  • 6680998 - RING

28 6683233

  • 6683233 - O-RING

29 23J32

  • 23J32 - RING SNAP
  • Was - 21GM810

30 6688634

  • 6688634 - SEAL PIN

31 6690161

  • 6690161 - SEAL PIN

32 6815592

  • 6815592 - SPRING

33 7344288

  • 7344288 - HEAD X-CHANGE

34 7345192

  • 7345192 - PISTON PIN

35 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

36 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

37 7194411

  • 7194411 - LINK
  • HYD X-CHANGE
  • Ref. 2-4
  • 7-9
  • & 37-39 - Use W/extendable arm

38 7196810

  • 7196810 - BUSHING
  • WEAR

39 7236897

  • 7236897 - PLATE
  • COVER
  • Use w/ 7236895 link assy

40 7197895

  • 7197895 - PLATE
  • Use W/ 7194411 link assy
