Bobcat
/
E35
/

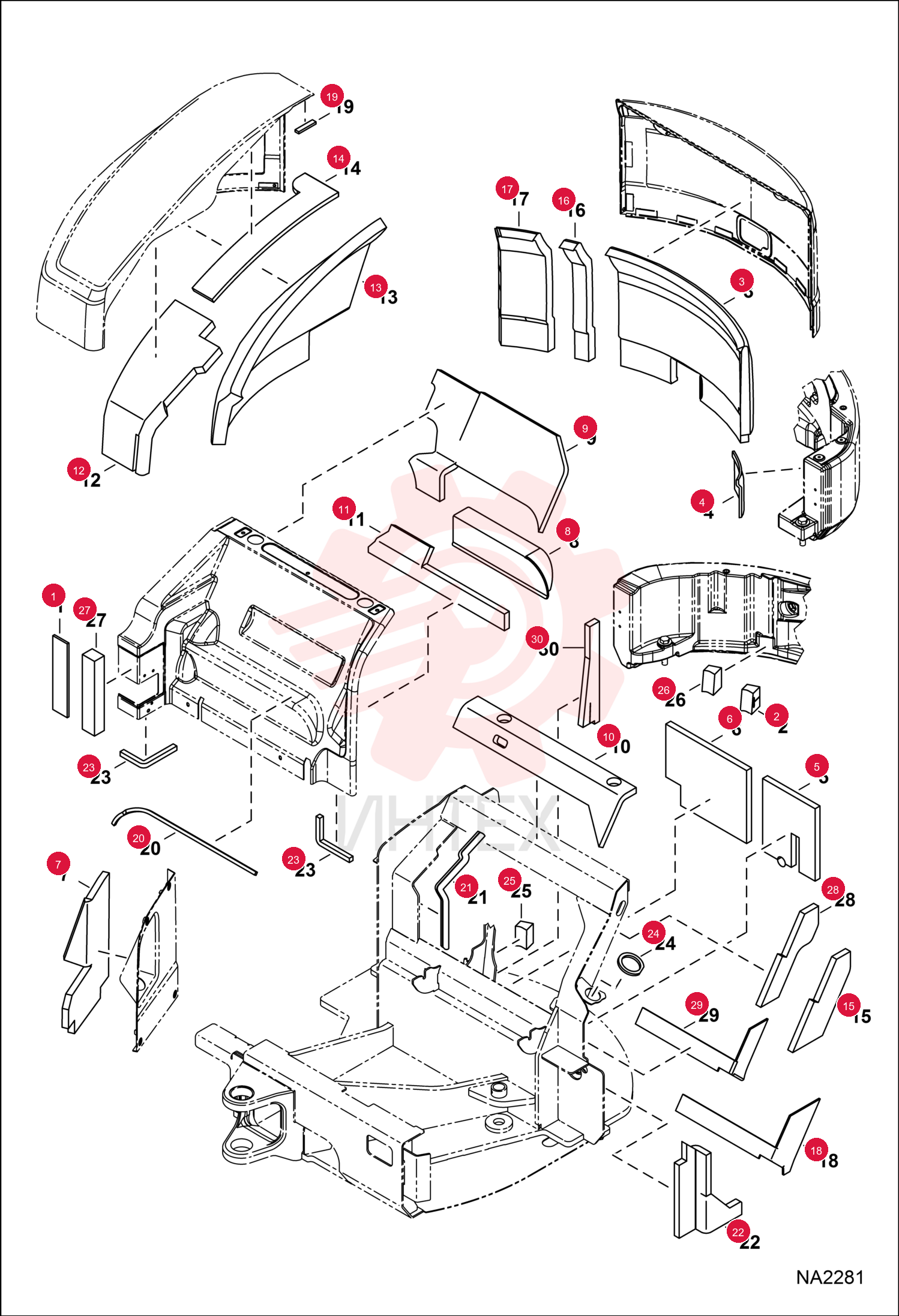

SEAL, RH PANEL 7156375

SEAL, RH PANEL 7156375

SEAL, RH PANEL 7156375

1 7156375

  • 7156375 - SEAL
  • RH PANEL
  • 19 mm (.75") thick

2 7159174

  • 7159174 - INSULATION
  • DOOR REAR

3 7159175

  • 7159175 - INSULATION
  • REAR DOOR

4 7159239

  • 7159239 - INSULATION
  • ENG

5 7159258

  • 7159258 - INSULATION
  • ENG

6 7159354

  • 7159354 - INSULATION
  • PANEL LH

7 7159358

  • 7159358 - INSULATION
  • PANEL ENG

8 7159359

  • 7159359 - INSULATION
  • PANEL ENG

9 7159457

  • 7159457 - INSULATION
  • ENG

10 7159467

  • 7159467 - INSULATION
  • ENG

11 7168803

  • 7168803 - INSULATION
  • COVER RH

12 7168804

  • 7168804 - INSULATION
  • COVER RH

13 7168806

  • 7168806 - INSULATION
  • COVER RH

14 7169594

  • 7169594 - SEAL
  • RADIATOR

15 7169595

  • 7169595 - INSULATION
  • DOOR REAR

16 7170795

  • 7170795 - SEAL
  • COVER

17 7172738

  • 7172738 - SEAL
  • ENG

18 7174487

  • 7174487 - SEAL
  • BULB

19 7174494

  • 7174494 - INSULATION
  • ENG

20 7175504

  • 7175504 - SEAL
  • ENG

21 7176171

  • 7176171 - INSULATION
  • PANEL LH

22 7181883

  • 7181883 - INSULATION
  • BLOCK
  • if equipped

23 7181884

  • 7181884 - INSULATION
  • BLOCK
  • if equipped

24 7237649

  • 7237649 - FOAM
  • HVAC
  • 51 mm (2") thick

25 7240857

  • 7240857 - INSULATION
  • ENG

26 7240858

  • 7240858 - INSULATION
  • ENG

27 7244158

  • 7244158 - INSULATION
  • RADIATOR
