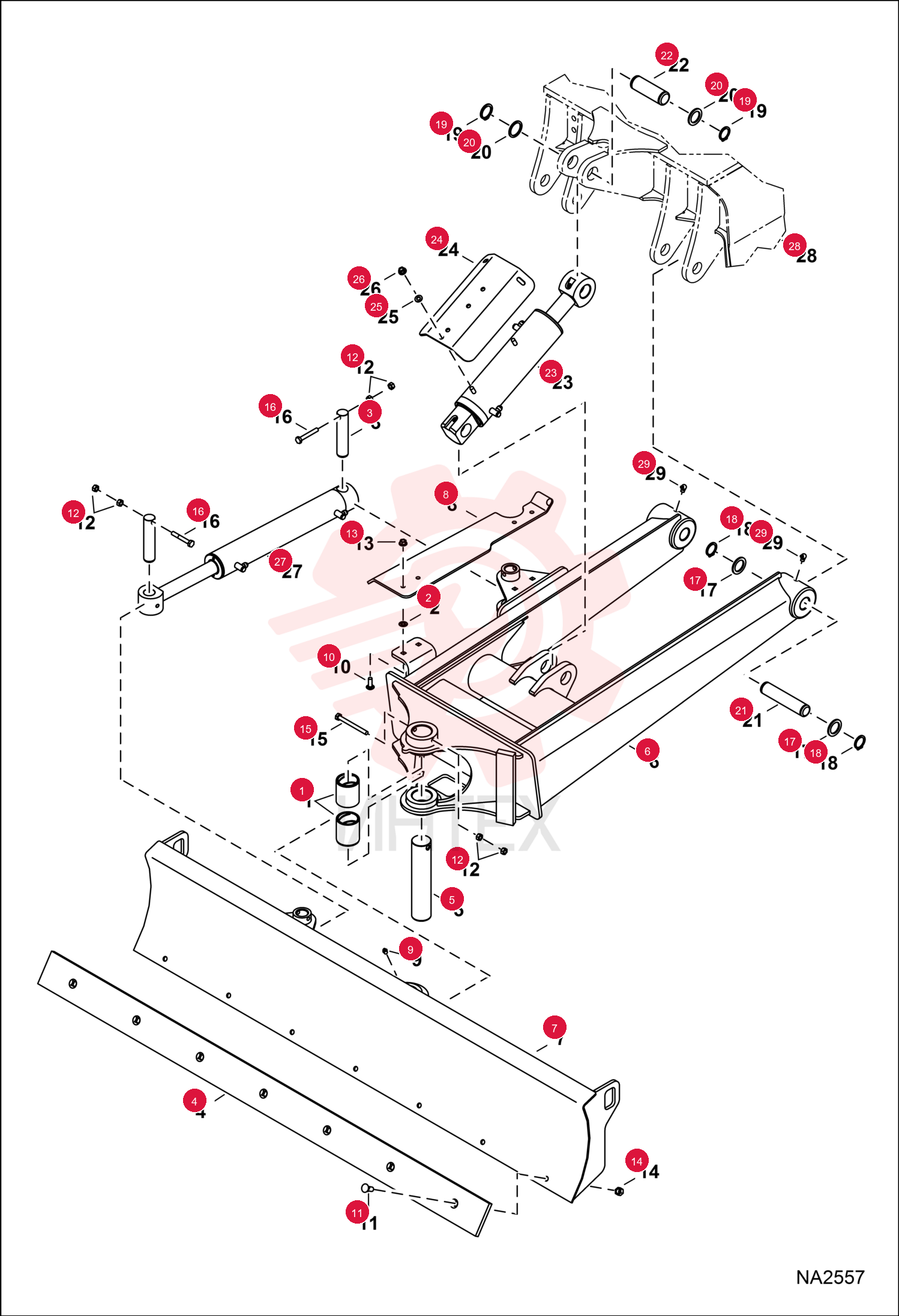

BUSHING, PRESS FIT 6597689 (2)

BUSHING, PRESS FIT 6597689 (2)

BUSHING, PRESS FIT 6597689 (2)

1 6597689

  • 6597689 - BUSHING
  • PRESS FIT

2 6674264

  • 6674264 - RETAINER BOLT

3 6702935

  • 6702935 - PIN
  • PIVOT

4 7208977

  • 7208977 - EDGE
  • CUTTING

5 7142514

  • 7142514 - PIN
  • PIVOT

6 7142551

  • 7142551 - FRAME
  • BLADE ANGLE EXC

7 7213066

  • 7213066 - BLADE
  • ANGLE EXC

8 7153741

  • 7153741 - GUARD
  • CYLINDER

9 10H25

  • 10H25 - FTG GREASE STRAIGHT

10 28CM1030

  • 28CM1030 - BOLT CARRIAGE 8.8

11 39C820

  • 39C820 - BOLT

12 4DM10

  • 4DM10 - NUT HEX

13 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

14 63D8

  • 63D8 - NUT

15 7CM10110

  • 7CM10110 - SCREW HEX HD 10.9

16 7CM1070

  • 7CM1070 - SCREW HEX HD 10.9

17 6534111

  • 6534111 - WASHER
  • 5

18 6534154

  • 6534154 - RING
  • RETAINER

19 6665618

  • 6665618 - RING
  • SNAP

20 6666549

  • 6666549 - WASHER

21 7142311

  • 7142311 - PIN
  • PIVOT

22 7142313

  • 7142313 - PIN
  • PIVOT

23 7301184

  • 7301184 - SHIELD

24 25E17

  • 25E17 - WASHER FLAT PLAIN

25 43DM10

  • 43DM10 - NUT FLANGED HEX

26 12H15

  • 12H15 - FTG GREASE 90
