Bobcat
/
E42
/

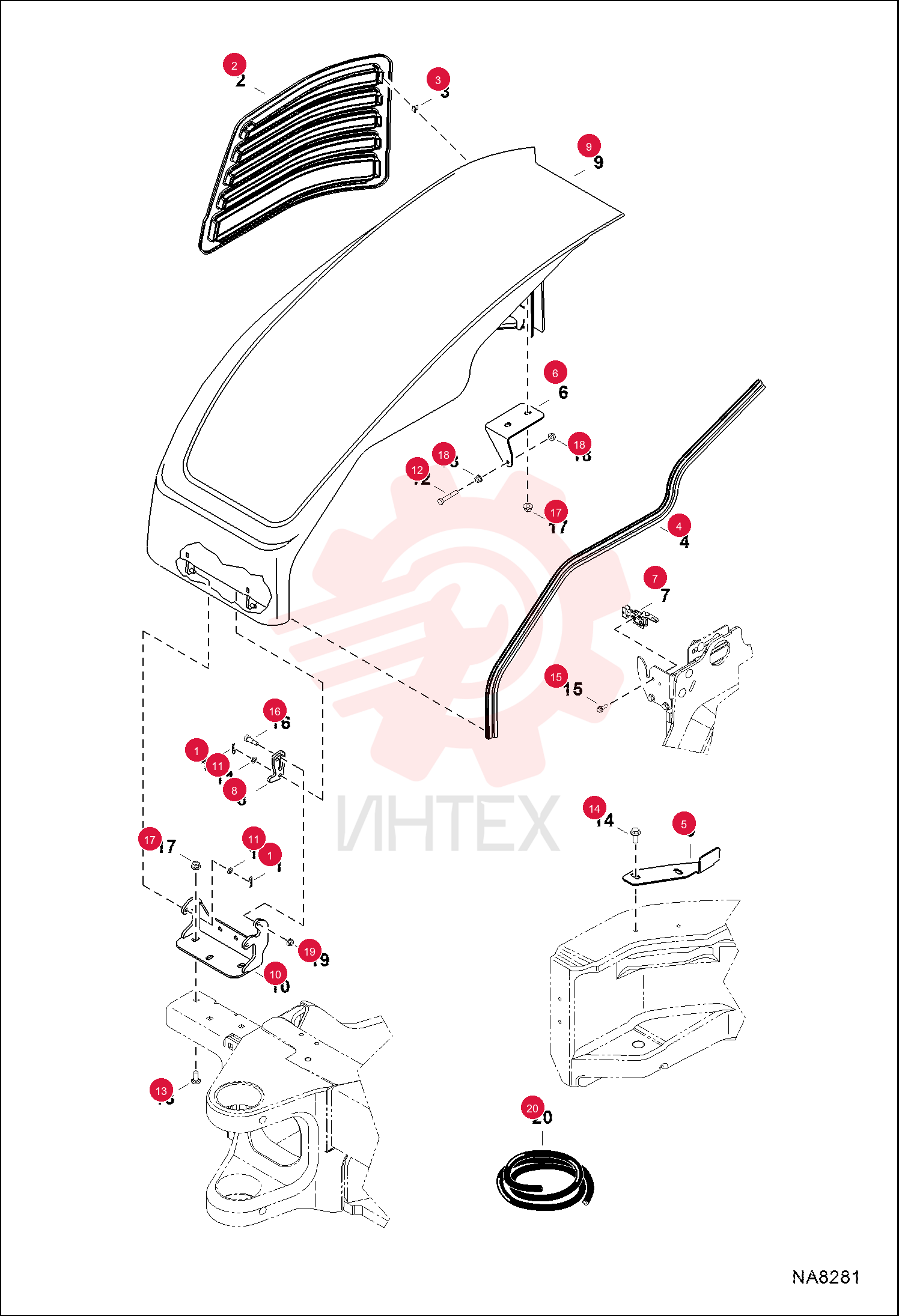

PIN 5 6513495 (6)

PIN 5 6513495 (6)

PIN 5 6513495 (6)

1 6513495

  • 6513495 - PIN 5

2 7177100

  • 7177100 - SCREEN
  • OUTER

3 7178670

  • 7178670 - CLIP

4 7184225

  • 7184225 - BRACKET

5 7191716

  • 7191716 - BRACKET
  • LATCH

6 7206615

  • 7206615 - LATCH
  • COVER

7 7225801

  • 7225801 - BRACKET
  • HOLDING

8 7226791

  • 7226791 - HINGE
  • COVER

9 15EM80

  • 15EM80 - WASHER

10 1CM850

  • 1CM850 - BOLT

11 28CM1025

  • 28CM1025 - BOLT CARRIAGE 8.8

12 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

13 29CM620

  • 29CM620 - SCREW FLGD HEX CAP

14 38C610

  • 38C610 - SCREW SHOULDER

15 43DM10

  • 43DM10 - NUT FLANGED HEX

16 43DM8

  • 43DM8 - NUT FLANGED HEX

17 97D5

  • 97D5 - NUT FLGD HEX LOCK

18 7160901

  • 7160901 - SEAL
  • BULB
  • bulk - sold per foot
