Главная
/
Бренды
/
Bobcat
/
E42
/

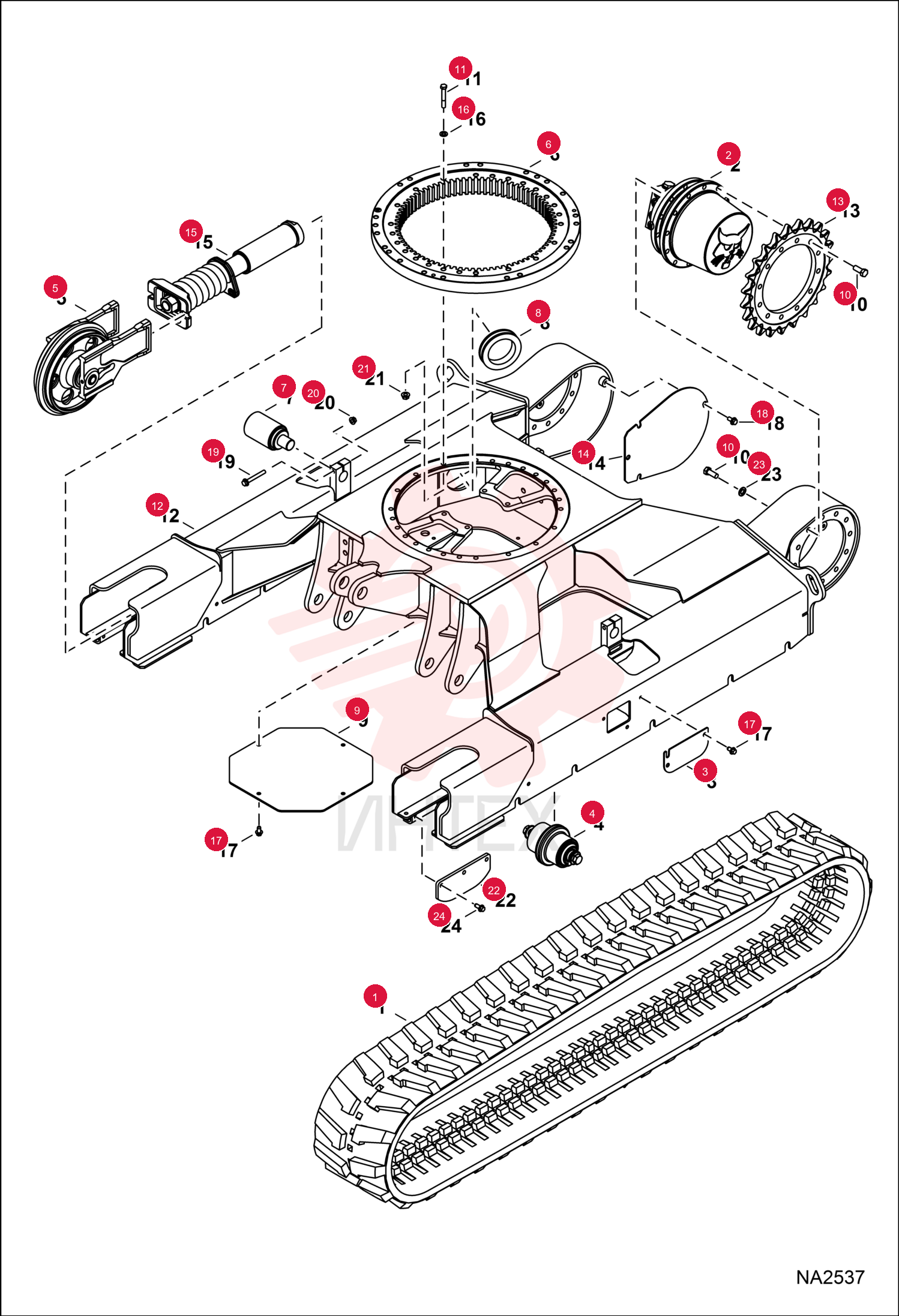

COVER 6596723 (2)

COVER 6596723 (2)

COVER 6596723 (2)

1 6596723

  • 6596723 - COVER

2 6692961

  • 6692961 - RING
  • SLEW

3 7020867

  • 7020867 - ROLLER
  • TRACK
  • Was 6692966

4 7127210

  • 7127210 - GROMMET

5 7328146

  • 7328146 - COVER ACCESS
  • Was 7142236

6 55CM1435

  • 55CM1435 - SCREW

7 7CM1290

  • 7CM1290 - SCREW

8 7142549

  • 7142549 - UNDERCARRIAGE

9 7199007

  • 7199007 - SPROCKET
  • MACHINED
  • Was 7162768SUB

10 7167108

  • 7167108 - COVER
  • MOTOR

11 18EM1224

  • 18EM1224 - WASHER HARDENED PLN

12 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

13 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

14 29CM1080

  • 29CM1080 - SCREW

15 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

16 7334195

  • 7334195 - NUT HEX
  • Was 51DM12

17 6596396

  • 6596396 - PLATE
  • guide - steel track

18 18EM1426

  • 18EM1426 - WASHER

19 26GM10025

  • 26GM10025 - SCREW HEX THRDRLG
