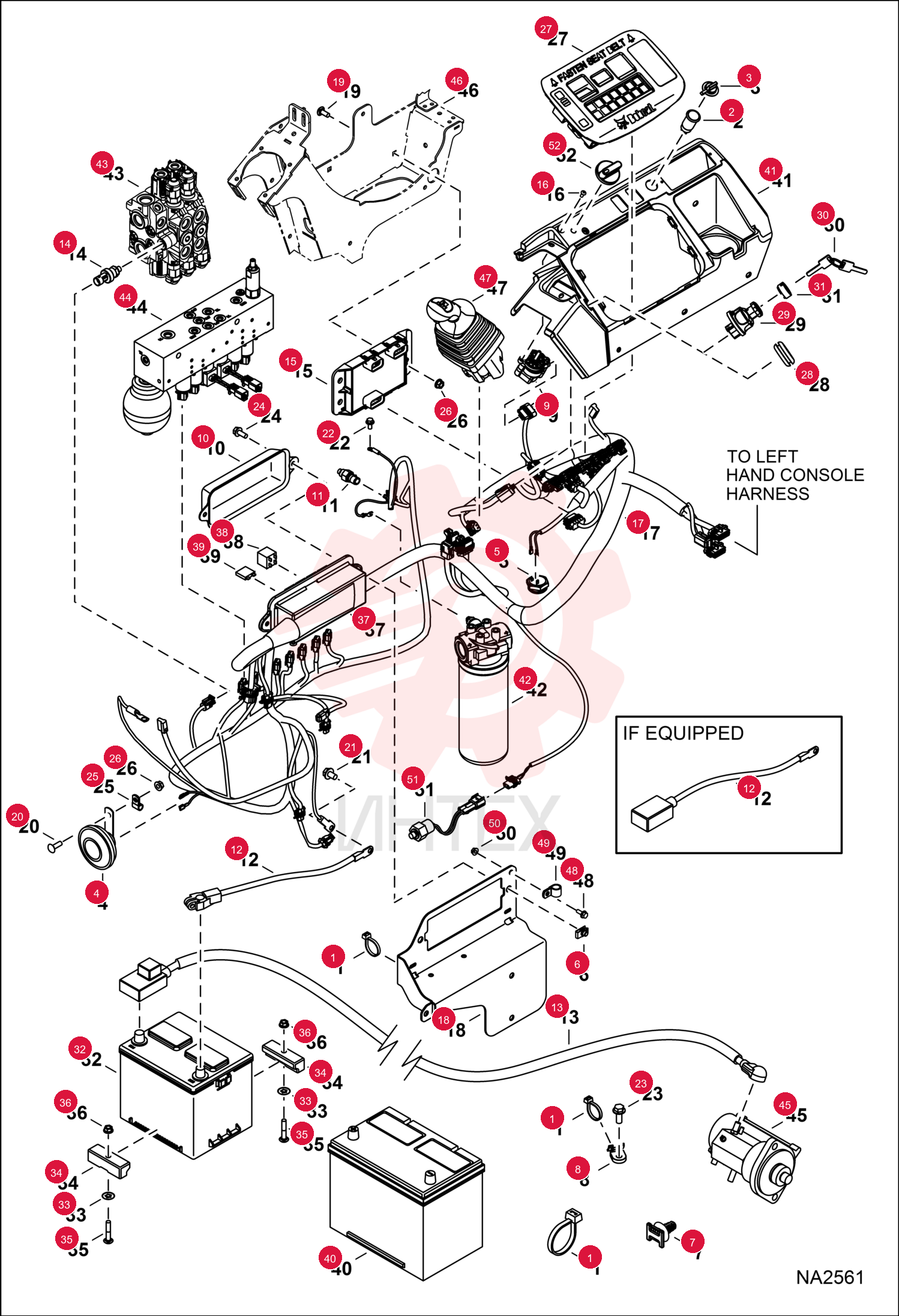

STRAP, TIE 6624289 (4)

STRAP, TIE 6624289 (4)

STRAP, TIE 6624289 (4)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6664223

  • 6664223 - OUTLET ELECTRICAL

3 6664224

  • 6664224 - CAP

4 6671106

  • 6671106 - ALARM

5 6675705

  • 6675705 - ALARM

6 6676169

  • 6676169 - NUT

7 7015668

  • 7015668 - MOUNT
  • STRAP TIE
  • Was 6678666

8 6679034

  • 6679034 - MOUNT

9 7281258

  • 7281258 - CONTROL THROTTLE
  • Was 6698640

10 6716621

  • 6716621 - COVER
  • FUSE

11 6727869

  • 6727869 - SENDER
  • HYD TEMP

12 6807431

  • 6807431 - CABLE
  • NEGATIVE

13 6809043

  • 6809043 - CABLE
  • POSITIVE

14 7320663

  • 7320663 - SENSOR PRESS
  • Was 7025582

15 7010112

  • 7010112 - CONTROLLER
  • THROTTLE AIC

16 7135909

  • 7135909 - SCREW

17 7205968

  • 7205968 - HARNESS
  • CONSOLE RH
  • Was 7175754

18 7185586

  • 7185586 - BRACKET
  • RELAY CENTER

19 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

20 28CM825

  • 28CM825 - BOLT CARRIAGE 8.8

21 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP

22 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

23 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

24 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

25 30H22

  • 30H22 - CLIP INSULATED

26 43DM8

  • 43DM8 - NUT FLANGED HEX

27 7021081

  • 7021081 - CONTROLLER
  • KEYED PANEL
  • W/selectable aux hyd flow

28 7021081REM

  • 7021081REM - CONTROLLER KEYED PANEL
  • W/selectable aux hyd flow

29 7021082

  • 7021082 - CONTROLLER
  • KEYLESS PANEL
  • W/selectable aux hyd flow

30 7021082REM

  • 7021082REM - CONTROLLER KEYLESS PANEL
  • W/selectable aux hyd flow

31 6676922

  • 6676922 - PLUG

32 6693245

  • 6693245 - SWITCH
  • IGN

33 6693241

  • 6693241 - KEY (2)
  • ignition - single key W/O ring

34 7000328

  • 7000328 - ADAPTER SWITCH

35 7269858

  • 7269858 - BATTERY WET 540 CCA
  • - Was 6670251

36 6675859

  • 6675859 - RETAINER

37 7120672

  • 7120672 - TIE DOWN

38 28CM845

  • 28CM845 - BOLT

39 43DM8

  • 43DM8 - NUT FLANGED HEX

40 6718659

  • 6718659 - HOUSING FUSE RELAY

41 6679820

  • 6679820 - SWITCH
  • RELAY MAGNETIC

42 6654803

  • 6654803 - FUSE 5A

43 6654805

  • 6654805 - FUSE 10A

44 6654806

  • 6654806 - FUSE
  • 15A

45 6625575

  • 6625575 - FUSE
  • 20A

46 6702444

  • 6702444 - FUSE 25A 5

47 7312552

  • 7312552 - BATTERY 650 CCA DRY
  • - Was 6674687

48 7220732

  • 7220732 - JOYSTICK
  • RH
  • RH

49 29CM616

  • 29CM616 - SCREW FLGD HEX CAP

50 30H34

  • 30H34 - CLAMP

51 43DM6

  • 43DM6 - NUT FLANGED HEX

52 7008933

  • 7008933 - SWITCH
  • PRESS OIL HYD

53 7022367

  • 7022367 - KNOB
