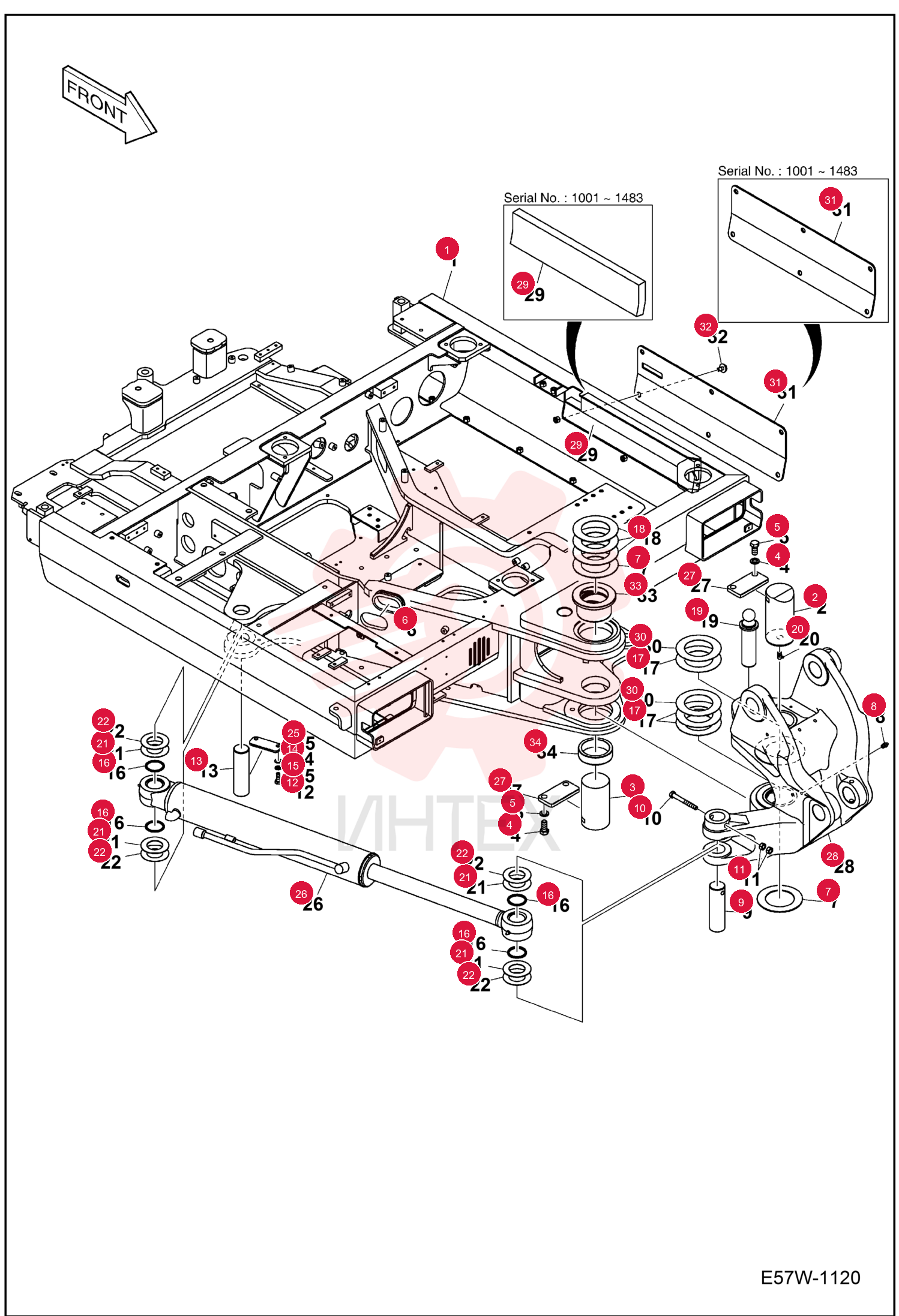

FRAME, MAIN 7287708

FRAME, MAIN 7287708

FRAME, MAIN 7287708

1 7287708

  • 7287708 - FRAME
  • MAIN
  • W/Ref. 31 & 32

2 7322922

  • 7322922 - FRAME MAIN
  • W/Ref. 31 & 32

3 7367843

  • 7367843 - FRAME MAIN

4 7349769

  • 7349769 - FRAME MAIN

5 7288057

  • 7288057 - PIN
  • LOCK

6 7288056

  • 7288056 - PIN
  • LOCK

7 7007647

  • 7007647 - BOLT M16X2.0X35

8 7029492

  • 7029492 - WASHER
  • SPRING

9 7287759

  • 7287759 - GUIDE
  • RUBBER

10 7006329

  • 7006329 - SHIM

11 7007894

  • 7007894 - FITTING GREASE

12 7022888

  • 7022888 - PIN

13 7007692

  • 7007692 - BOLT

14 7007799

  • 7007799 - NUT

15 7007630

  • 7007630 - BOLT

16 7288048

  • 7288048 - PIN

17 7007835

  • 7007835 - WASHER SPRING

18 7007818

  • 7007818 - WASHER PLAIN M10

19 7029361

  • 7029361 - SEAL
  • DUST
  • Was 7004638

20 7004485

  • 7004485 - SHIM

21 7288187

  • 7288187 - SHIM

22 7005849

  • 7005849 - PIN LOCK

23 7327796

  • 7327796 - PIN LOCK

24 7007898

  • 7007898 - FITTING GREASE

25 7005610

  • 7005610 - SHIM 1.0T

26 7005611

  • 7005611 - SHIM 1.6T

27 7288113

  • 7288113 - PLATE

28 7287604

  • 7287604 - CYLINDER
  • BOOM SWING

29 7288114

  • 7288114 - PLATE

30 7287412

  • 7287412 - BRACKET

31 7288201

  • 7288201 - SPONGE

32 7322924

  • 7322924 - PAD RUBBER

33 7004484

  • 7004484 - SHIM

34 7296341

  • 7296341 - COVER
  • SIDE

35 7322923

  • 7322923 - COVER SIDE

36 7005125

  • 7005125 - BOLT SET

37 7327793

  • 7327793 - BUSING UPPER

38 7327795

  • 7327795 - BUSHING LOWER
