E57W
/

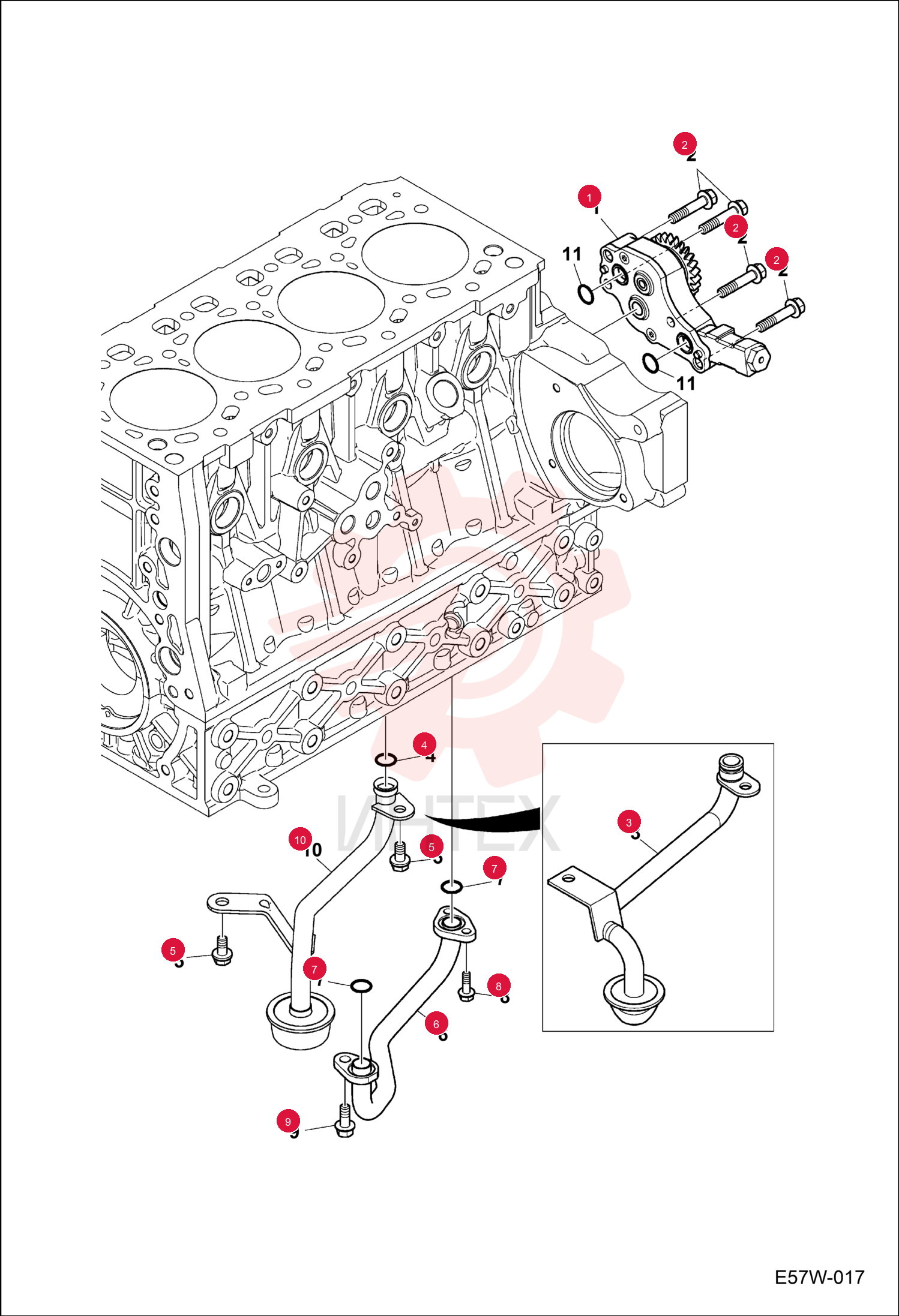

PUMP, OIL 7288127

PUMP, OIL 7288127

PUMP, OIL 7288127

1 7288127

  • 7288127 - PUMP
  • OIL

2 7030277

  • 7030277 - BOLT

3 7288077

  • 7288077 - PIPE OIL
  • NLA - Order Ref. 10 - Was 7288077

4 7030411

  • 7030411 - O-RING

5 7030269

  • 7030269 - BOLT

6 7296241

  • 7296241 - TUBELINE
  • HYD

7 7030411

  • 7030411 - O-RING

8 7030273

  • 7030273 - BOLT

9 7030272

  • 7030272 - BOLT

10 7288077

  • 7288077 - PIPE OIL
