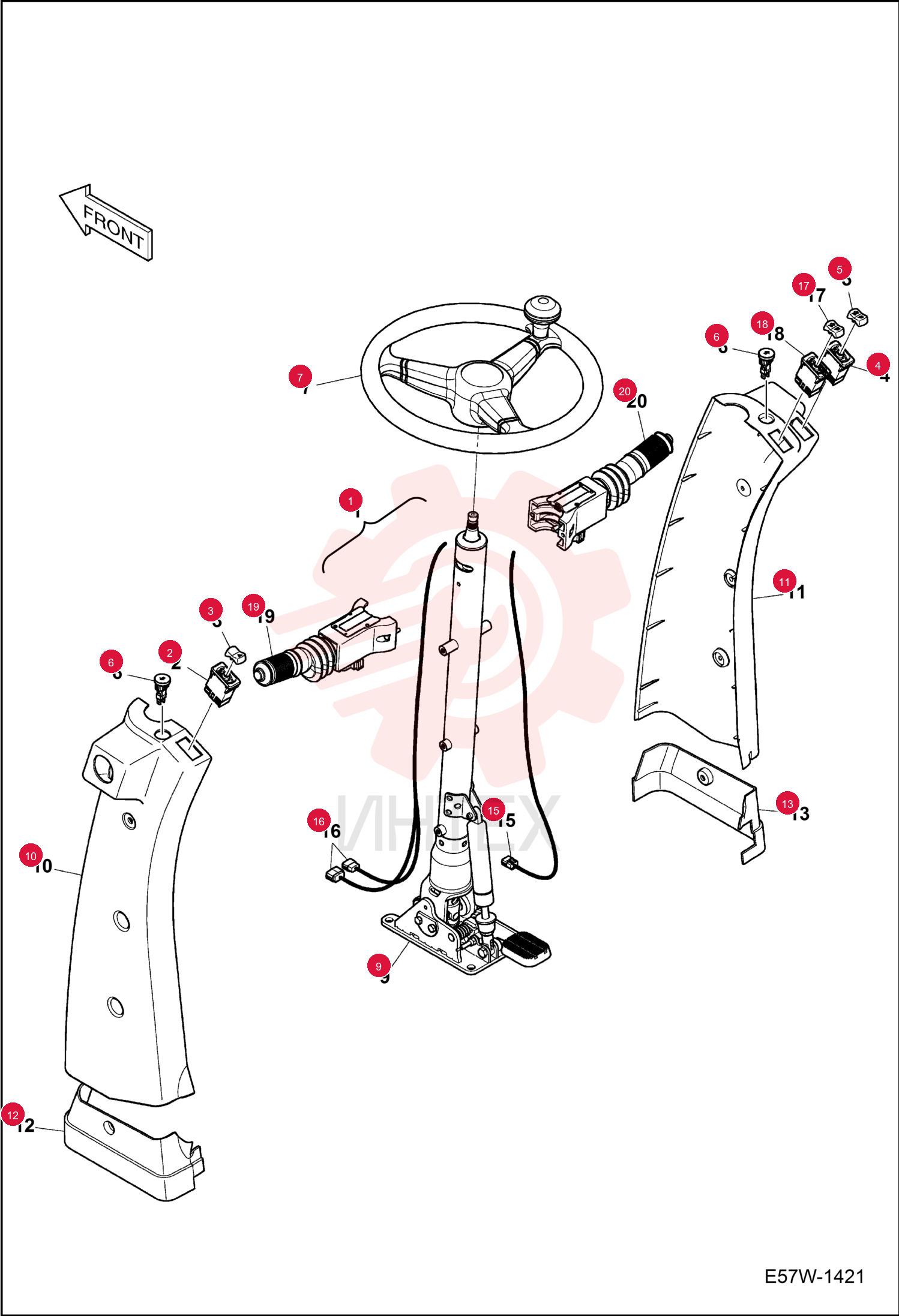

SWITCH 7288211 (2)

SWITCH 7288211 (2)

SWITCH 7288211 (2)

1 7288211

  • 7288211 - SWITCH
  • Ref. 19 & 20

2 7325839

  • 7325839 - SWITCH ROCKER

3 7288241

  • 7288241 - SWITCH
  • IGN

4 7325840

  • 7325840 - SWITCH ROCKER

5 7288242

  • 7288242 - SWITCH
  • IGN

6 7007293

  • 7007293 - PANEL

7 7005635

  • 7005635 - WHEEL STEERING

8 7325841

  • 7325841 - COLUMN STEERING
  • Was 7287529

9 7287596

  • 7287596 - COVER
  • UPPER

10 7325842

  • 7325842 - COVER UPPER

11 7287573

  • 7287573 - COVER
  • LOWER

12 7287574

  • 7287574 - COVER
  • LOWER

13 7287777

  • 7287777 - HARNESS
  • SWITCH

14 7325843

  • 7325843 - HARNESS SWITCH

15 7325844

  • 7325844 - SWITCH COMBINATION

16 7325845

  • 7325845 - SWITCH ROTARY

17 7288237

  • 7288237 - SWITCH
  • COMBINATION

18 7288520

  • 7288520 - SWITCH
