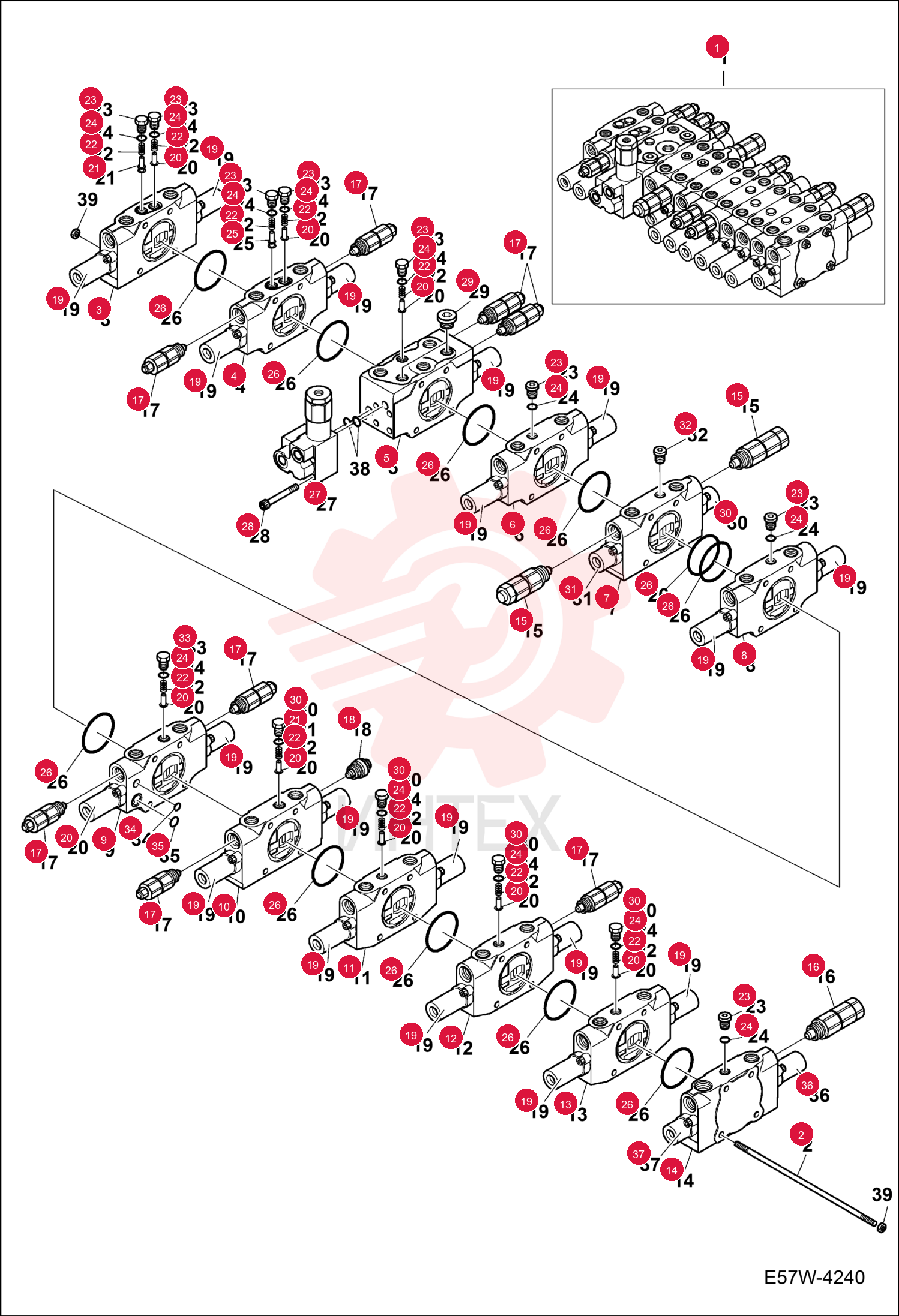

VALVE, CONTROL 7288565

VALVE, CONTROL 7288565

VALVE, CONTROL 7288565

1 7288565

  • 7288565 - VALVE
  • CONTROL
  • Ref. 2-39

2 7006930

  • 7006930 - TIE ROD

3 7296153

  • 7296153 - SECTION
  • VALVE
  • Ref. 19-24

4 7296158

  • 7296158 - SECTION
  • VALVE
  • Ref. 25 & 26

5 7296156

  • 7296156 - SECTION
  • VALVE
  • Ref. 27-29

6 7296162

  • 7296162 - SECTION
  • VALVE

7 7007010

  • 7007010 - BLOCK ASSY-INLET
  • Ref. 30-32

8 7296161

  • 7296161 - SECTION
  • VALVE

9 7296154

  • 7296154 - SECTION
  • VALVE
  • Ref. 33-35

10 7296157

  • 7296157 - SECTION
  • VALVE

11 7296159

  • 7296159 - SECTION
  • VALVE

12 7007056

  • 7007056 - BLOCK ASSY-BOOM SWING

13 7296160

  • 7296160 - SECTION
  • VALVE

14 7020839

  • 7020839 - SECTION
  • VALVE
  • Ref. 36 & 37

15 7296312

  • 7296312 - VALVE
  • RELIEF

16 7296313

  • 7296313 - VALVE
  • RELIEF

17 7296314

  • 7296314 - VALVE
  • RELIEF

18 7006944

  • 7006944 - VALVE SHUT OFF

19 7300036

  • 7300036 - BONNET
  • NSS

20 7006935

  • 7006935 - ORIFICE POPPET

21 7296343

  • 7296343 - POPPET

22 7006936

  • 7006936 - SPRING

23 7006939

  • 7006939 - PLUG

24 7006934

  • 7006934 - ORING

25 7296342

  • 7296342 - POPPET

26 7007937

  • 7007937 - O-RING

27 7006938

  • 7006938 - VALVE ANTI-DRIFT

28 7296349

  • 7296349 - BOLT

29 7003956

  • 7003956 - PLUG

30 7000037

  • 7000037 - BONNET
  • NSS

31 7000038

  • 7000038 - BONNET
  • NSS

32 7006894

  • 7006894 - PLUG

33 7006942

  • 7006942 - PLUG

34 7296350

  • 7296350 - O-RING

35 7007913

  • 7007913 - O-RING

36 7006937

  • 7006937 - ORING

37 7006925

  • 7006925 - NUT
