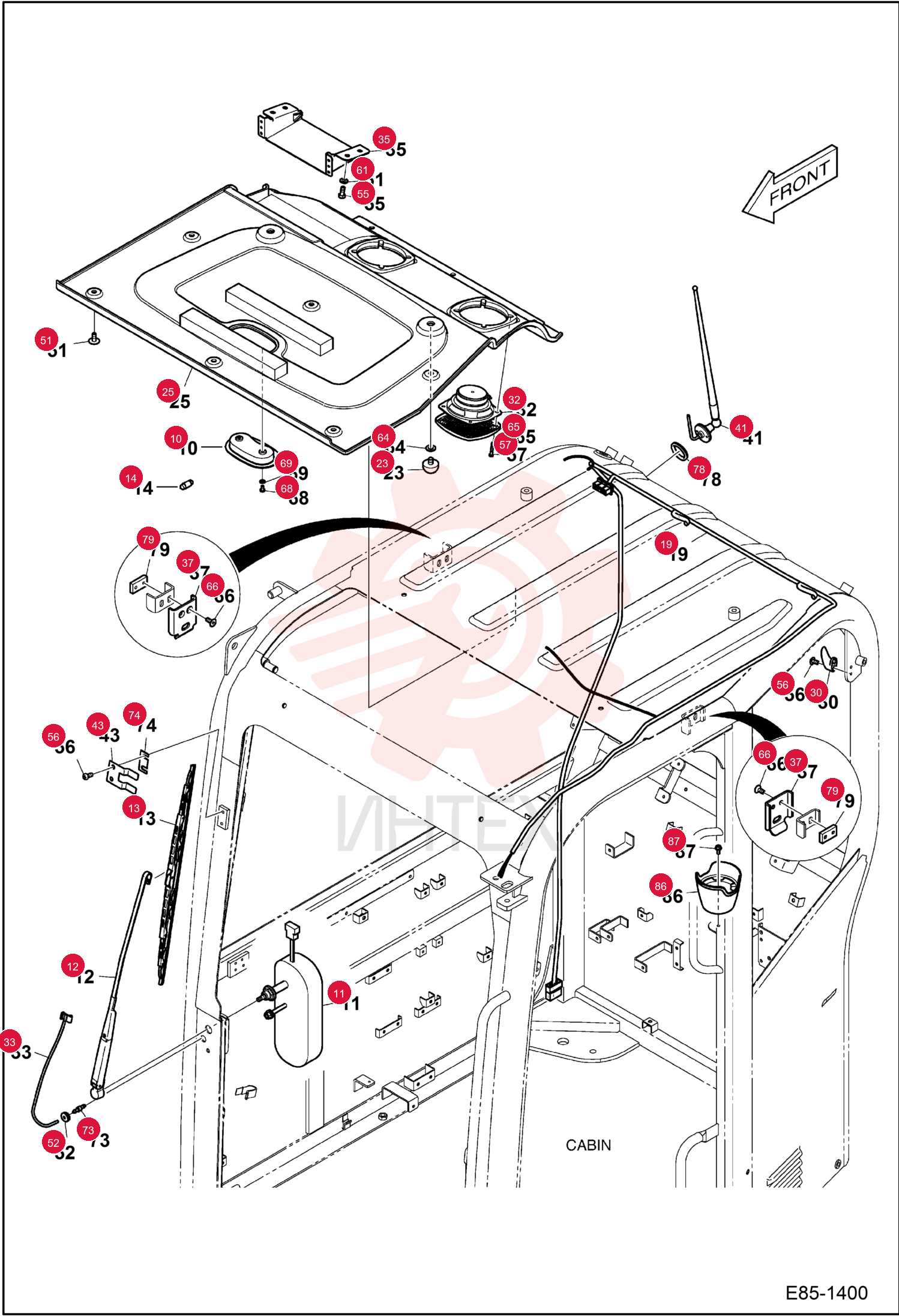

LAMP ROOM 7005022

LAMP ROOM 7005022

LAMP ROOM 7005022

1 7005022

  • 7005022 - LAMP ROOM
  • W/Ref. 14

2 7005684

  • 7005684 - MOTOR WIPER

3 7024751

  • 7024751 - ARM
  • WIPER

4 7006284

  • 7006284 - BLADE
  • WIPER

5 7004887

  • 7004887 - LIGHT BULB 12V/10W

6 7277330

  • 7277330 - SPEAKER

7 7004972

  • 7004972 - STOP
  • RUBBER

8 7028966

  • 7028966 - HEADLINER

9 7005676

  • 7005676 - HOOK COAT

10 7004908

  • 7004908 - SPEAKER

11 7004970

  • 7004970 - NOZZLE WIPER MOTOR

12 7006186

  • 7006186 - BRACKET

13 7006188

  • 7006188 - BRACKET

14 7005027

  • 7005027 - ANTENNA

15 7006145

  • 7006145 - PLATE

16 7005648

  • 7005648 - RIVET

17 7005680

  • 7005680 - GROMMET

18 7004546

  • 7004546 - BOLT

19 7004547

  • 7004547 - BOLT

20 7004532

  • 7004532 - BOLT

21 7004515

  • 7004515 - WASHER

22 7004512

  • 7004512 - WASHER

23 7005675

  • 7005675 - COVER

24 7004529

  • 7004529 - BOLT

25 7007778

  • 7007778 - BOLT

26 7007810

  • 7007810 - WASHER

27 7004858

  • 7004858 - ADAPTER

28 7005042

  • 7005042 - PLATE WIPER

29 7005681

  • 7005681 - EDGE
  • RUBBER

30 7006621

  • 7006621 - SCREW SET

31 7029086

  • 7029086 - HOLDER
  • CUP

32 7028724

  • 7028724 - BOLT
  • FLANGE
