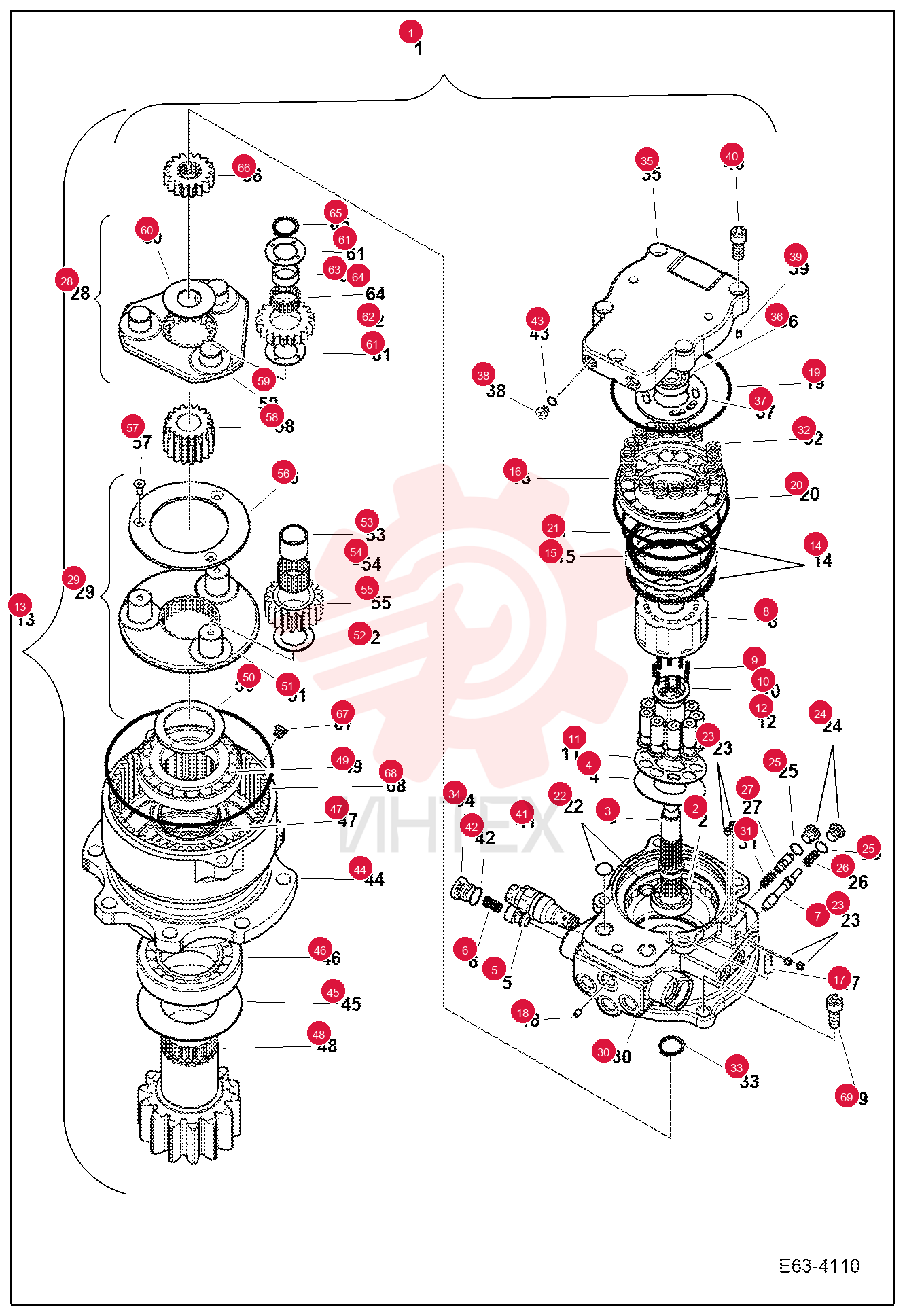

MOTOR, SLEW 7029748 (2)

MOTOR, SLEW 7029748 (2)

MOTOR, SLEW 7029748 (2)

1 7029748

  • 7029748 - MOTOR
  • SLEW

2 7007234

  • 7007234 - BEARING ROLLER

3 7007223

  • 7007223 - SHAFT DRIVE

4 7029932

  • 7029932 - PLATE

5 7007218

  • 7007218 - ROLLER PLUNGER

6 7007219

  • 7007219 - SPRING CHECK

7 7007226

  • 7007226 - SPOOL

8 7029665

  • 7029665 - BLOCK
  • CYL

9 7007201

  • 7007201 - SPRING CYLINDER

10 7029693

  • 7029693 - BUSHING

11 7007238

  • 7007238 - PLATE RETAINER

12 7029920

  • 7029920 - PISTON
  • ASSY

13 7029768

  • 7029768 - KIT
  • GEAR AND SHAFT

14 7007215

  • 7007215 - PLATE FRICTION

15 7007216

  • 7007216 - PLATE SEPARATION

16 7029922

  • 7029922 - PISTON
  • BRAKE

17 7029903

  • 7029903 - PIN

18 7007200

  • 7007200 - ORIFICE

19 7004657

  • 7004657 - O-RING

20 7004656

  • 7004656 - O-RING

21 7004655

  • 7004655 - O-RING

22 7007910

  • 7007910 - O-RING

23 7029940

  • 7029940 - PLUG

24 7029942

  • 7029942 - PLUG

25 7283267

  • 7283267 - O-RING
  • Was 7007906

26 7007229

  • 7007229 - SPRING

27 7007596

  • 7007596 - DIAPHRAGM PLUNGER ASSY

28 7029706

  • 7029706 - KIT
  • GEAR SET

29 7029707

  • 7029707 - KIT
  • GEAR SET

30 7029708

  • 7029708 - CASE

31 7007240

  • 7007240 - SPRING

32 7007225

  • 7007225 - SPRING BRAKE

33 7007873

  • 7007873 - RING SNAP

34 7007199

  • 7007199 - PLUG

35 7029710

  • 7029710 - COVER
  • VALVE

36 7003701

  • 7003701 - BEARING BALL

37 7029935

  • 7029935 - PLATE
  • VALVE

38 7029940

  • 7029940 - PLUG

39 7007858

  • 7007858 - PIN SPRING

40 7007760

  • 7007760 - BOLT SOCKET

41 7030034

  • 7030034 - VALVE
  • RELIEF

42 7007910

  • 7007910 - O-RING

43 7007903

  • 7007903 - O-RING

44 7029709

  • 7029709 - HOUSING
  • MOTOR

45 7007202

  • 7007202 - COVER BEARING

46 7007451

  • 7007451 - BEARING TAPER ROLLER

47 7007231

  • 7007231 - SEAL OIL

48 7029987

  • 7029987 - GEAR
  • SHAFT

49 7007452

  • 7007452 - BEARING TAPER ROLLER

50 7007203

  • 7007203 - COLLAR HALF

51 7007220

  • 7007220 - WASHER NO.3 THRUST

52 7029952

  • 7029952 - RING
  • INNER

53 7007232

  • 7007232 - BEARING NEEDLE

54 7007209

  • 7007209 - GEAR NO.2 PLANET

55 7007213

  • 7007213 - PLATE THRUST

56 7007326

  • 7007326 - BOLT

57 7007211

  • 7007211 - GEAR NO.2 SUN

58 7007212

  • 7007212 - WASHER NO.1 THRUST

59 7007325

  • 7007325 - WASHER THRUST

60 7007208

  • 7007208 - GEAR NO.1 PLANET

61 7024794

  • 7024794 - RING
  • INNER

62 7007233

  • 7007233 - BEARING NEEDLE

63 7007873

  • 7007873 - RING SNAP

64 7007210

  • 7007210 - GEAR NO.1 SUN

65 7029940

  • 7029940 - PLUG

66 7004661

  • 7004661 - O-RING

67 7007760

  • 7007760 - BOLT SOCKET
