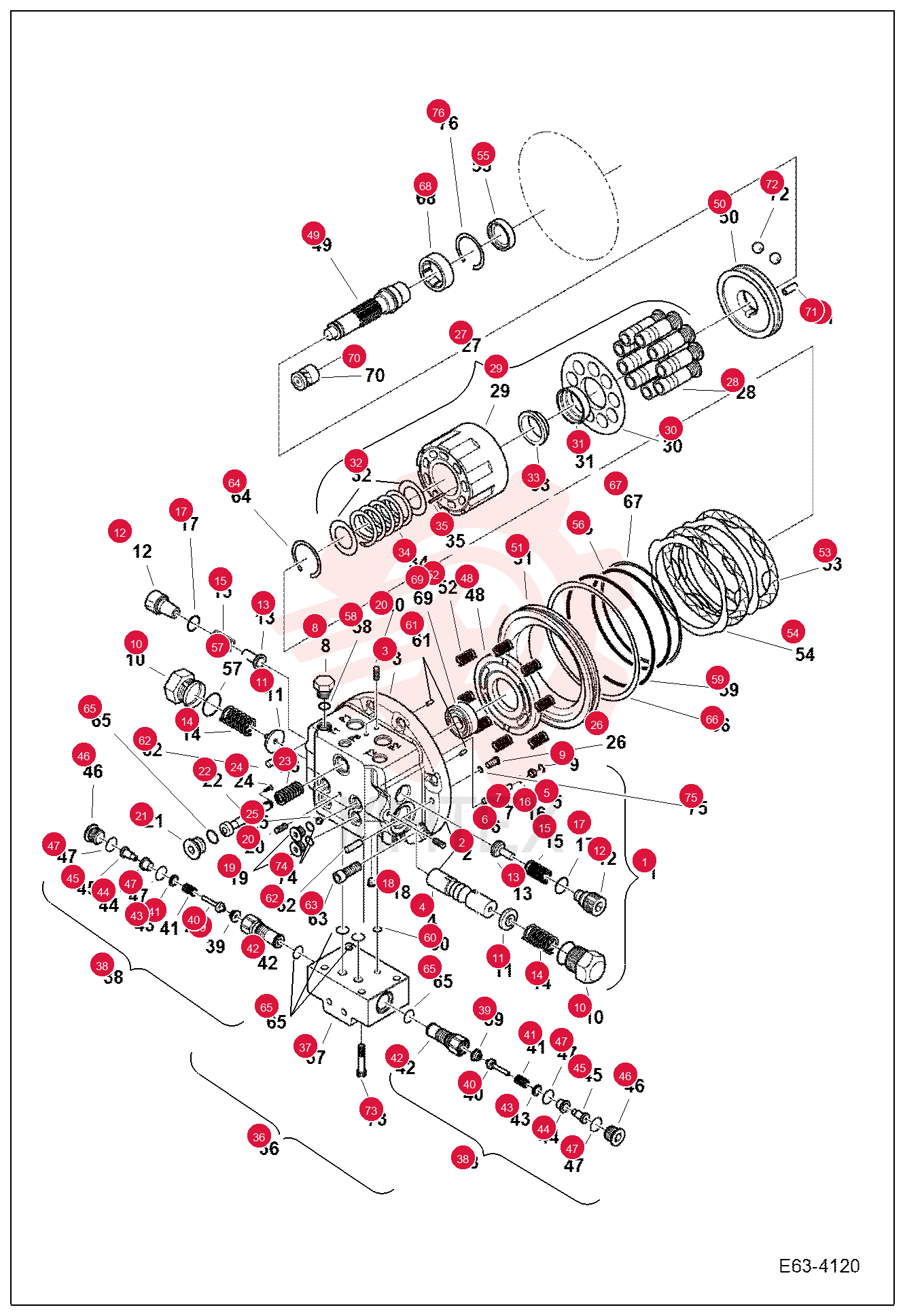

HOUSING, ASSY 7029762

HOUSING, ASSY 7029762

HOUSING, ASSY 7029762

1 7029762

  • 7029762 - HOUSING
  • ASSY
  • W/Ref. 2-26

2 7029763

  • 7029763 - KIT
  • HOUSING MOTOR
  • W/Ref. 3-4

3 7003838

  • 7003838 - SEAT VALVE

4 7003835

  • 7003835 - VALVE

5 7003748

  • 7003748 - SPRING

6 7004734

  • 7004734 - PLUG

7 7003725

  • 7003725 - RING

8 7003801

  • 7003801 - PLUG VP

9 7006995

  • 7006995 - RETAINER SPRING

10 7003802

  • 7003802 - PLUG

11 7003825

  • 7003825 - VALVE

12 7003746

  • 7003746 - SPRING MAIN

13 7003745

  • 7003745 - SPRING CHECK

14 7007904

  • 7007904 - O-RING

15 7007910

  • 7007910 - O-RING

16 7004671

  • 7004671 - PLUG PT 1/8

17 7004727

  • 7004727 - PLUG

18 7285285

  • 7285285 - PLUG
  • Was 7004672

19 7004729

  • 7004729 - PLUG RO

20 7029993

  • 7029993 - SPOOL
  • 2 SPEED

21 7029996

  • 7029996 - SPRING

22 7029970

  • 7029970 - SCREW

23 7007871

  • 7007871 - BALL STEEL

24 7007200

  • 7007200 - ORIFICE

25 7006996

  • 7006996 - CYLINDER BLOCK AND PISTON KIT
  • W/Ref. 28-35

26 7006997

  • 7006997 - PISTON ASSEMBLY
  • W/Ref. 29-31

27 7003719

  • 7003719 - WASHER

28 7007054

  • 7007054 - WASHER

29 7029950

  • 7029950 - KIT
  • VALVE RELIEF
  • W/Ref. 37
  • (2) 38

30 7007004

  • 7007004 - BLOCK VALVE

31 7029949

  • 7029949 - VALVE
  • RELIEF
  • W/Ref. 39-47

32 7007966

  • 7007966 - RING BACK-UP

33 7007000

  • 7007000 - PLATE TIMING

34 7021865

  • 7021865 - GEAR

35 7029934

  • 7029934 - SWASHPLATE

36 7003816

  • 7003816 - PISTON PARKING

37 7003747

  • 7003747 - SPRING

38 7003820

  • 7003820 - PLATE FRICTION

39 7003821

  • 7003821 - PLATE MATING

40 7003793

  • 7003793 - SEAL OIL

41 7003756

  • 7003756 - ORING

42 7007918

  • 7007918 - O-RING

43 7284551

  • 7284551 - O-RING
  • Was 7007909

44 7007954

  • 7007954 - O-RING

45 7007903

  • 7007903 - O-RING

46 7007848

  • 7007848 - PIN PARALLEL

47 7003740

  • 7003740 - PIN PARALLEL

48 7007749

  • 7007749 - BOLT SOCKET

49 7007884

  • 7007884 - RING SNAP

50 7284557

  • 7284557 - O-RING
  • Was 7007911

51 7003770

  • 7003770 - RING BACK-UP

52 7003771

  • 7003771 - RING BACK-UP

53 7003704

  • 7003704 - BEARING ROLLER

54 7003701

  • 7003701 - BEARING BALL

55 7006998

  • 7006998 - PISTON ASSY 2 SPEED

56 7007001

  • 7007001 - PIN PARALLEL

57 7007002

  • 7007002 - PIVOT

58 7007741

  • 7007741 - BOLT SOCKET HEAD M8X45

59 7283267

  • 7283267 - O-RING
  • Was 7007906

60 7007902

  • 7007902 - O-RING

61 7007885

  • 7007885 - RING SNAP
