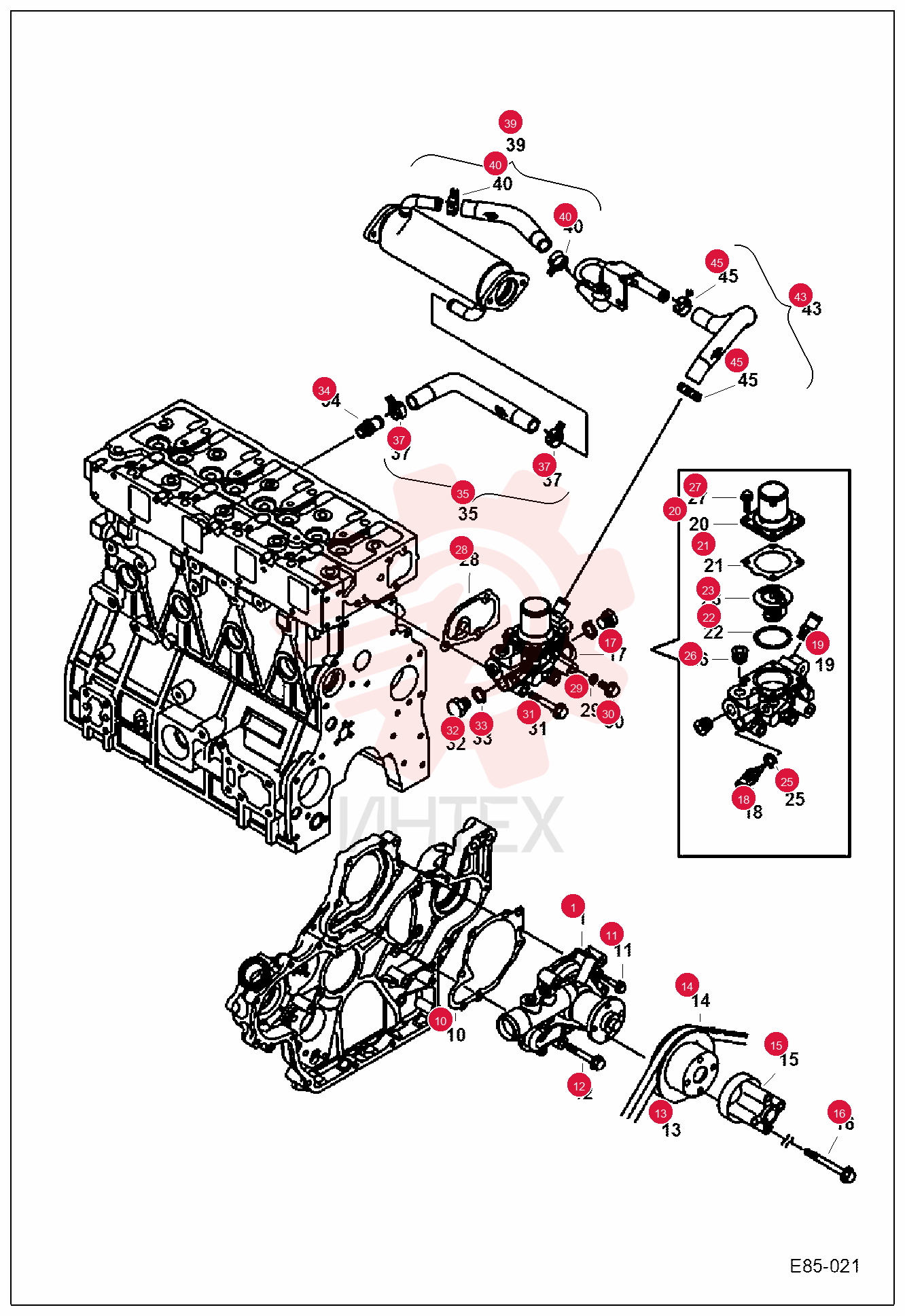

PUMP, WATER 7029318

PUMP, WATER 7029318

PUMP, WATER 7029318

1 7029318

  • 7029318 - PUMP
  • WATER

2 7004231

  • 7004231 - SEAL WASHER

3 7004217

  • 7004217 - GASKET

4 7004078

  • 7004078 - BOLT M6X30

5 7004096

  • 7004096 - BOLT PLATED M8X55

6 7003981

  • 7003981 - PULLEY BELT

7 7010300

  • 7010300 - BELT
  • FAN
  • 1165 mm (45.87") long

8 7004013

  • 7004013 - SPACER FAN

9 7004094

  • 7004094 - BOLT M8X80

10 7028843

  • 7028843 - THERMOSTAT ASSY

11 7007121

  • 7007121 - SENDER
  • TEMP ENG

12 7029213

  • 7029213 - FITTING

13 7007050

  • 7007050 - COVER THERMOSTAT

14 7004218

  • 7004218 - GASKET THERMOSTAT

15 7005114

  • 7005114 - GASKET THERMOSTAT

16 7029462

  • 7029462 - THERMOSTAT

17 7004022

  • 7004022 - SEAL WASHER

18 7004294

  • 7004294 - PLUG PT8/3 STEEL

19 7004097

  • 7004097 - BOLT M6X20

20 7004219

  • 7004219 - GASKET HOUSING

21 7004216

  • 7004216 - GASKET ROUND

22 7004093

  • 7004093 - BOLT M8X12

23 7004098

  • 7004098 - BOLT PLATED M8X60

24 7005077

  • 7005077 - PLUG M16

25 7004215

  • 7004215 - GASKET

26 7029213

  • 7029213 - FITTING

27 7029091

  • 7029091 - HOSE
  • WATER FORMED

28 7028907

  • 7028907 - CLIP
  • HOSE

29 7029096

  • 7029096 - HOSE
  • WATER FORMED

30 7028907

  • 7028907 - CLIP
  • HOSE

31 7029097

  • 7029097 - HOSE
  • WATER FORMED

32 7028907

  • 7028907 - CLIP
  • HOSE
