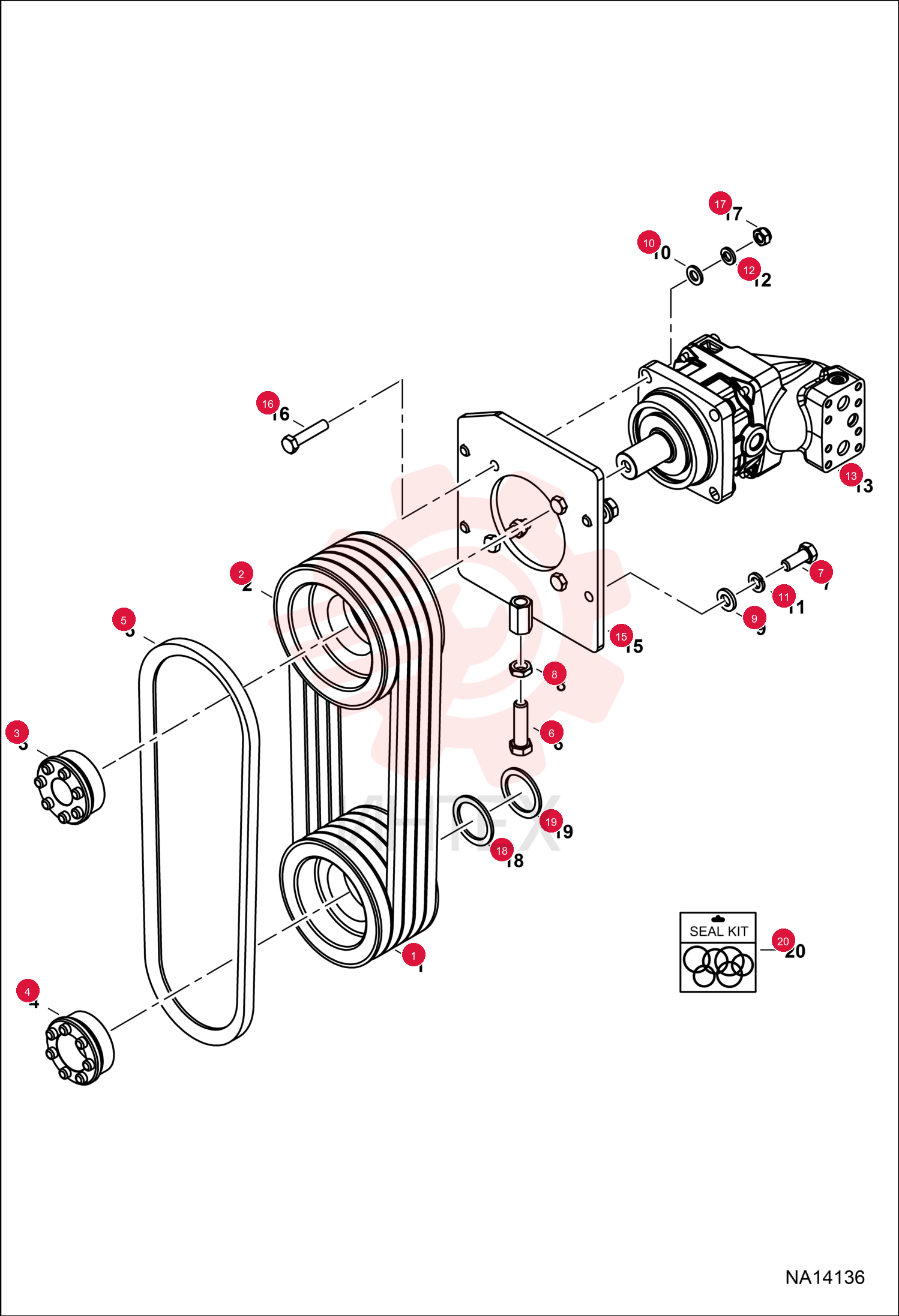

PULLEY 7329533

PULLEY 7329533

PULLEY 7329533

1 7329533

  • 7329533 - PULLEY

2 6687758

  • 6687758 - PULLEY

3 6687602

  • 6687602 - LOCK

4 7315923

  • 7315923 - LOCK

5 7329534

  • 7329534 - BELT

6 7329535

  • 7329535 - BOLT

7 7001586

  • 7001586 - BOLT

8 7329536

  • 7329536 - NUT

9 7001584

  • 7001584 - WASHER

10 7329537

  • 7329537 - WASHER

11 7001542

  • 7001542 - WASHER

12 7001583

  • 7001583 - WASHER

13 7329538

  • 7329538 - HYDRAULIC MOTOR

14 7329539

  • 7329539 - PLATE TENSIONER

15 7329540

  • 7329540 - BOLT

16 7316323

  • 7316323 - NUT LOCK

17 7338584

  • 7338584 - SPACER

18 7315944

  • 7315944 - SPACER

19 7330487

  • 7330487 - KIT SEAL
