Bobcat
/
Loader - Attachment
/

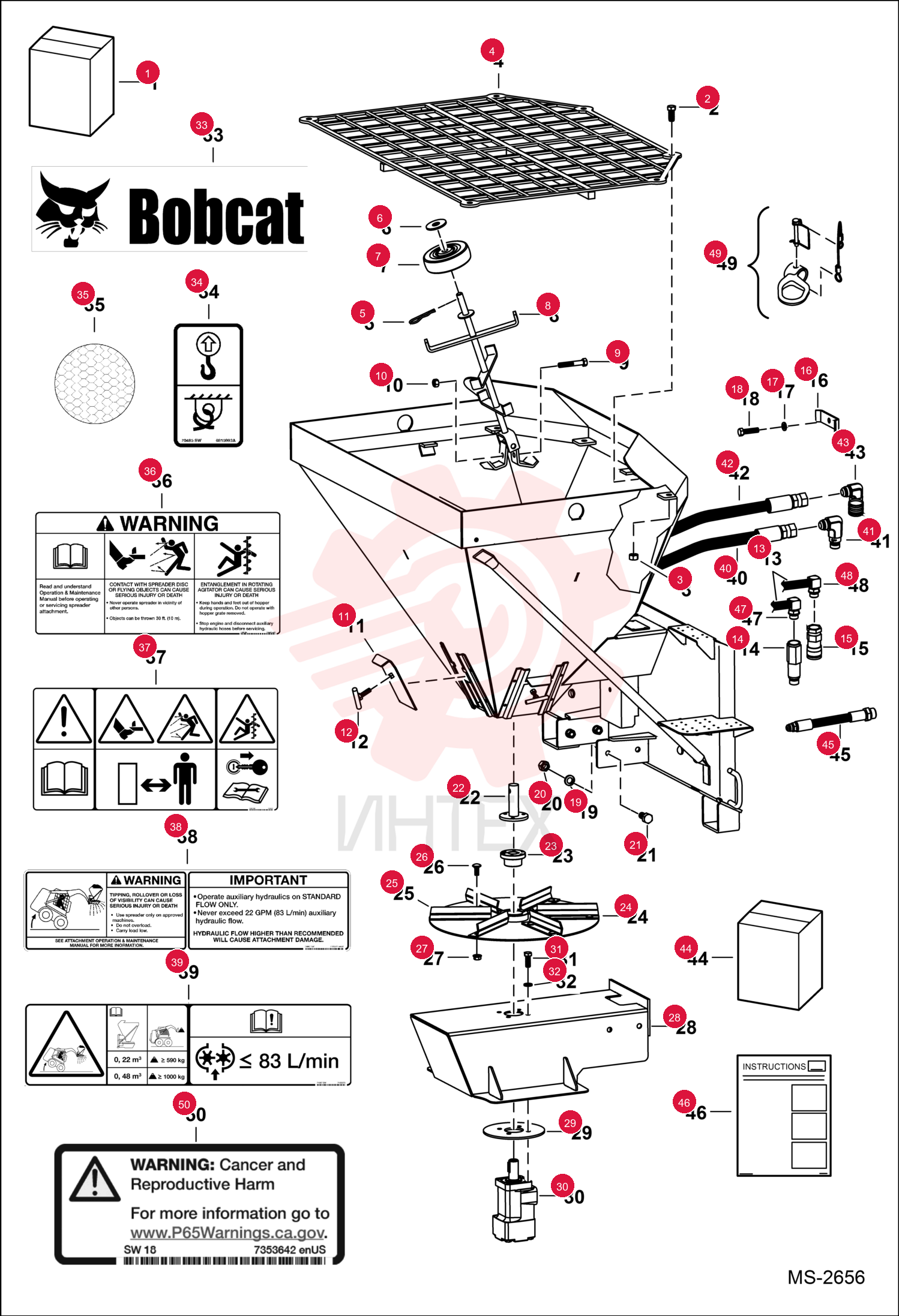

BOLT 6698659

BOLT 6698659

BOLT 6698659

1 6698659

  • 6698659 - BOLT

2 6698660

  • 6698660 - NUT

3 6698661

  • 6698661 - GRATE
  • SPREADER

4 6698662

  • 6698662 - PIN
  • LOCK

5 27E12

  • 27E12 - WASHER

6 6698663

  • 6698663 - WHEEL
  • RUBBER

7 6698664

  • 6698664 - AGITATOR
  • SPREADER

8 17C636

  • 17C636 - BOLT

9 59D6

  • 59D6 - NUT LOCK HEX PT

10 6698665

  • 6698665 - GATE
  • FLOW MATERIAL

11 6698666

  • 6698666 - RETAINER
  • GATE

12 6698667

  • 6698667 - HOSE
  • HYD
  • Use straight couplers

13 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - straight - Was 6674688

14 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

15 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - straight - Was 6672960

16 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

17 6698668

  • 6698668 - CLAMP
  • HOSE

18 4E6

  • 4E6 - WASHER
  • lock

19 17C632

  • 17C632 - BOLT 5

20 4E8

  • 4E8 - WASHER
  • lock

21 63D8

  • 63D8 - NUT

22 17C824

  • 17C824 - BOLT 5

23 6698669

  • 6698669 - AUGER
  • SPREADER

24 6698670

  • 6698670 - BUSHING
  • HUB LOCKING
  • Includes bolts

25 6698671

  • 6698671 - DISC
  • SPREADER

26 6698672

  • 6698672 - BLADE
  • DISC

27 37C512

  • 37C512 - BOLT SQ NECK RND HD
  • carriage

28 6698673

  • 6698673 - NUT

29 6698674

  • 6698674 - MOUNT
  • MOTOR ASSY

30 6698675

  • 6698675 - PLATE
  • SPACER

31 17C616

  • 17C616 - BOLT 5

32 4E6

  • 4E6 - WASHER
  • lock

33 6731332

  • 6731332 - DECAL
  • LOGO BOBCAT AND HEAD
  • logo

34 6815993

  • 6815993 - DECAL
  • LIFT
  • tie down

35 7106627

  • 7106627 - DECAL
  • REFLECTIVE
  • reflective

36 7154516

  • 7154516 - DECAL
  • WARNING

37 7154517

  • 7154517 - DECAL
  • WARNING
  • no-text

38 7155372

  • 7155372 - DECAL
  • WARNING
  • no-text

39 7155373

  • 7155373 - DECAL
  • WARNING
  • no-text

40 7018666

  • 7018666 - HOSE
  • HYD
  • 2642 mm (104") long - Use W/Ref. 41 (90 degree coupler)

41 7246795

  • 7246795 - COUPLER
  • FF MALE
  • - 90 degree - Was 7168432

42 7018667

  • 7018667 - HOSE
  • HYD
  • 2718 mm (107") long - Use W/Ref. 43 (90 degree coupler)

43 7246781

  • 7246781 - COUPLER
  • FF FEMALE
  • - 90 degree - Was 7168433

44 7159900

  • 7159900 - HOSE
  • HYD

45 6987027

  • 6987027 - INSTRUCTIONS

46 7353642

  • 7353642 - DECAL WARNING
