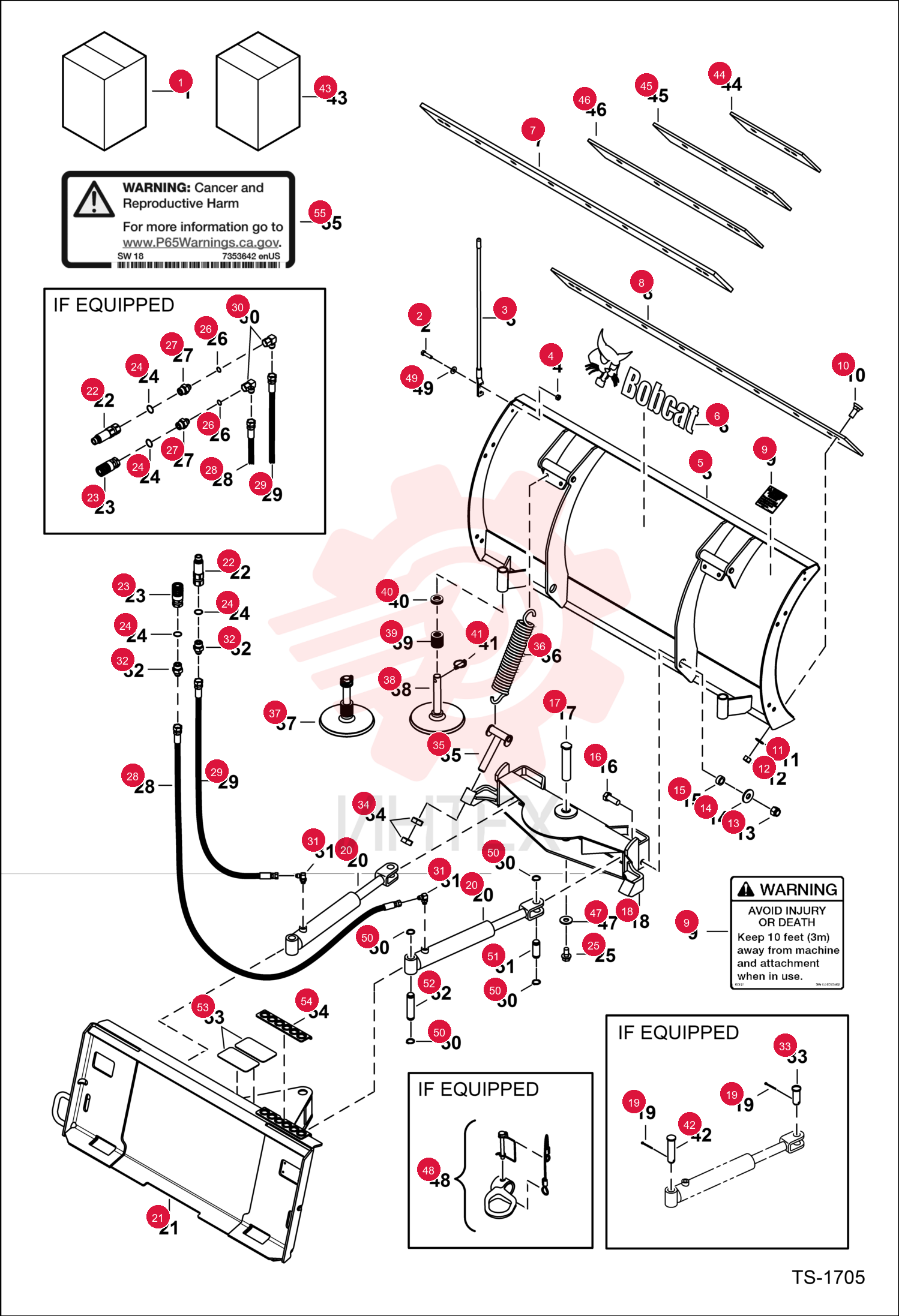

KIT, INDICATOR ROD 6673609
1 6673609
- 6673609 - KIT
- INDICATOR ROD
- Ref. 2-4 & 49
2 17C516
- 17C516 - BOLT
3 62D5
- 62D5 - NUT
4 6673635
- 6673635 - MOLDBOARD
- 84" (2134 mm)
5 6905999
- 6905999 - MOLDBOARD
- 60" (1524 mm)
6 6905151
- 6905151 - MOLDBOARD
- 72" (1829 mm)
7 6673614
- 6673614 - MOLDBOARD
- 96" (2438 mm)
8 6809831
- 6809831 - DECAL
- LOGO BOBCAT AND HEAD
- RH - Was 6727324
9 6905143
- 6905143 - EDGE
- CUTTING RUBBER 72"
- optional
10 6905144
- 6905144 - EDGE
- CUTTING RUBBER 84"
- optional
11 6905145
- 6905145 - EDGE
- CUTTING RUBBER 96"
- optional
12 6906116
- 6906116 - EDGE
- CUTTING RUBBER 60"
- optional
13 6905995
- 6905995 - EDGE
- CUTTING BOLT-ON 60"
- standard steel
14 6905155
- 6905155 - EDGE
- CUTTING BOLT-ON 72"
- standard steel
15 6673634
- 6673634 - EDGE
- CUTTING BOLT-ON 84"
- standard steel
16 6673606
- 6673606 - EDGE
- CUTTING BOLT-ON 96"
- standard steel
17 6583862
- 6583862 - DECAL
- WARNING
- avoid injury
18 39C1032
- 39C1032 - BOLT
- for steel edge - Was 39C1028
19 37C1040
- 37C1040 - BOLT
- for rubber edge
20 4E10
- 4E10 - WASHER
21 93D10
- 93D10 - NUT
- for steel edge - Was 61D10
22 87D10
- 87D10 - NUT
- for rubber edge
23 59D12
- 59D12 - NUT
24 25E28
- 25E28 - WASHER
25 6905186
- 6905186 - BUSHING
26 17C1236
- 17C1236 - BOLT
27 6906639
- 6906639 - PIN
- PIVOT
- 1.00" dia - Use W/ washer & bolt
28 6906104
- 6906104 - PIVOT
- Uses 1.25" pivot pin
29 6673615
- 6673615 - PIVOT WLD
- Uses 1.00" pivot pin
30 1F632
- 1F632 - PIN
31 6906101
- 6906101 - FRAME
- BOB-TACH
- Uses 1.25" pivot pin
32 7246777
- 7246777 - COUPLER
- FF MALE
- - Was 6674688
33 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
34 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
35 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
36 79K12
- 79K12 - O RING 10
37 35C816
- 35C816 - BOLT
- .5" x 1.00"
38 49C1024
- 49C1024 - BOLT
- .625" x 1.50" - Was 31C1020
39 79K10
- 79K10 - O RING 10
40 7132014
- 7132014 - HOSE
- 81" long
41 7170991
- 7170991 - HOSE
- HYD
- 78" long - Used with M-Series loaders - Use W/Ref. 30
42 7274255
- 7274255 - HOSE
- HYD ASSY
- 2133
- 6 mm (84") long
43 7274254
- 7274254 - HOSE
- HYD ASSY
- 1574
- 8 mm (62") long
44 7170990
- 7170990 - HOSE
- HYD
- 56" long - Used with M-Series loaders - Use W/Ref. 30
45 7132013
- 7132013 - HOSE
- 66" long
46 11K7
- 11K7 - ADAPTER
- use W/ 7170991 & 7170990 hyd hose
47 97K6
- 97K6 - O-RING
48 99K6
- 99K6 - O-RING
49 17KB0606
- 17KB0606 - FTG HYD 90 ELBOW
- Was 17KN00005B
50 6906926
- 6906926 - FITTING
- ORIFICE
51 6673602
- 6673602 - PIN
- RAM
52 7D16
- 7D16 - NUT
53 6673613
- 6673613 - REGULATOR
- TENSIONER
54 6673607
- 6673607 - SPRING TR
55 7107683
- 7107683 - SKID
- SHOE
- Was NSS
56 6905348
- 6905348 - SPACER
- Use on earlier skid shoes
57 6905346
- 6905346 - WASHER
- Order 18 per shoe
58 6560382
- 6560382 - PIN
- LOCK
59 6673603
- 6673603 - PIN
60 7167531
- 7167531 - KIT
- EDGE CUTTING
- 60" rubber - Ref. 7
- Ref. 44
- Ref. 45 & (7) each of Ref. 10 (37C1040 bolt) & Ref. 12 (87D10 nut) - Was 6906117
61 7167532
- 7167532 - KIT
- EDGE CUTTING
- 72" rubber - Ref. 7
- (2) of Ref. 45 & (8) each of Ref. 10 (37C1040 bolt) & Ref. 12 (87D10 nut) - Was 6905158
62 6905400
- 6905400 - KIT
- EDGE CUTTING
- 84" rubber - Ref. 7
- Ref. 45
- Ref. 46 & (9) each of Ref. 10 (37C1040 bolt) & Ref. 12 (87D10 nut)
63 6905401
- 6905401 - KIT
- EDGE CUTTING
- 96" rubber - Ref. 7
- (2) of Ref. 46 & (10) each of Ref. 12 (37C1040 bolt) & Ref. 10 (87D10 nut)
64 6905976
- 6905976 - RETAINER 24"
- 24"
65 6905977
- 6905977 - RETAINER 36"
- 36"
66 6905978
- 6905978 - RETAINER 48"
- 48"
67 25E22
- 25E22 - WASHER
- .50" ID - Was 6905026
68 25E26
- 25E26 - WASHER
- .625" ID
69 7161953
- 7161953 - GUIDE
- HOSE ASSY
- Use W/ 7170991 & 7170990 hyd hose
70 25E5
- 25E5 - WASHER
71 22J16
- 22J16 - SNAP RING
72 7273908
- 7273908 - PIN
- PIVOT
73 6714997
- 6714997 - PIN
74 6554100
- 6554100 - TREAD
- SAFETY
75 6716014
- 6716014 - STEP
76 7353642
- 7353642 - DECAL WARNING
