Bobcat
/
Loader - Attachment
/

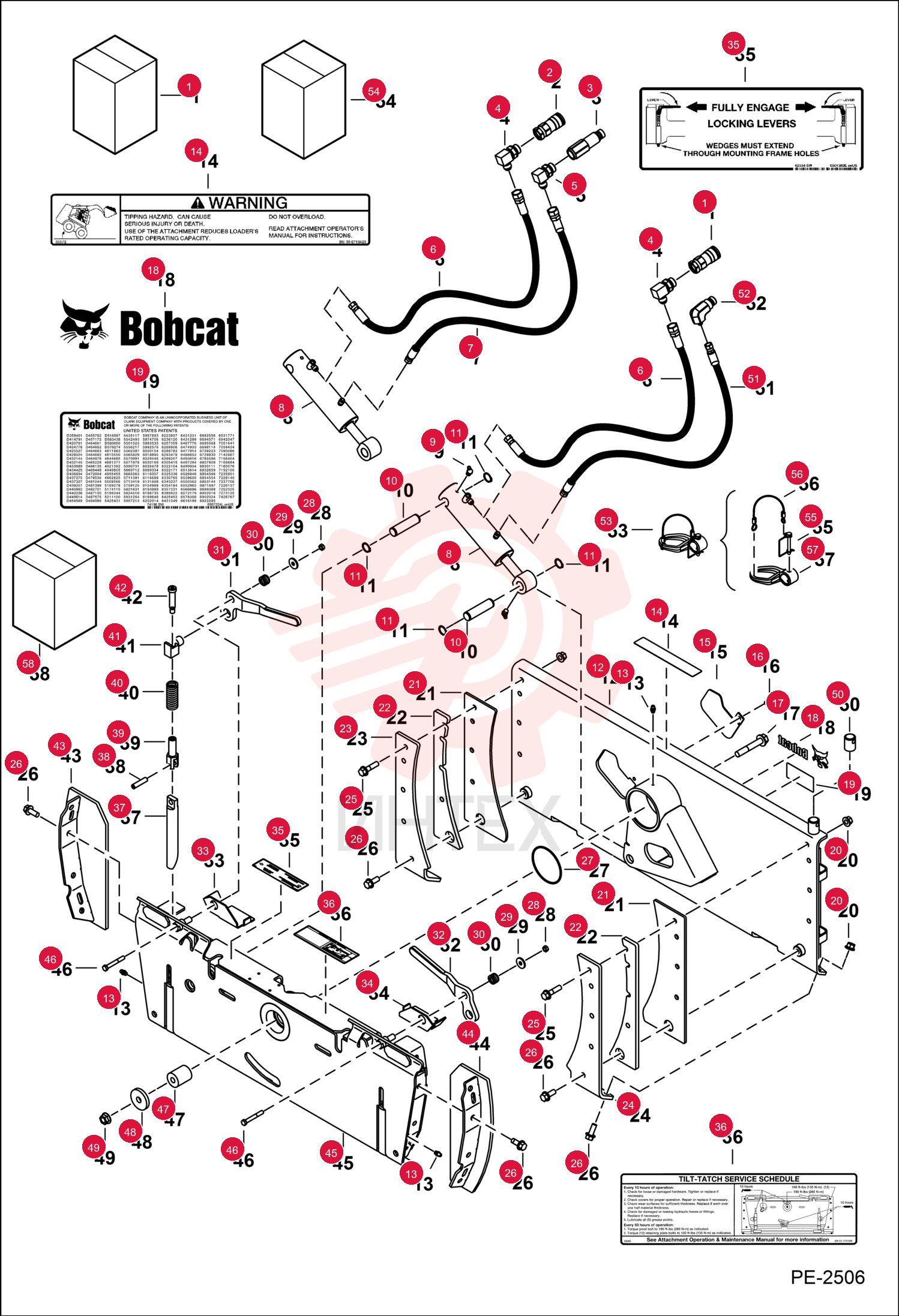

COUPLER FF FEM 1/2

COUPLER FF FEM 1/2

COUPLER FF FEM 1/2

1 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - straight - Was 6672960

2 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

3 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - straight - Was 6674688

4 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

5 17KB1012

  • 17KB1012 - FITTING
  • HYD ELBOW

6 6678054

  • 6678054 - ELBOW
  • W/orifice

7 6815861

  • 6815861 - HOSE

8 6818190

  • 6818190 - HOSE
  • .875" & .5625" hose ends

9 11H15

  • 11H15 - FTG GREASE STRAIGHT

10 6815505

  • 6815505 - PIN

11 21J16

  • 21J16 - SNAP RING

12 6815502

  • 6815502 - PLATE
  • BACK

13 10H35

  • 10H35 - FTG GREASE STRAIGHT

14 6716425

  • 6716425 - DECAL
  • HAZARD TIPPING

15 7130149

  • 7130149 - DECAL
  • HAZARD TIPPING
  • - no-text

16 6815525

  • 6815525 - PLATE

17 84G3710

  • 84G3710 - SCREW

18 31C1060

  • 31C1060 - BOLT

19 7109473

  • 7109473 - DECAL
  • LOGO BOBCAT AND HEAD

20 83D8

  • 83D8 - LKNUT HEX FLG GR8

21 6815535

  • 6815535 - PLATE
  • wear

22 6815513

  • 6815513 - PLATE
  • SPACER
  • spacer

23 6815533

  • 6815533 - PLATE
  • retaining - RH

24 6815534

  • 6815534 - PLATE
  • retaining - LH

25 31C832

  • 31C832 - SCREW FLGD HEX CAP

26 31C820

  • 31C820 - BOLT

27 6815522

  • 6815522 - O-RING

28 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

29 619021

  • 619021 - WASHER

30 6704453

  • 6704453 - SPRING COMPRESSION

31 6719501

  • 6719501 - LEVER
  • RH

32 6719502

  • 6719502 - LEVER
  • LH

33 6816941

  • 6816941 - COVER

34 6816942

  • 6816942 - COVER

35 6561383

  • 6561383 - DECAL
  • OPERATION 5
  • - bob-tach locking levers

36 7173403

  • 7173403 - DECAL
  • OPERATION
  • - no-text

37 7101505

  • 7101505 - DECAL
  • SERVICE

38 7130154

  • 7130154 - DECAL
  • SERVICE
  • - no-text

39 6737191

  • 6737191 - WEDGE
  • BOB-TACH

40 7277777

  • 7277777 - PIN
  • Was 14J5032

41 6704248

  • 6704248 - PIVOT
  • WEDGE

42 7252989

  • 7252989 - PIVOT
  • WEDGE
  • 156 mm (6.15") long - Use W/Ref. 42 (7255136 bolt)

43 6578253

  • 6578253 - SPRING
  • COMPRESSION

44 6704240

  • 6704240 - PIVOT
  • WEDGE

45 6728473

  • 6728473 - BOLT
  • SHOULDER
  • 57
  • 15 mm (2.25") shoulder - pre-applied thread locker - Use W/Ref. 39 (6704248 pivot)

46 7255136

  • 7255136 - SCREW
  • SOCKET HEAD
  • 28
  • 58 mm (1.125") long - Use W/Ref. 39 (7252989 pivot)

47 6815509

  • 6815509 - PLATE LH

48 6815510

  • 6815510 - PLATE RH

49 6815498

  • 6815498 - PLATE
  • PIVOT

50 17C644

  • 17C644 - BOLT

51 6815518

  • 6815518 - BUSHING

52 6815517

  • 6815517 - WASHER

53 53D10

  • 53D10 - NUT

54 7170300

  • 7170300 - PIN
  • PIVOT

55 7179691

  • 7179691 - HOSE
  • HYD
  • .5625" (2) hose ends

56 7246796

  • 7246796 - COUPLER 06 I90 MALE
  • - 90 degree - Was 7167304

57 7246796EF

  • 7246796EF - COUPLER MALE 90 DEGREE

58 7161953

  • 7161953 - GUIDE
  • HOSE ASSY
  • Ref. 55-57 - if equipped

59 7101857

  • 7101857 - REBUILD KIT
  • Ref. 20
  • 21
  • 23-26
  • 43 & 44

60 7161559

  • 7161559 - PIN
  • SNAPPER

61 6558309

  • 6558309 - CABLE BULK/FT
  • bulk - sold per foot

62 6558310

  • 6558310 - SLEEVE

63 7302293

  • 7302293 - KIT PIVOT BOB-TACH
  • Ref. 38 (7277777 pin)
  • 39 (7252989 pivot) & 42 (7255136 screw)
