Bobcat
/
Loader - Attachment
/

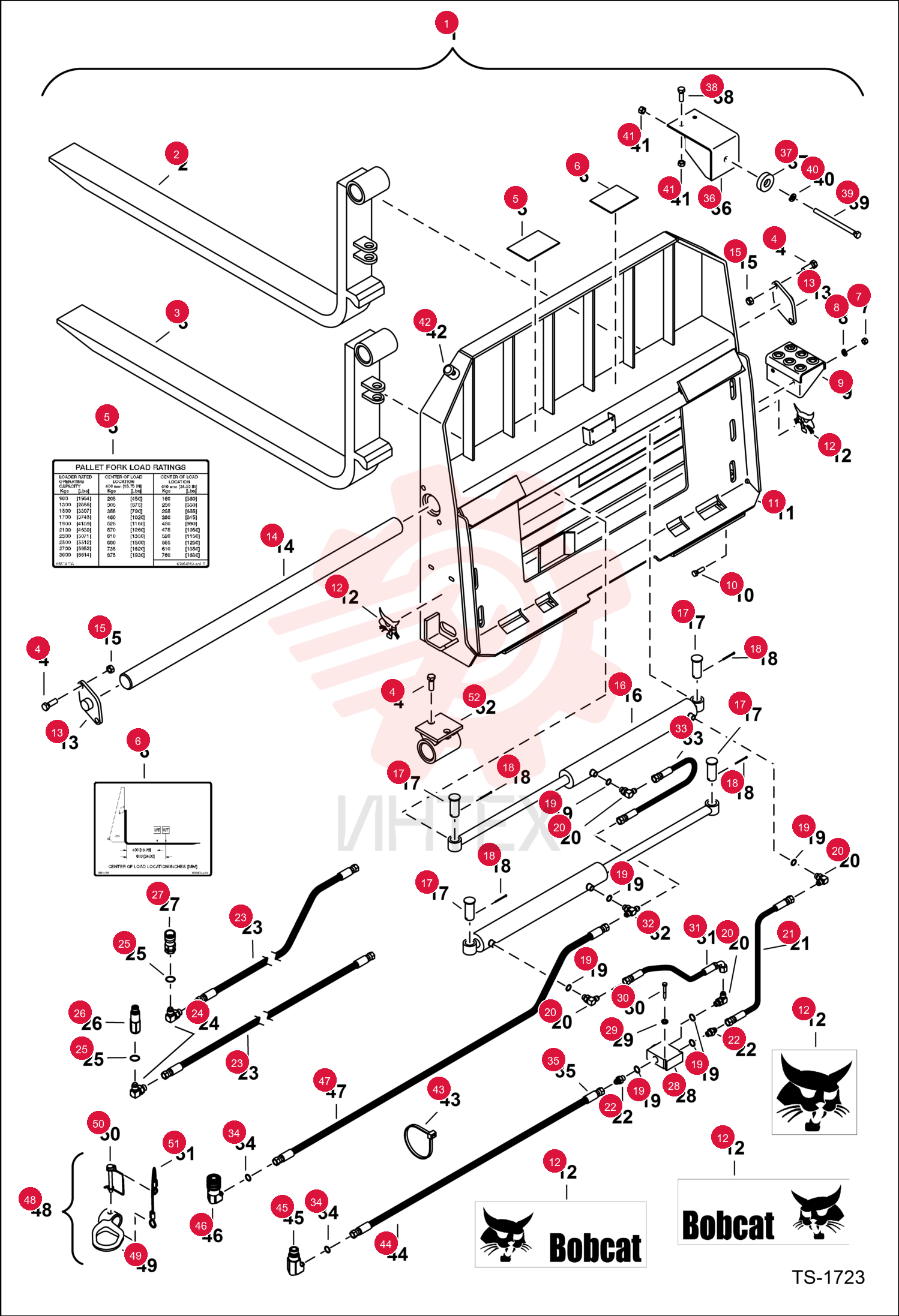

FORK RH 48"

FORK RH 48"

FORK RH 48"

1 6905477

  • 6905477 - FORK RH 48"
  • RH - 48"

2 6905495

  • 6905495 - FORKRH42"
  • RH - 42"

3 6905494

  • 6905494 - FORKLH42"
  • LH - 42"

4 6905476

  • 6905476 - FORK LH 48"
  • LH - 48"

5 17C824

  • 17C824 - BOLT 5
  • W/Ref. 52

6 17C824

  • 17C824 - BOLT 5

7 6905426

  • 6905426 - DECAL
  • LOAD RATING

8 7193830

  • 7193830 - DECAL LOAD RATING
  • - no-text

9 6905427

  • 6905427 - DECAL
  • LOAD LOCAT.

10 7193831

  • 7193831 - DECAL
  • LOAD LOCATION
  • - no-text

11 61D6

  • 61D6 - NUT HEX FINISHED GR5

12 4E6

  • 4E6 - WASHER

13 6905451

  • 6905451 - STEP

14 17C620

  • 17C620 - BOLT

15 6905475

  • 6905475 - MAIN FRAME
  • does not require Ref. 52

16 6727323

  • 6727323 - DECAL
  • LOGO BOBCAT AND HEAD
  • LH - Was 6567987

17 6727324

  • 6727324 - DECAL
  • LOGO BOBCAT AND HEAD
  • RH - Was 6567988

18 6809228

  • 6809228 - DECAL
  • LOGO BOBCAT HEAD

19 6905478

  • 6905478 - COVER

20 6905473

  • 6905473 - ROD
  • Was 6650161

21 85D8

  • 85D8 - NUT PRETRQ HEX LOCK
  • Was 87D8

22 6905480

  • 6905480 - PIN

23 1F424

  • 1F424 - PIN

24 99K6

  • 99K6 - O-RING

25 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW
  • Was 17KV00005B

26 6905481

  • 6905481 - HOSE

27 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR

28 6906294

  • 6906294 - HOSE
  • Use W/straight couplers - Was 6905484

29 17KB1012

  • 17KB1012 - FITTING
  • HYD ELBOW
  • Was 1302104B

30 79K12

  • 79K12 - O RING 10
  • Was 99K000012B

31 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - straight - Was 6674688

32 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

33 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

34 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - straight - Was 6672960

35 6684481

  • 6684481 - VALVE ASMBLY
  • Was 6905485

36 4E4

  • 4E4 - WASHER

37 17C428

  • 17C428 - BOLT

38 6905483

  • 6905483 - HOSE

39 19KB0606

  • 19KB0606 - FITTING
  • HYD TEE
  • Was 19KV00005B

40 6905482

  • 6905482 - HOSE

41 97K10

  • 97K10 - O-RING 10

42 97K6

  • 97K6 - O-RING

43 6905812

  • 6905812 - BRACKET

44 6584652

  • 6584652 - BUMPER

45 17C616

  • 17C616 - BOLT 5

46 17C664

  • 17C664 - BOLT

47 25E15

  • 25E15 - WASHER FLAT PLAIN

48 55D6

  • 55D6 - NUT

49 7170300

  • 7170300 - PIN
  • PIVOT

50 6624289

  • 6624289 - STRAP
  • TIE

51 7181207

  • 7181207 - HOSE
  • HYD
  • 64" (1625
  • 6 mm) long - Use W/Ref. 45

52 7246796

  • 7246796 - COUPLER 06 I90 MALE
  • - 90 degree - Was 7167304

53 7246796EF

  • 7246796EF - COUPLER MALE 90 DEGREE

54 7246782

  • 7246782 - COUPLER
  • FF FEMALE
  • - 90 degree - Was 7167305

55 7246782EF

  • 7246782EF - COUPLER FEMALE 90 DEGREE

56 7181175

  • 7181175 - HOSE
  • HYD
  • 70" (1778
  • 1 mm) long - Use W/Ref. 46

57 7161953

  • 7161953 - GUIDE
  • HOSE ASSY
  • Ref. 49-51

58 7161559

  • 7161559 - PIN
  • SNAPPER

59 6558309

  • 6558309 - CABLE BULK/FT
  • bulk - sold per foot

60 6558310

  • 6558310 - SLEEVE

61 6905474

  • 6905474 - MOUNT
  • bolt-on
