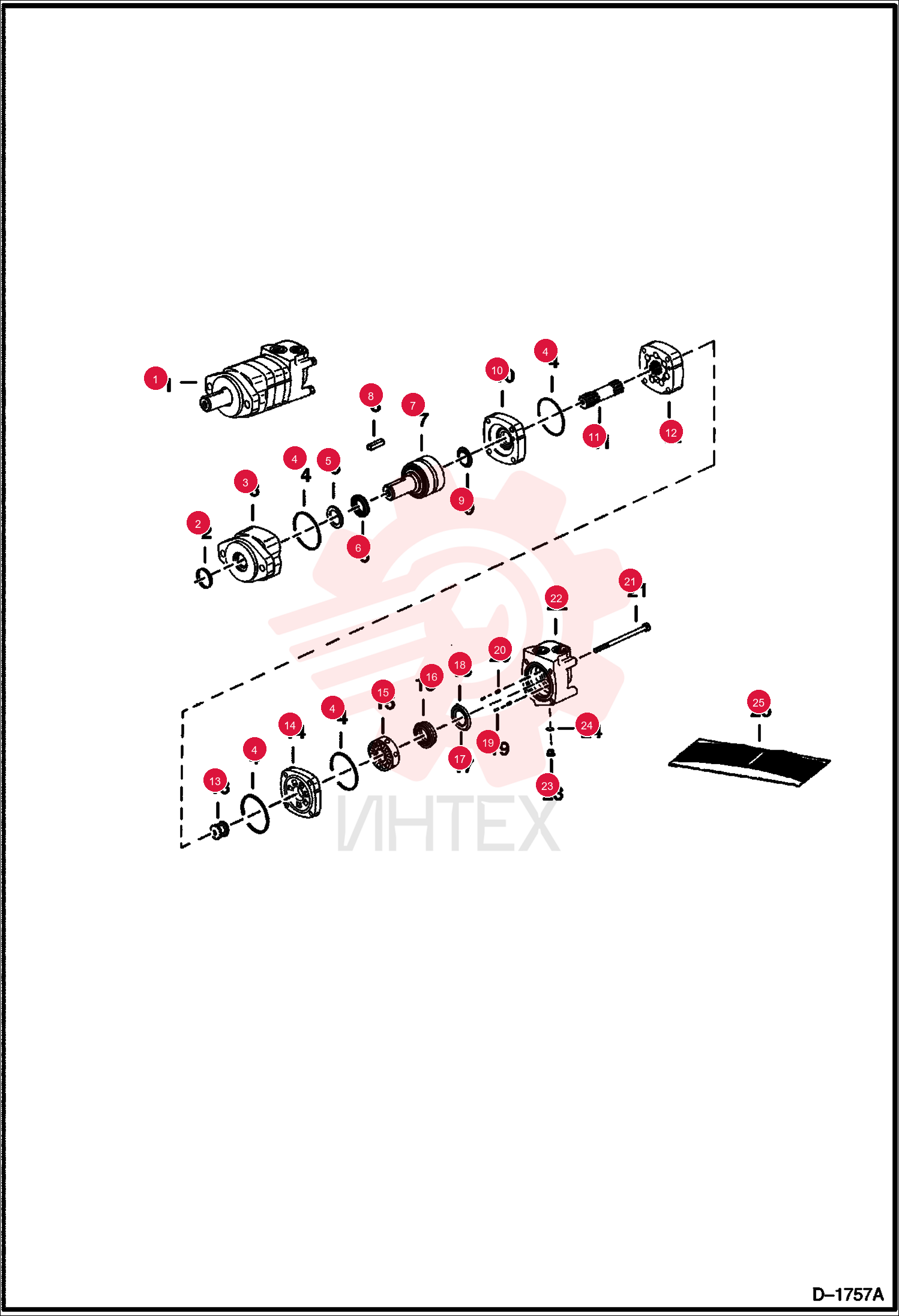

MOTOR, HYD 6673430 (2)

MOTOR, HYD 6673430 (2)

MOTOR, HYD 6673430 (2)

1 6673430

  • 6673430 - MOTOR
  • HYD

2 6630029

  • 6630029 - SEAL
  • shaft - 1.28" ID x 1.57" OD x .13" wide

3 6632285

  • 6632285 - HOUSING

4 6662955

  • 6662955 - SEAL

5 6659511

  • 6659511 - RING
  • BACK-UP

6 6689096

  • 6689096 - SEAL
  • Was 6665224

7 6683908

  • 6683908 - SHAFT ASSEMBLY

8 6634899

  • 6634899 - KEY
  • WOODRUFF

9 1992098

  • 1992098 - SEAL

10 6632286

  • 6632286 - PLATE
  • WEAR

11 6665335

  • 6665335 - SHAFT
  • DRIVE
  • 80
  • 8mm (3.18") long

12 6665336

  • 6665336 - GEROLER

13 1992084

  • 1992084 - DR VALVE

14 6656368

  • 6656368 - PLATE

15 6632288

  • 6632288 - VALVE

16 6630027

  • 6630027 - PLATE

17 1992100

  • 1992100 - SEAL

18 1992102

  • 1992102 - PIN

19 1992088

  • 1992088 - SPRING

20 6665337

  • 6665337 - BOLT

21 6632348

  • 6632348 - HOUSING

22 1992104

  • 1992104 - PLUG
  • W/Ref. 24

23 6648973

  • 6648973 - KIT
  • SEAL
  • W/Ref. 2
  • 4 - 6
  • 9
  • 17
  • 18 & 24
