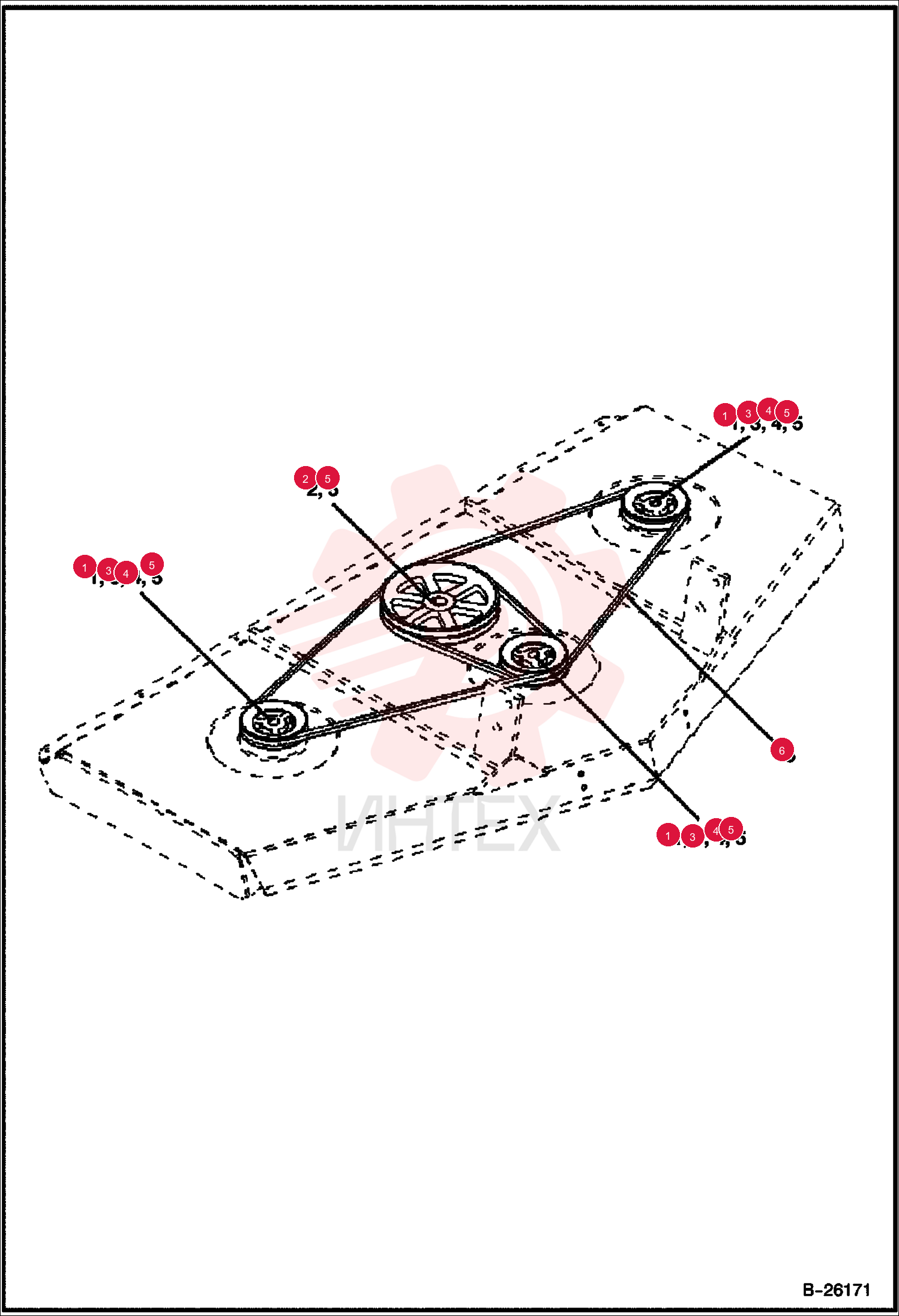

SHEAVE 6689916

SHEAVE 6689916

SHEAVE 6689916

1 6689916

  • 6689916 - SHEAVE
  • 3FM72 - 5.90" OD

2 6689913

  • 6689913 - SHEAVE
  • 3FM60 - 5.00" OD

3 6689914

  • 6689914 - SHEAVE
  • 3FM60 & 3FM72 - 10.55" OD

4 00777722

  • 00777722 - NUT
  • 3FM60 & 3FM72

5 15B1200

  • 15B1200 - WASHER
  • 3FM60 & 3FM72

6 00765813

  • 00765813 - KEY
  • 3FM60 & 3FM72

7 6689915

  • 6689915 - BELT
  • 3FM60 - matched set of 2 belts

8 6689917

  • 6689917 - BELT
  • 3FM72 - matched set of 2 belts
