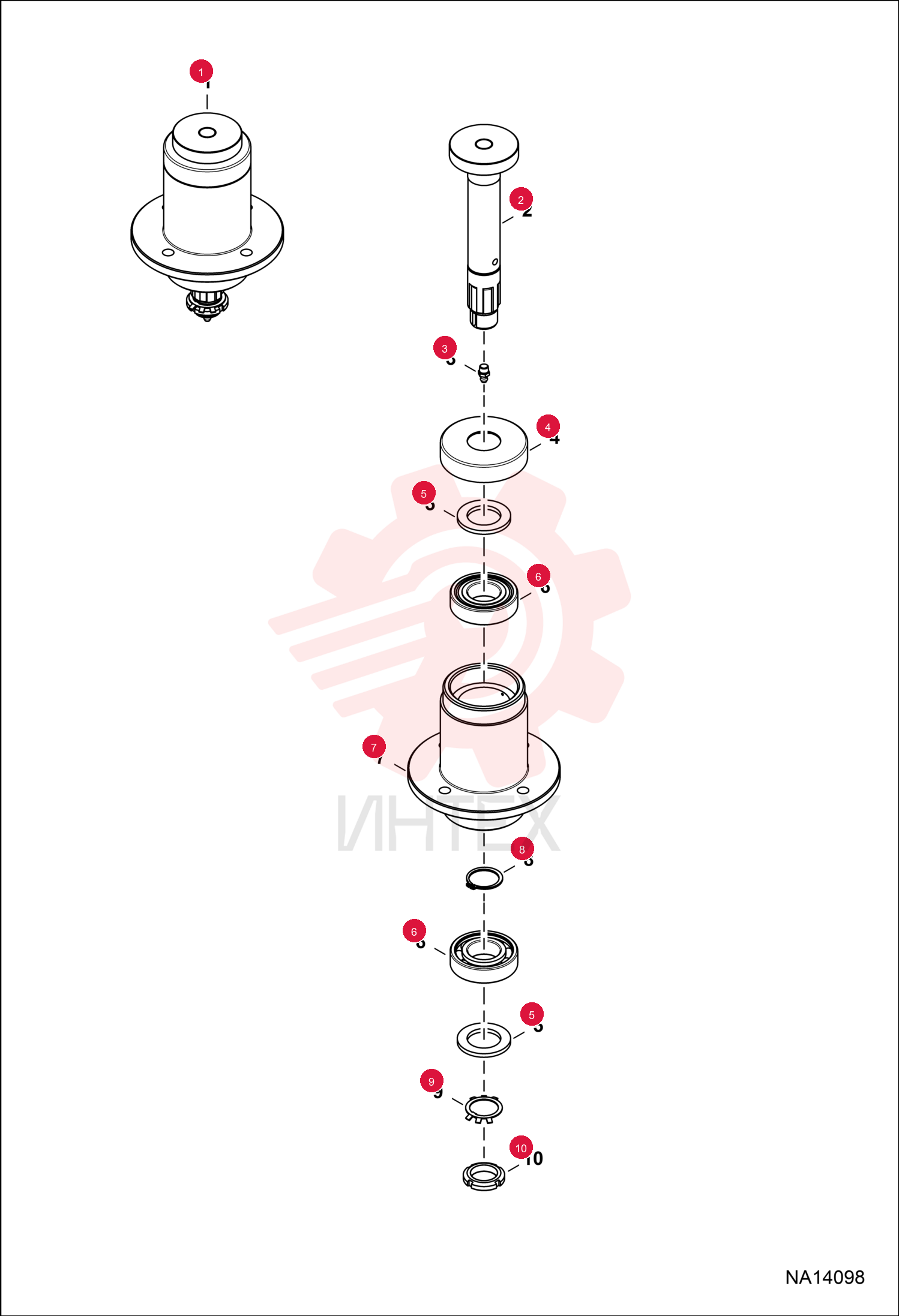

SPINDLE, MOWER 7249182 (2)

SPINDLE, MOWER 7249182 (2)

SPINDLE, MOWER 7249182 (2)

1 7249182

  • 7249182 - SPINDLE
  • MOWER
  • W/Ref. 2-10

2 7249178

  • 7249178 - SHAFT
  • SPINDLE

3 1HM8

  • 1HM8 - FITTING
  • GREASE

4 7249179

  • 7249179 - CAP

5 7249177

  • 7249177 - WASHER

6 7249176

  • 7249176 - BEARING
  • BALL

7 7249175

  • 7249175 - HUB
  • SPINDLE

8 5JM30

  • 5JM30 - SNAP RING

9 7249180

  • 7249180 - WASHER
  • LOCK

10 7249181

  • 7249181 - NUT
  • LOCK
