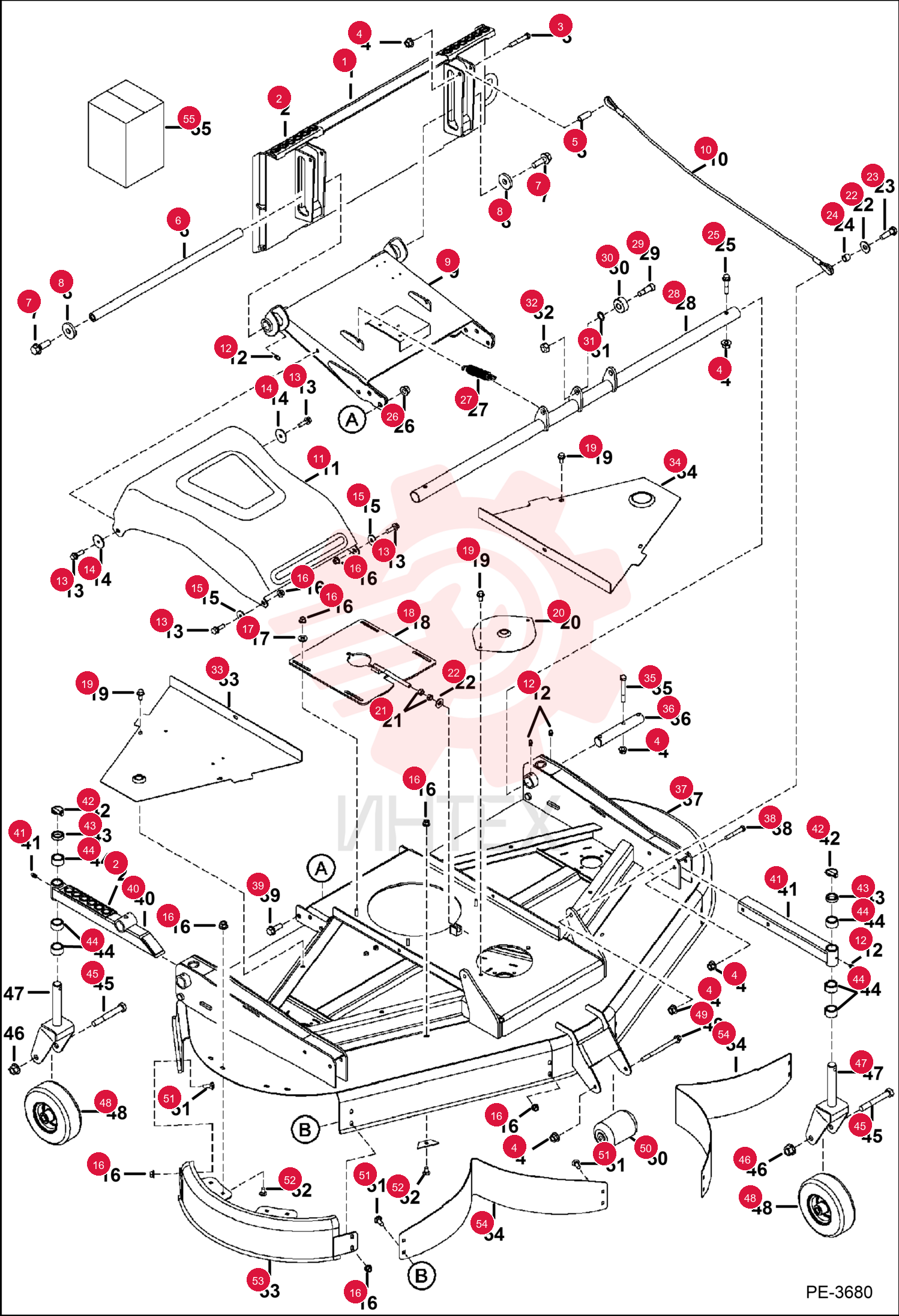

MOUNT, ATTACH 7138206 (1)
1 7138206
- 7138206 - MOUNT
- ATTACH
- Bob-Tach
2 6569838
- 6569838 - STEP
3 17C852
- 17C852 - BOLT 5
4 83D8
- 83D8 - LKNUT HEX FLG GR8
5 6734331
- 6734331 - SPACER
6 6734324
- 6734324 - SHAFT
- PIVOT
- pivot
7 31C1236
- 31C1236 - BOLT
8 6552871
- 6552871 - WASHER AXLE
9 7138214
- 7138214 - BRACKET
- FLOAT
- float
10 7140421
- 7140421 - CABLE
- MOWER 90
- 90" mower
11 7140422
- 7140422 - CABLE
- MOWER 72
- 72" mower
12 7140425
- 7140425 - COVER
- MOWER
13 10H35
- 10H35 - FTG GREASE STRAIGHT
14 31C624
- 31C624 - BOLT
- Was 31C620
15 6705232
- 6705232 - WASHER
16 619021
- 619021 - WASHER
17 83D6
- 83D6 - LKNUT HEX FLG GR8
18 25E18
- 25E18 - WASHER FLAT PLAIN
19 7139547
- 7139547 - MOUNT
- MOTOR ASSY
20 35C612
- 35C612 - SCREW FLGD HEX CAP
- Was 31C000612B
21 7134475
- 7134475 - COVER
- PULLEY
22 61D8
- 61D8 - NUT 5
23 25E22
- 25E22 - WASHER
24 17C828
- 17C828 - BOLT
25 6503955
- 6503955 - SPACER
- TUBE
26 31C840
- 31C840 - SCREW
27 83D10
- 83D10 - NUT 5
28 7134220
- 7134220 - SPRING
29 7139060
- 7139060 - SHAFT
- SAFETY ASSY
- safety assy. - 90" mower - W/Ref. 29-32
30 7140403
- 7140403 - SHAFT
- SAFETY ASSY
- safety assy. - 72" mower - W/Ref. 29-32
31 38C1220
- 38C1220 - BOLT
- SHOULDER
- shoulder
32 6692370
- 6692370 - BEARING
- SHUTOFF
- shutoff
33 7139064
- 7139064 - WASHER
- safety
34 85D10
- 85D10 - NUT
- 5
35 17C864
- 17C864 - BOLT
36 7138440
- 7138440 - PIN
37 7134452
- 7134452 - FRAME
- MAIN ASSY
- 90" mower
38 7136497
- 7136497 - FRAME
- MAIN ASSY
- 72" mower
39 17C852
- 17C852 - BOLT 5
40 31C1028
- 31C1028 - BOLT 5
41 7138195
- 7138195 - MOUNT
- WHEEL ARM
- rear
42 7134471
- 7134471 - MOUNT
- WHEEL ARM
- front
43 6560382
- 6560382 - PIN
- LOCK
44 7140133
- 7140133 - BUSHING
- SPINDLE
45 7140132
- 7140132 - BUSHING
- SPINDLE
46 17C1288
- 17C1288 - BOLT
47 89D12
- 89D12 - NUT
48 7145327
- 7145327 - CASTER
- WHEEL
49 6683826
- 6683826 - BEARING
50 6685620
- 6685620 - TIRE
- MOWER ASSY
- wheel & tire sold only as an assembly - includes 6683826 bearing
51 17C8112
- 17C8112 - BOLT
- Was 31C8112
52 7138414
- 7138414 - ROLLER
- MOWER
53 37C616
- 37C616 - BOLT
- carriage
54 37C612
- 37C612 - BOLT
- carriage
55 7140406
- 7140406 - COVER
- SIDE
- 72" mower - used with rear discharge and mulching versions
56 7140423
- 7140423 - SHIELD
- W/A
- 72" mower - used with rear discharge and mulching versions
57 7160785JP
- 7160785JP - KIT
- DECAL
58 7160785BR
- 7160785BR - KIT
- DECAL
59 7160785AR
- 7160785AR - KIT
- DECAL
60 7156293BR
- 7156293BR - KIT
- TRANSLATION
61 7156293AR
- 7156293AR - KIT
- TRANSLATION
