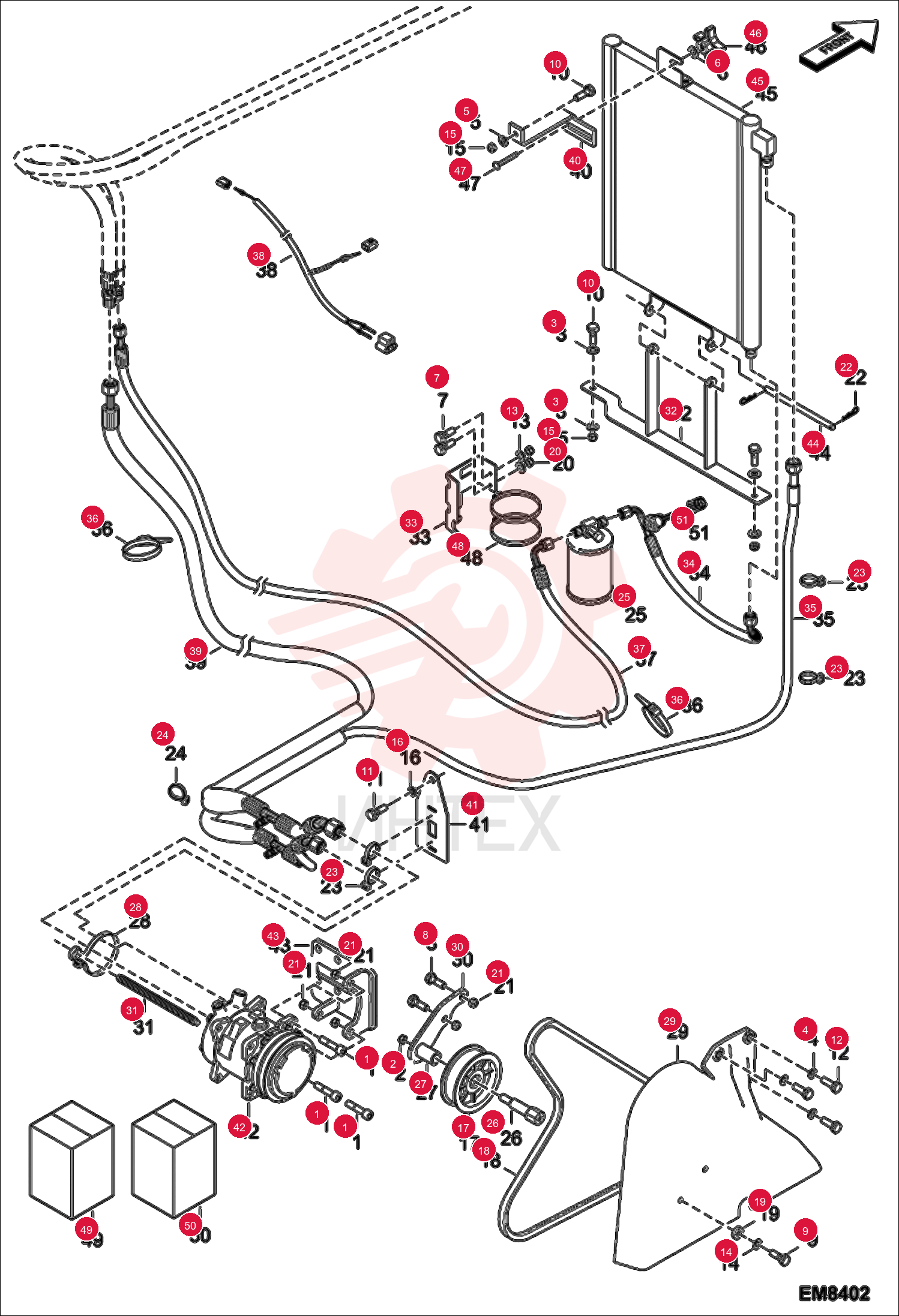

SCREW 000329-34X
1 000329-34X
- 000329-34X - SCREW
2 000345-96E
- 000345-96E - NUT
3 000350-02V
- 000350-02V - WASHER
4 000350-03W
- 000350-03W - WASHER
5 000350-20Q
- 000350-20Q - WASHER
6 000350-21R
- 000350-21R - WASHER
7 01478.7
- 01478.7 - SCREW
8 01522.2
- 01522.2 - Screw
9 01578.4
- 01578.4 - Screw
10 4CM820
- 4CM820 - SCREW HEX HD 8.8
11 01604.8
- 01604.8 - Screw
12 1CM1025
- 1CM1025 - BOLT
13 01695.6
- 01695.6 - Washer
14 01697.2
- 01697.2 - Washer
15 01681.6
- 01681.6 - Nut
16 7225260
- 7225260 - WASHER
17 90531.5
- 90531.5 - Roller
18 90545.5
- 90545.5 - Alternator Belt
19 97610.0
- 97610.0 - Washer
20 7248549
- 7248549 - NUT
21 7252655
- 7252655 - NUT LOCK
22 1306637
- 1306637 - PIN HAIR
23 6624289
- 6624289 - STRAP
- TIE
24 6624289
- 6624289 - STRAP
- TIE
25 6674235
- 6674235 - RECEIVER
- DRIER A/C
26 6908181
- 6908181 - SPINDLE
27 6914328
- 6914328 - SPACER
28 6915851
- 6915851 - COLLAR
29 6919502
- 6919502 - BELT PROTECTOR
30 6919954
- 6919954 - PULLEY SUPPORT
31 6921416
- 6921416 - PROTECTOR
32 6927636
- 6927636 - BRACKET
33 6927639
- 6927639 - DRIER BRACKET
34 6927640
- 6927640 - HOSE
35 7009976
- 7009976 - O-RING
36 7009976
- 7009976 - O-RING
37 6927644
- 6927644 - HOSE
38 6624289
- 6624289 - STRAP
- TIE
39 6927646
- 6927646 - HOSE
40 7009976
- 7009976 - O-RING
41 6932826
- 6932826 - HARNESS
- HVAC ENGINE
42 6927648
- 6927648 - HOSE
43 7009978
- 7009978 - O-RING
44 6927851
- 6927851 - PLATE
45 6927911
- 6927911 - BRACKET
46 6932227
- 6932227 - COMPRESSOR
47 6932752
- 6932752 - BRACKET
- COMPRESSOR
48 6932961
- 6932961 - PIN
49 7003035
- 7003035 - CONDENSER
- A/C
50 7167576
- 7167576 - NUT
- WING
51 28CM1025
- 28CM1025 - BOLT CARRIAGE 8.8
52 42HS48
- 42HS48 - CLAMP
53 7015473
- 7015473 - CLUTCH ASSEMBLY KIT
54 7015474
- 7015474 - ROTOR/ARMATURE KIT
55 6675779
- 6675779 - SWITCH
- PRESS
