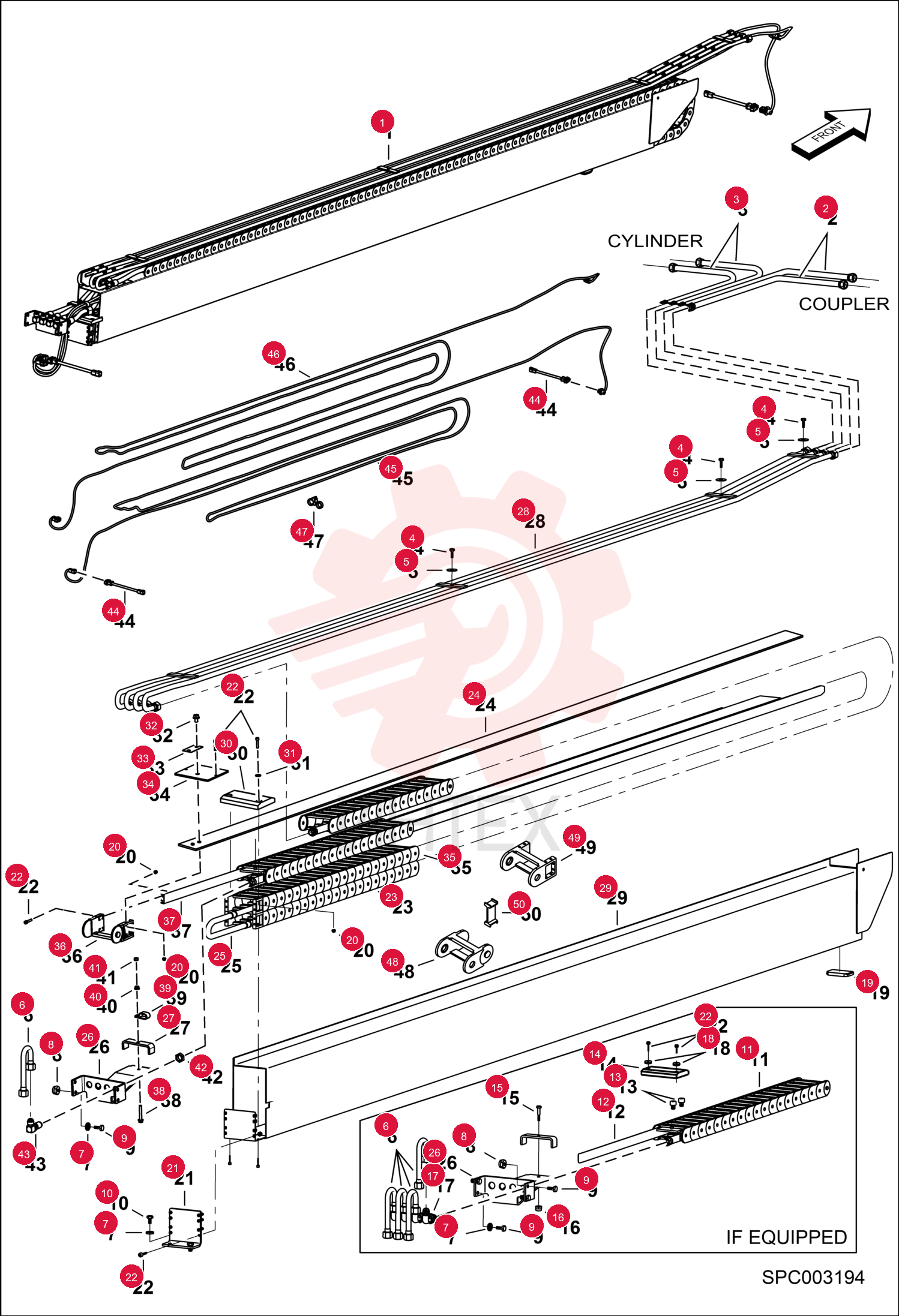

TRAY BOOM 7341722 (1)

TRAY BOOM 7341722 (1)

TRAY BOOM 7341722 (1)

1 7341722

  • 7341722 - TRAY BOOM

2 7247278

  • 7247278 - HOSE HYDRAULIC

3 7247212

  • 7247212 - HOSE HYDRAULIC

4 4CM825

  • 4CM825 - BOLT HEX HEAD

5 01718.6

  • 01718.6 - Washer

6 7212604

  • 7212604 - TUBELINE
  • HYD

7 01720.2

  • 01720.2 - Washer

8 7252655

  • 7252655 - NUT LOCK

9 1CM1025

  • 1CM1025 - BOLT

10 01604.8

  • 01604.8 - Screw

11 7214511

  • 7214511 - SLIDE

12 7248549

  • 7248549 - NUT

13 7212614

  • 7212614 - PLATE

14 6GM525

  • 6GM525 - SCREW HEX SOCKT 10.9

15 7212277

  • 7212277 - CHAIN

16 7213660

  • 7213660 - BAND

17 7227079

  • 7227079 - HOSE ASSY

18 7212602

  • 7212602 - PLATE

19 7213702

  • 7213702 - HOLDER

20 7212291

  • 7212291 - TUBELINE
  • HYD

21 7212288

  • 7212288 - BOX

22 7212601

  • 7212601 - SLIDE

23 18EM515

  • 18EM515 - WASHER

24 59CM812

  • 59CM812 - SCREW HX FLNG W/T8.8

25 7213700

  • 7213700 - PLATE

26 7320662

  • 7320662 - PLATE FIXATION

27 7326561

  • 7326561 - CHAIN ROLLER

28 7326574

  • 7326574 - LINK CHAIN

29 7343658

  • 7343658 - PLATE GUIDE

30 29CM855

  • 29CM855 - SCREW HX FLGD HD CAP

31 31H34

  • 31H34 - CLIP

32 43DM8

  • 43DM8 - NUT FLANGED HEX

33 4DM8

  • 4DM8 - NUT HEX

34 86F7

  • 86F7 - NUT 5

35 88F7

  • 88F7 - ELBOW

36 7341594

  • 7341594 - HARNESS ADAPTER

37 7341439

  • 7341439 - HARNESS BOOM

38 7341438

  • 7341438 - HARNESS BOOM

39 7221316

  • 7221316 - STRAP
  • TIE DUAL

40 95571.6

  • 95571.6 - Link

41 95572.4

  • 95572.4 - Link

42 95088.1

  • 95088.1 - Chain spacer
