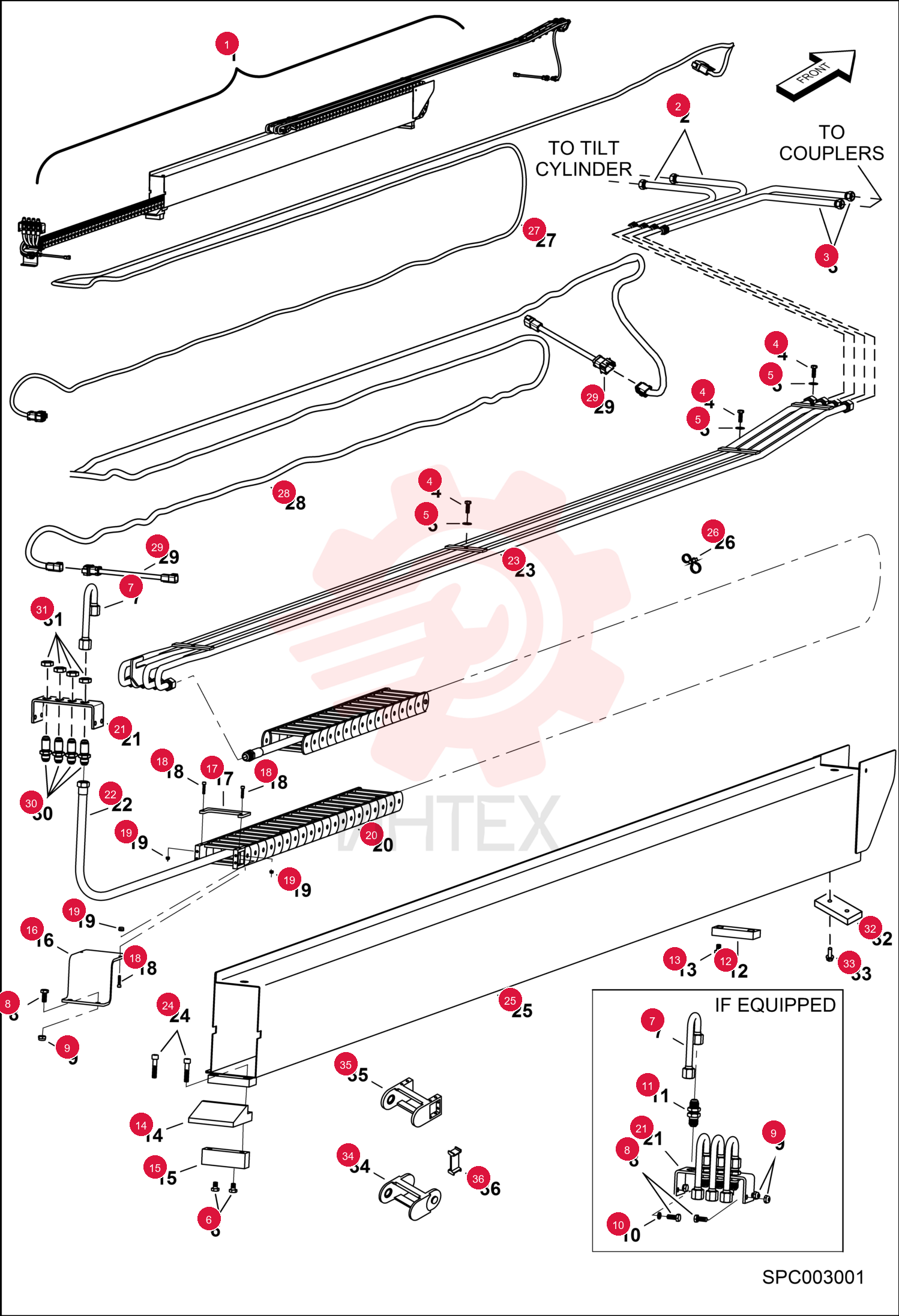

TRAY BOOM 7341721 (1)

TRAY BOOM 7341721 (1)

TRAY BOOM 7341721 (1)

1 7341721

  • 7341721 - TRAY BOOM

2 7247212

  • 7247212 - HOSE HYDRAULIC

3 7247278

  • 7247278 - HOSE HYDRAULIC

4 4CM825

  • 4CM825 - BOLT HEX HEAD

5 01718.6

  • 01718.6 - Washer

6 4CM1016

  • 4CM1016 - SCREW

7 7212604

  • 7212604 - TUBELINE
  • HYD

8 1CM1025

  • 1CM1025 - BOLT

9 7252655

  • 7252655 - NUT LOCK

10 01720.2

  • 01720.2 - Washer

11 7215444

  • 7215444 - SLIDE

12 7215445

  • 7215445 - SPACER TUBE

13 7215441

  • 7215441 - BRACKET SUPPORT

14 7215442

  • 7215442 - PLATE

15 6GM525

  • 6GM525 - SCREW HEX SOCKT 10.9

16 4DM5

  • 4DM5 - NUT HEXAGON M5

17 7212277

  • 7212277 - CHAIN

18 7215440

  • 7215440 - SUPPORT

19 7212294

  • 7212294 - HOSE HYDRAULIC ASSY

20 7212291

  • 7212291 - TUBELINE
  • HYD

21 6GM1040

  • 6GM1040 - SCREW HEX SOCKT 10.9

22 7215528

  • 7215528 - BOX

23 7221316

  • 7221316 - STRAP
  • TIE DUAL

24 7341436

  • 7341436 - HARNESS BOOM

25 7341437

  • 7341437 - HARNESS BOOM

26 7341594

  • 7341594 - HARNESS ADAPTER

27 45K7

  • 45K7 - CONNECTR

28 86F7

  • 86F7 - NUT 5

29 7215447

  • 7215447 - BRACKET MOUNT

30 59CM825

  • 59CM825 - BOLT

31 95571.6

  • 95571.6 - Link

32 95572.4

  • 95572.4 - Link

33 95088.1

  • 95088.1 - Chain spacer
