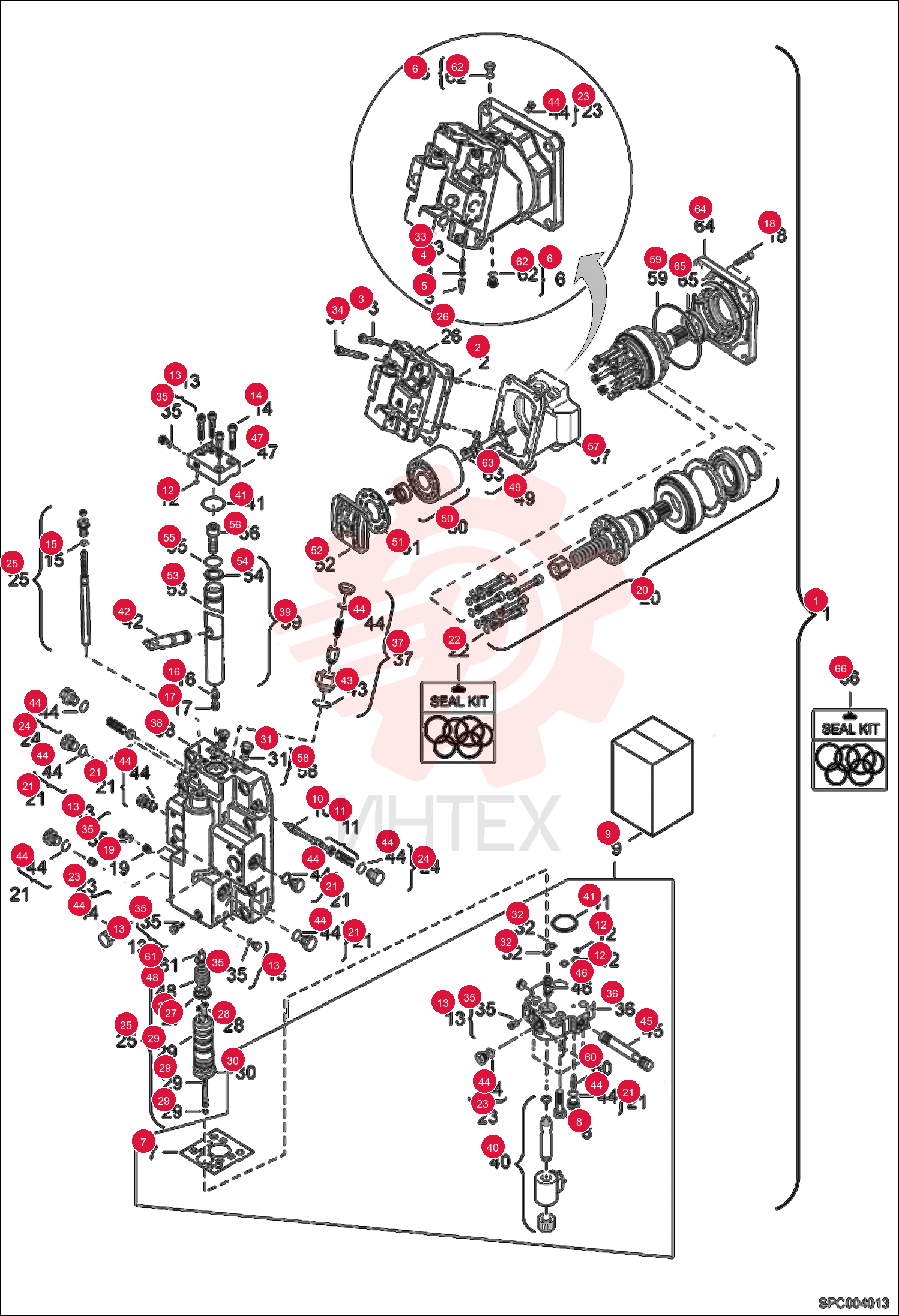

Hydrostatic Motor Assy 78256.5 (4)

Hydrostatic Motor Assy 78256.5 (4)

Hydrostatic Motor Assy 78256.5 (4)

1 78256.5

  • 78256.5 - Hydrostatic Motor Assy

2 6518460

  • 6518460 - PIN

3 71605.0

  • 71605.0 - Screw

4 71610.0

  • 71610.0 - Nut

5 7031196

  • 7031196 - CAP

6 71785.0

  • 71785.0 - Plug

7 6690562

  • 6690562 - O-RING GASKET

8 81456.6

  • 81456.6 - Screw

9 7013329

  • 7013329 - CONTROL KIT

10 7013159

  • 7013159 - SPRING GUIDE ASSY

11 71643.1

  • 71643.1 - Seal

12 7022672

  • 7022672 - PLUG

13 71646.4

  • 71646.4 - Screw

14 71626.6

  • 71626.6 - Seal

15 71602.7

  • 71602.7 - Screw

16 71603.5

  • 71603.5 - Screw

17 7008854

  • 7008854 - SCREW

18 7022523

  • 7022523 - ORIFICE

19 7013328

  • 7013328 - SHAFT
  • W/O SPEED RING

20 6921561

  • 6921561 - PLUG

21 7013327

  • 7013327 - PISTON RING KIT

22 6921561

  • 6921561 - PLUG

23 7022516

  • 7022516 - PLUG

24 81452.5

  • 81452.5 - KIT
  • THRESHOLD ADJUSTMENT

25 7013326

  • 7013326 - END CAP GASKET

26 7015277

  • 7015277 - SPRING SEAT

27 71622.5

  • 71622.5 - Nozzle

28 7013316

  • 7013316 - VALVE ASSY

29 71624.1

  • 71624.1 - Seal

30 71648.0

  • 71648.0 - SEAL

31 71644.9

  • 71644.9 - Seal

32 7013325

  • 7013325 - SET SCREW

33 81449.1

  • 81449.1 - SCREW

34 6664963

  • 6664963 - O-RING

35 92614.7

  • 92614.7 - Housing

36 7013324

  • 7013324 - CARTRIDGE KIT

37 7013323

  • 7013323 - END CAP
  • AXIAL PORT

38 7013322

  • 7013322 - SERVO PISTON ASSY

39 6921595

  • 6921595 - SOLENOID VALVE

40 81450.9

  • 81450.9 - Seal

41 81446.7

  • 81446.7 - LEVER
  • FEEDBACK

42 71632.4

  • 71632.4 - O-ring

43 6661481

  • 6661481 - O-RING

44 81458.2

  • 81458.2 - Spindle

45 97258.8

  • 97258.8 - Piston

46 81448.3

  • 81448.3 - Cover

47 97357.8

  • 97357.8 - Spring

48 7013317

  • 7013317 - SHAFT

49 81434.3

  • 81434.3 - Cylinder block

50 7013318

  • 7013318 - BEARING PLATE

51 81433.5

  • 81433.5 - Valve segment

52 81445.9

  • 81445.9 - Piston

53 81437.6

  • 81437.6 - Seal

54 81444.2

  • 81444.2 - O-ring

55 81443.4

  • 81443.4 - Screw

56 7013321

  • 7013321 - HOUSING

57 81451.7

  • 81451.7 - Plug

58 6912948

  • 6912948 - O-RING

59 81457.4

  • 81457.4 - Pin

60 6912159

  • 6912159 - SPRING RETAINER

61 71778.5

  • 71778.5 - O-ring

62 7013319

  • 7013319 - SUPPORT PIN

63 7013320

  • 7013320 - BEARING HOUSING

64 7011038

  • 7011038 - SEAL

65 81463.2

  • 81463.2 - Hydrostatic Motor Seal Kit
