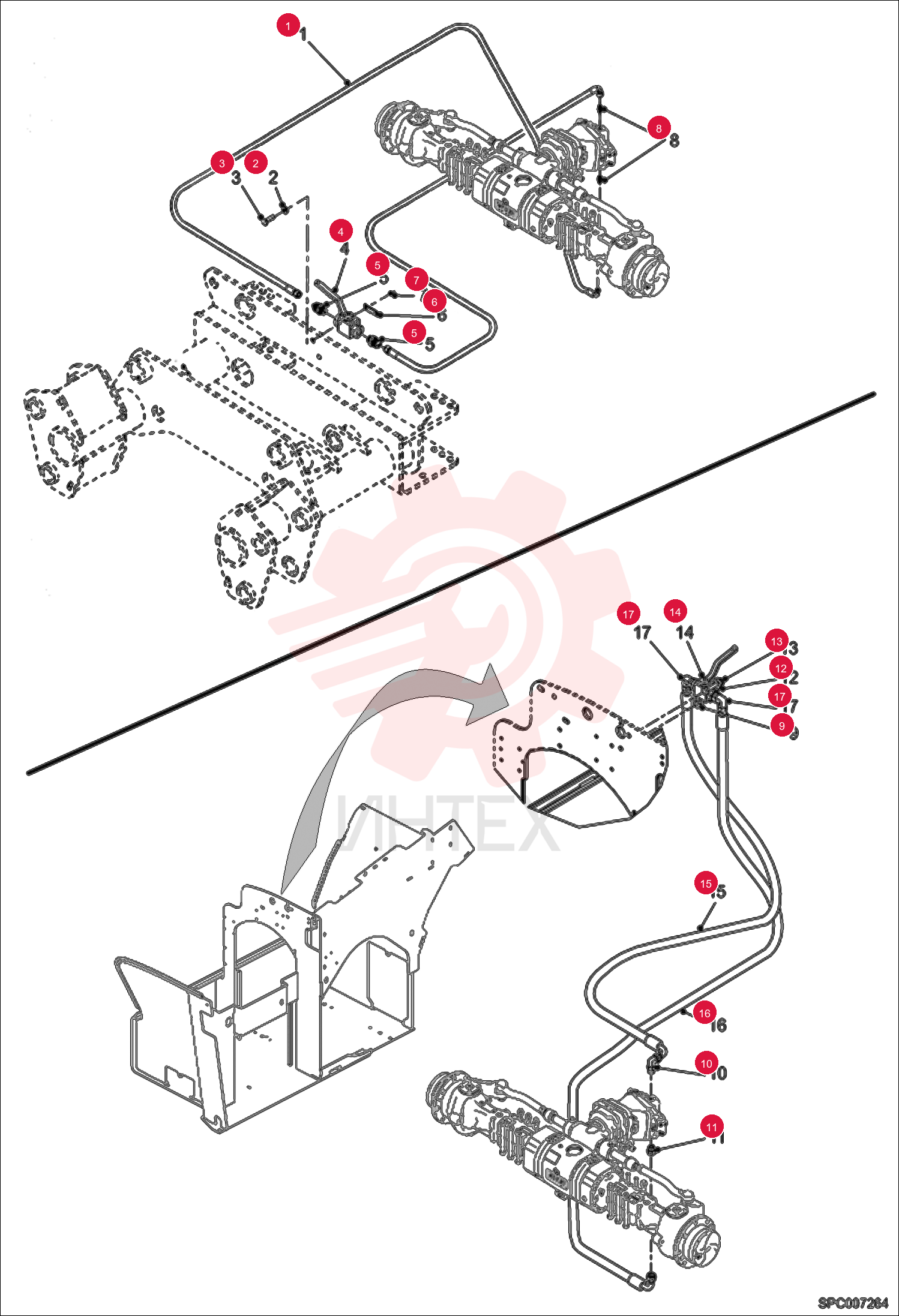

Hose 85472.9 (1)

Hose 85472.9 (1)

Hose 85472.9 (1)

1 85472.9

  • 85472.9 - Hose

2 000350-21R

  • 000350-21R - WASHER

3 01522.2

  • 01522.2 - Screw

4 100378-03F

  • 100378-03F - SHUTOFF

5 77013.1

  • 77013.1 - Adapter

6 77014.9

  • 77014.9 - Plate

7 7252655

  • 7252655 - NUT LOCK

8 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR

9 01519.8

  • 01519.8 - Screw

10 010370-38Q

  • 010370-38Q - UNION

11 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR

12 77014.9

  • 77014.9 - Plate

13 7252655

  • 7252655 - NUT LOCK

14 100378-03F

  • 100378-03F - SHUTOFF

15 6910798

  • 6910798 - HYDRAULIC HOSE

16 6910798

  • 6910798 - HYDRAULIC HOSE

17 7247423

  • 7247423 - FITTING ELBOW
