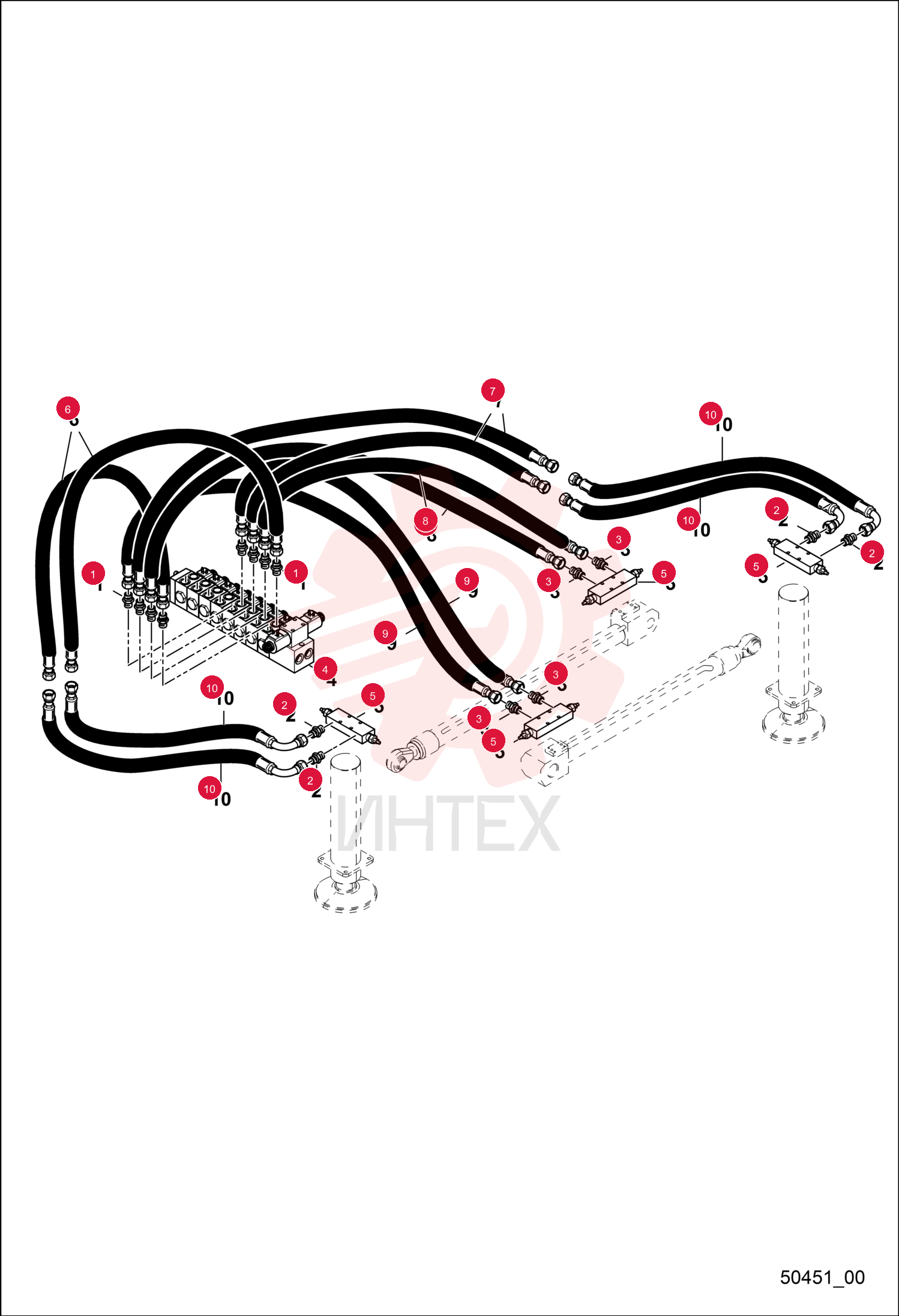

FITTING, HYD 7021406 (3)

FITTING, HYD 7021406 (3)

FITTING, HYD 7021406 (3)

1 7021406

  • 7021406 - FITTING
  • HYD

2 7021407

  • 7021407 - FITTING
  • HYD

3 7018218

  • 7018218 - FITTING
  • HYD

4 7024664

  • 7024664 - DISTRIBUTOR
  • STABILIZER

5 7014703

  • 7014703 - VALVE
  • STABILIZER

6 7015224

  • 7015224 - HOSE ASSY

7 7015225

  • 7015225 - HOSE ASSY

8 7015228

  • 7015228 - HOSE ASSY

9 7015229

  • 7015229 - HOSE ASSY

10 7279354

  • 7279354 - PIPE
