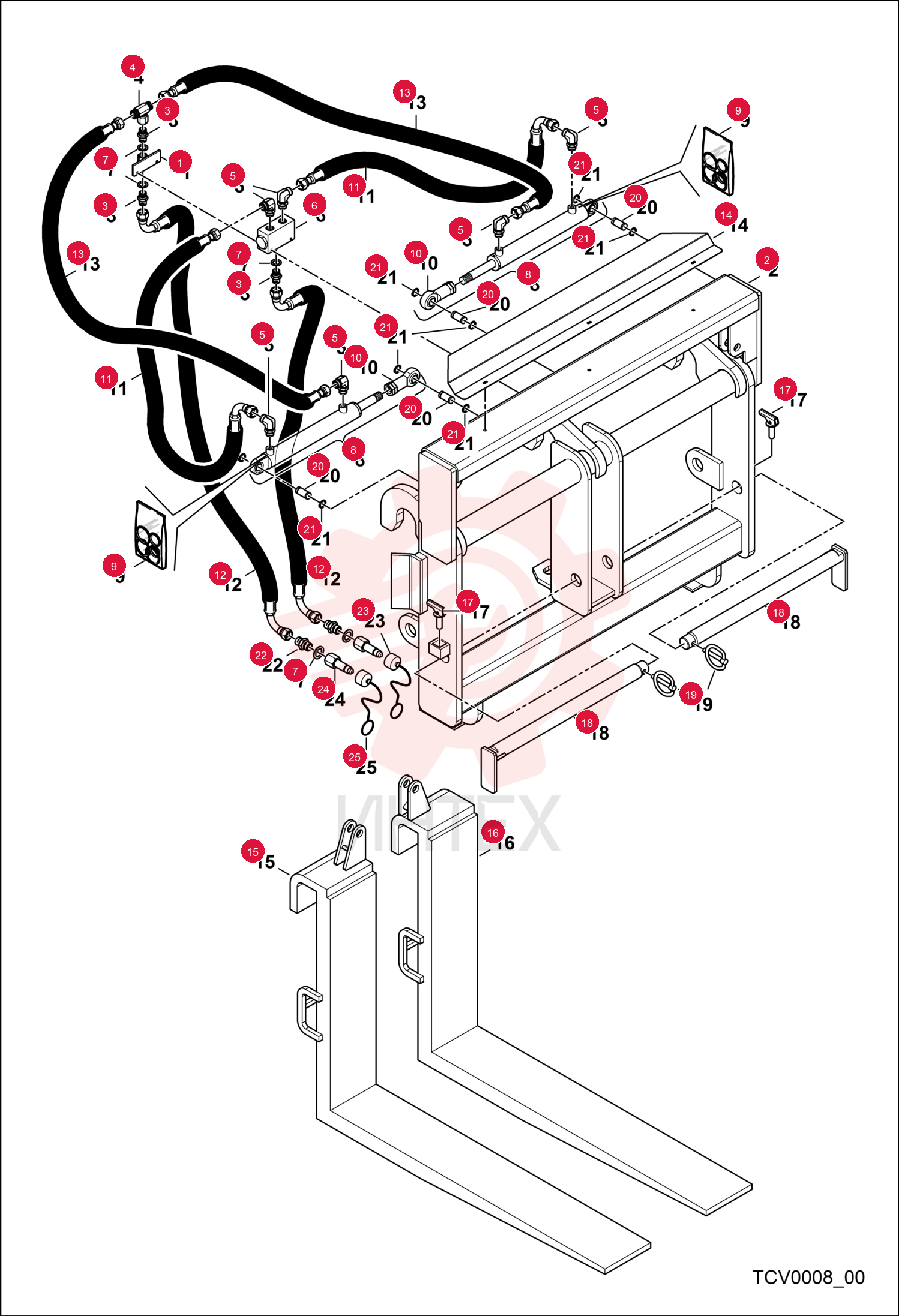

SUPPORT 7024671 (2)

SUPPORT 7024671 (2)

SUPPORT 7024671 (2)

1 7024671

  • 7024671 - SUPPORT

2 7335944

  • 7335944 - FORK EXTENDER

3 7019802

  • 7019802 - FITTING
  • HYD

4 7024673

  • 7024673 - FITTING

5 7024674

  • 7024674 - FITTING

6 7024675

  • 7024675 - VALVE

7 7018154

  • 7018154 - WASHER

8 7024676

  • 7024676 - CYLINDER

9 7024677

  • 7024677 - KIT
  • SEAL

10 7024678

  • 7024678 - ARTICULATED JOINT

11 7024679

  • 7024679 - PIPE

12 7024680

  • 7024680 - PIPE

13 7024681

  • 7024681 - PIPE

14 7024682

  • 7024682 - PLATE

15 7335945

  • 7335945 - RH SINGLE FORK

16 7335946

  • 7335946 - LH SINGLE FORK

17 7014929

  • 7014929 - PIN
  • STOP

18 7028191

  • 7028191 - PIN

19 7014990

  • 7014990 - PIN

20 7028204

  • 7028204 - PIN

21 7028199

  • 7028199 - SEEGER RING

22 7019802

  • 7019802 - FITTING
  • HYD

23 7018155

  • 7018155 - CAP
  • BLUE

24 7018137

  • 7018137 - COUPLER

25 7018156

  • 7018156 - CAP
  • RED
