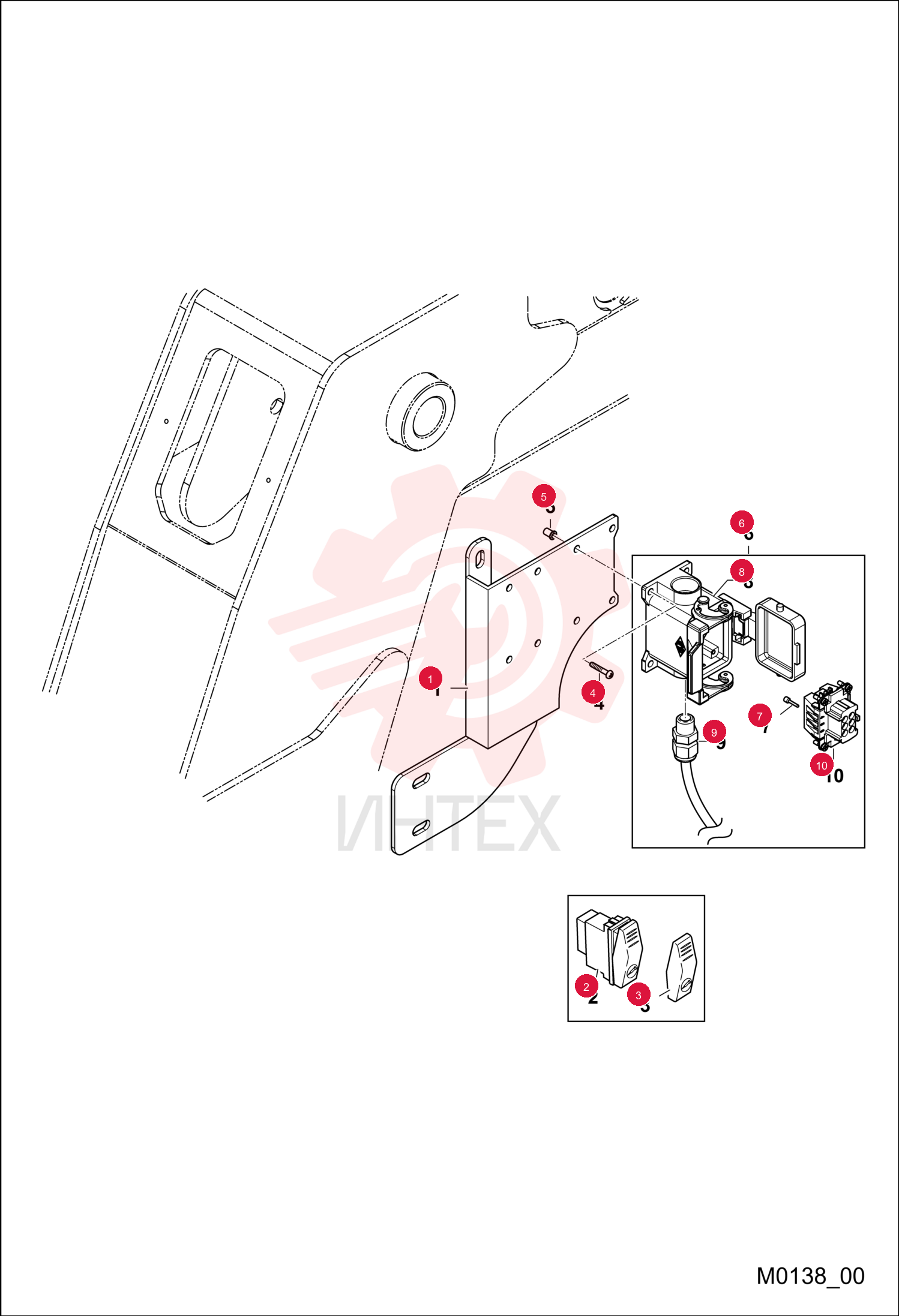

PLATE 7026914 (2)

PLATE 7026914 (2)

PLATE 7026914 (2)

1 7026914

  • 7026914 - PLATE

2 7027030

  • 7027030 - SWITCH

3 7014120

  • 7014120 - BUTTON
  • W/WARNING LIGHT

4 7018163

  • 7018163 - BOLT

5 7026807

  • 7026807 - INSERT
  • THREAD

6 7026930

  • 7026930 - PLUGS
  • CONTACT

7 7026694

  • 7026694 - UNIT
  • CONNECTING

8 7028528

  • 7028528 - HOUSING

9 7026664

  • 7026664 - GLAND
  • CABLE

10 7026730

  • 7026730 - SOCKET
  • ELECTRIC
