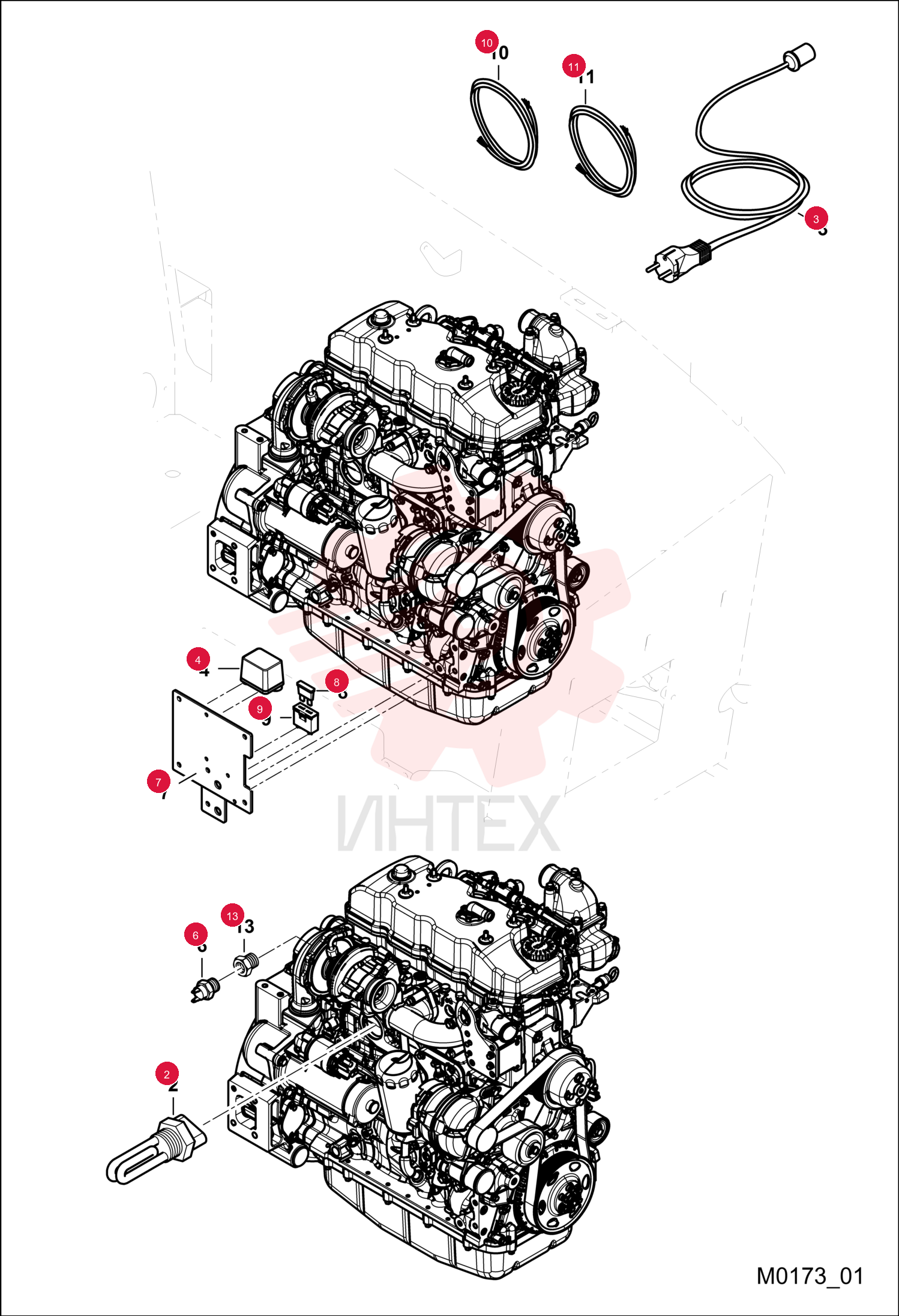

UNIT, HEATING 7026791

UNIT, HEATING 7026791

UNIT, HEATING 7026791

1 7026791

  • 7026791 - UNIT
  • HEATING

2 7026741

  • 7026741 - EXTENSION

3 7026943

  • 7026943 - RELAY

4 7027040

  • 7027040 - THERMOSTAT

5 7314477

  • 7314477 - PLATE

6 7019502

  • 7019502 - FUSE

7 7026765

  • 7026765 - BOX
  • FUSE

8 7312328

  • 7312328 - CABLE

9 7312329

  • 7312329 - CABLE

10 7314478

  • 7314478 - REDUCTION
