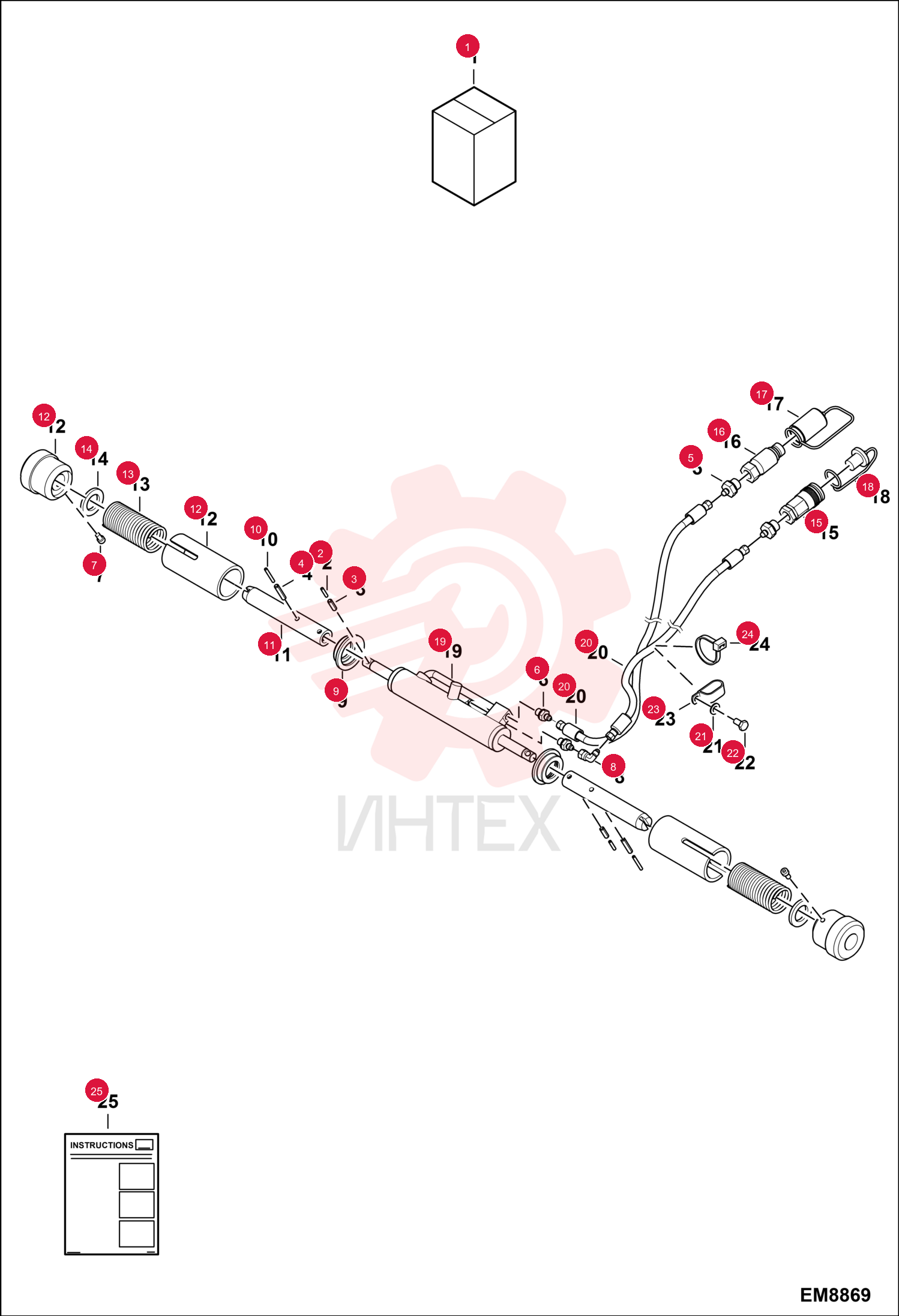

KIT, QUICK ATTACH INSTALLATION 6924738

KIT, QUICK ATTACH INSTALLATION 6924738

KIT, QUICK ATTACH INSTALLATION 6924738

1 6924738

  • 6924738 - KIT
  • QUICK ATTACH INSTALLATION

2 1JM5028

  • 1JM5028 - PIN

3 1JM8030

  • 1JM8030 - PIN ROLL HEAVY

4 1JM8045

  • 1JM8045 - PIN ROLL HEAVY

5 022375-27U

  • 022375-27U - UNION

6 022375-28V

  • 022375-28V - UNION

7 6GM816

  • 6GM816 - SCREW HEX SOCKT 10.9

8 72294-2

  • 72294-2 - ELBOW UNION

9 7224472

  • 7224472 - RING INNER

10 1JM5045

  • 1JM5045 - PIN ROLL HEAVY

11 7224468

  • 7224468 - PIN

12 7224469

  • 7224469 - TUBE

13 7224474

  • 7224474 - SPRING

14 92588-3

  • 92588-3 - WASHER

15 7225158

  • 7225158 - COUPLER

16 7225159

  • 7225159 - COUPLER

17 7225160

  • 7225160 - CAP

18 7225161

  • 7225161 - CAP

19 6916225

  • 6916225 - RAM
  • LOCKING

20 6926837

  • 6926837 - HOSE
  • HYD

21 65438-4

  • 65438-4 - HOSE ASSEM

22 000350-02V

  • 000350-02V - WASHER

23 4CM820

  • 4CM820 - SCREW HEX HD 8.8

24 31H42

  • 31H42 - CLIP

25 6624289

  • 6624289 - STRAP
  • TIE

26 6986820

  • 6986820 - INSTRUCTIONS
