Bobcat
/
V417
/

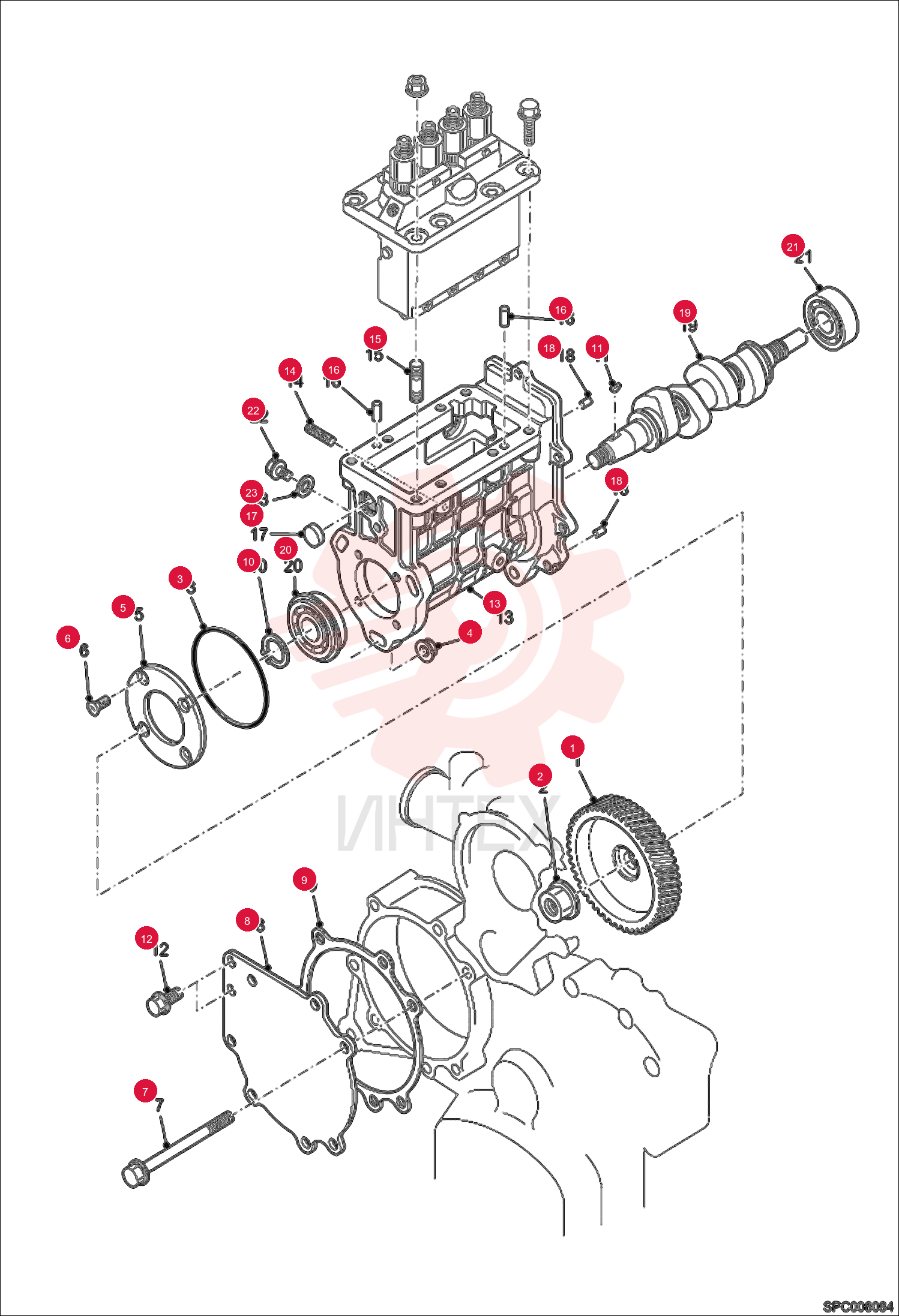

GEAR 6685946

GEAR 6685946

GEAR 6685946

1 6685946

  • 6685946 - GEAR

2 6680818

  • 6680818 - NUT

3 6680816

  • 6680816 - O-RING

4 6969819

  • 6969819 - NUT
  • FLANGE

5 6689289

  • 6689289 - RETAINER

6 6680678

  • 6680678 - SCREW

7 6680802

  • 6680802 - BOLT

8 6685947

  • 6685947 - COVER

9 6685948

  • 6685948 - GASKET

10 5JM20

  • 5JM20 - RING RTNG EXT HVY

11 6680813

  • 6680813 - KEY

12 6680801

  • 6680801 - BOLT

13 6680806

  • 6680806 - HOUSING

14 6680264

  • 6680264 - STUD

15 6598156

  • 6598156 - STUD

16 3974394

  • 3974394 - PIN

17 6680808

  • 6680808 - PLUG

18 6680809

  • 6680809 - PIN

19 6689309

  • 6689309 - CAMSHAFT

20 6689319

  • 6689319 - OPERATOR'S MANUAL

21 6680812

  • 6680812 - BEARING

22 6680662

  • 6680662 - BOLT

23 3974095

  • 3974095 - GASKET
  • METAL
