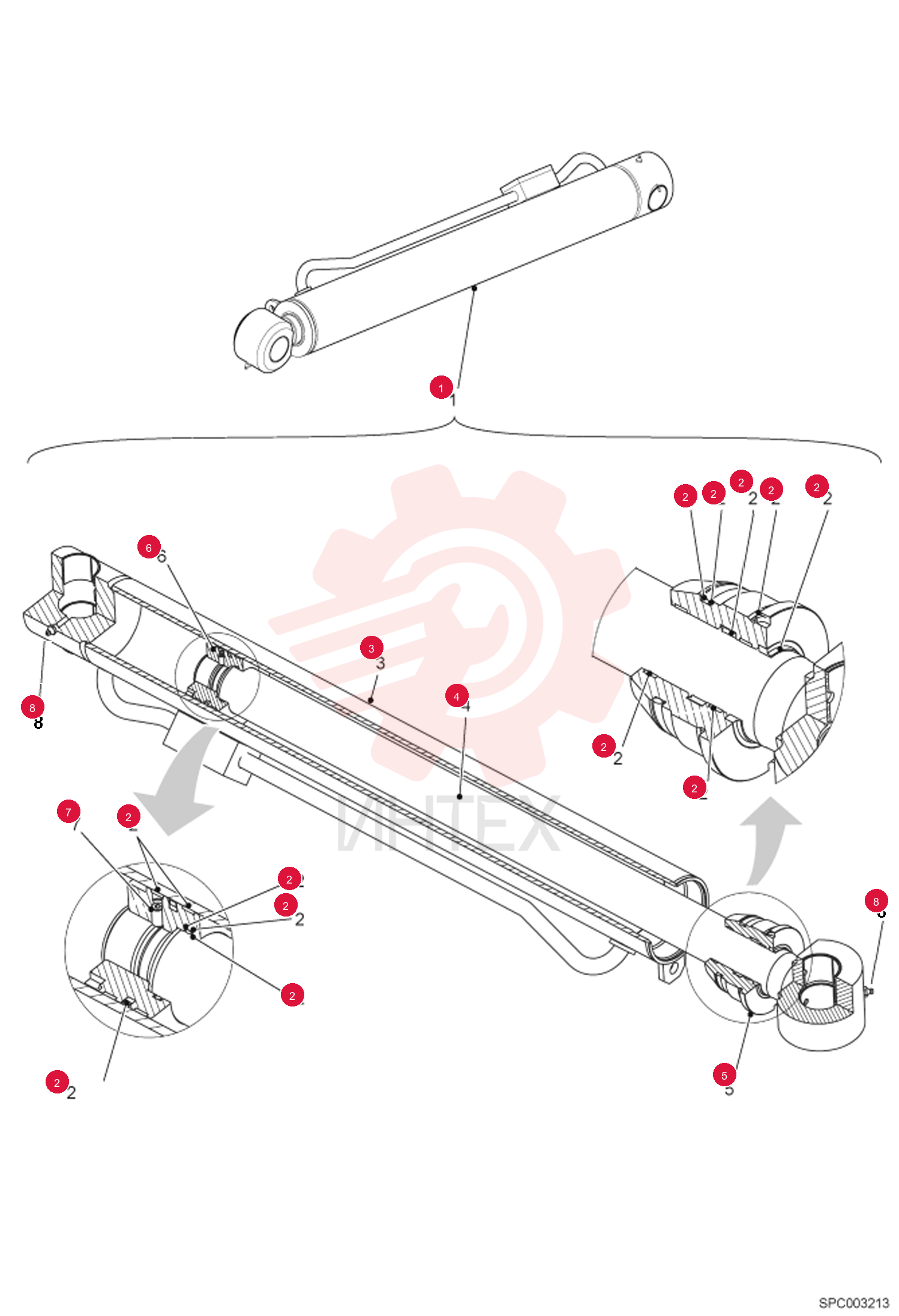

LIFTING RAM 6920427 (1)

LIFTING RAM 6920427 (1)

LIFTING RAM 6920427 (1)

1 6920427

  • 6920427 - LIFTING RAM

2 6921000

  • 6921000 - SET OF SEALS

3 6921001

  • 6921001 - RAM CYLINDER

4 6921002

  • 6921002 - RAM ROD

5 6921003

  • 6921003 - RAM HEAD

6 6921004

  • 6921004 - PISTON

7 6921005

  • 6921005 - SCREW

8 93683-1

  • 93683-1 - LUBRICATOR
